Installing The VSS2

You can install the VSS2 on any flat surface that has unobstructed access to the rear panel
connectors. The following describes how to set up and install the VSS2.

Connecting the Wiring

You can connect up to two video devices to the RCA plug-in connectors on the VSS2. Once
attached, you can connect up to two external sensing devices, a television manager, or a AMX
control system to the four-pin Sense out connector on the rear panel. The following describes how
to connect your video devices, external equipment, and the 12 VDC power supply

Video 1 and 2 connectors

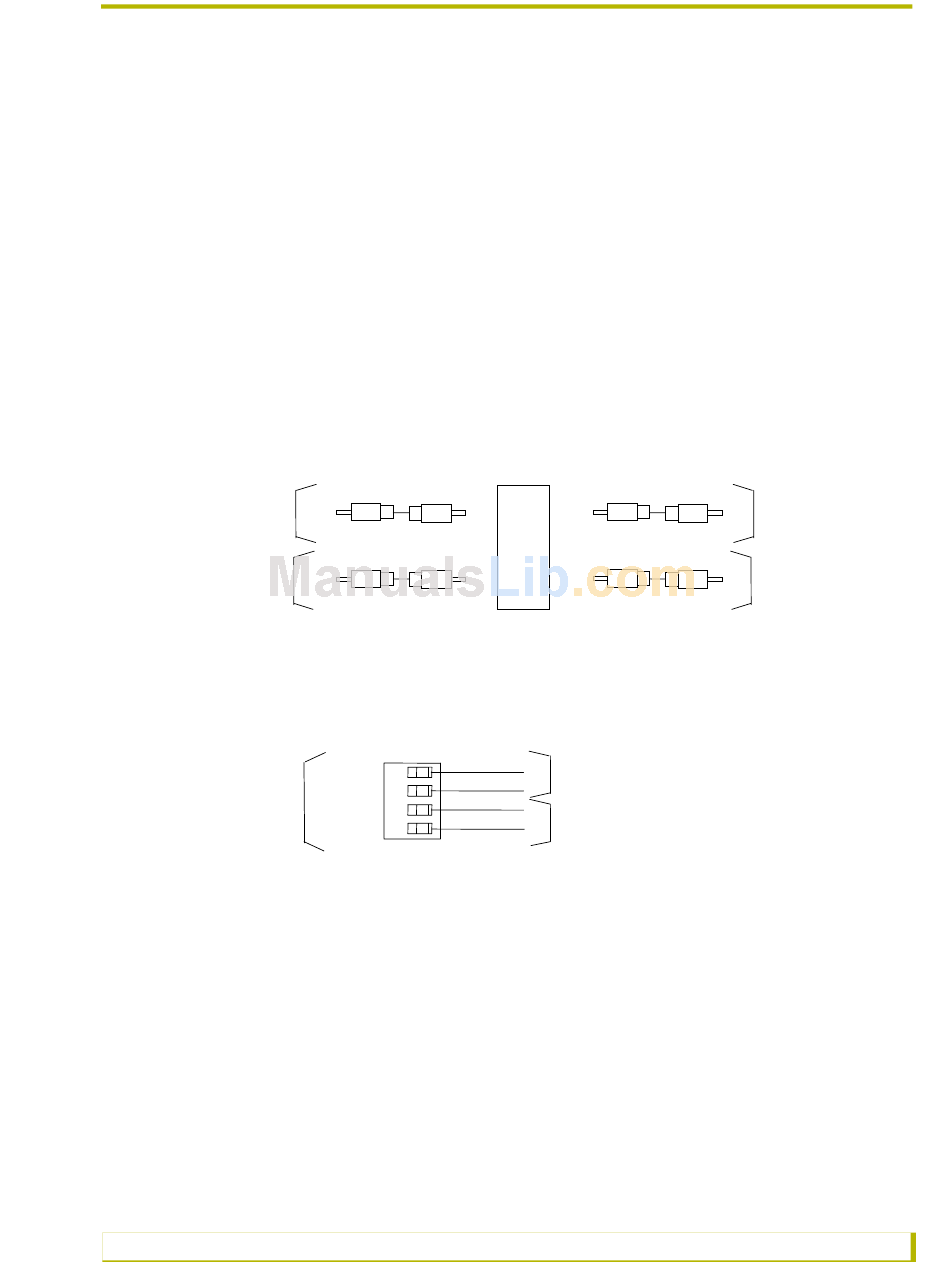

FIG. 4 shows how to connect your video devices to the Video 1 and 2 RCA plug-in connectors on
the rear panel.
Video
Source 1
Video
Source 2
FIG. 4 Video RCA connector diagram

Sense out connector

FIG. 5 shows how to connect two external video-sensing devices.
Sense out
connector
FIG. 5 External video sensing wiring diagram
VSS2 Video Sync Sensor
OUT IN
OUT IN
SENSE2
GND2
SENSE1
GND1
VSS2
Video
OUT
1
Video
OUT
2
Sense 2
Sense 1
Installing The VSS2
Video
Destination
IN
1
Video
Destination
IN
2
