Product Information

The AMX VSS2 Video Sync Sensor (Figure 1) is equipped with two independent channels to
detect video sync signals. The channels generate a logic-level output when a horizontal sync signal
is detected.
You can use the VSS2 for systems that require true power status for a VCR, tuner, or satellite
receiver. The VSS2 monitors the video output of each source and sends a logic signal to a AMX
input port in the AXCESS Central Controller. You can also use the logic signal output to control
AMX closure-driven peripherals such as a PC1 Power Controller. Since most video source
equipment generates blue screen video output when they are on, the VSS2 can sense true on and off
status.

Front Panel

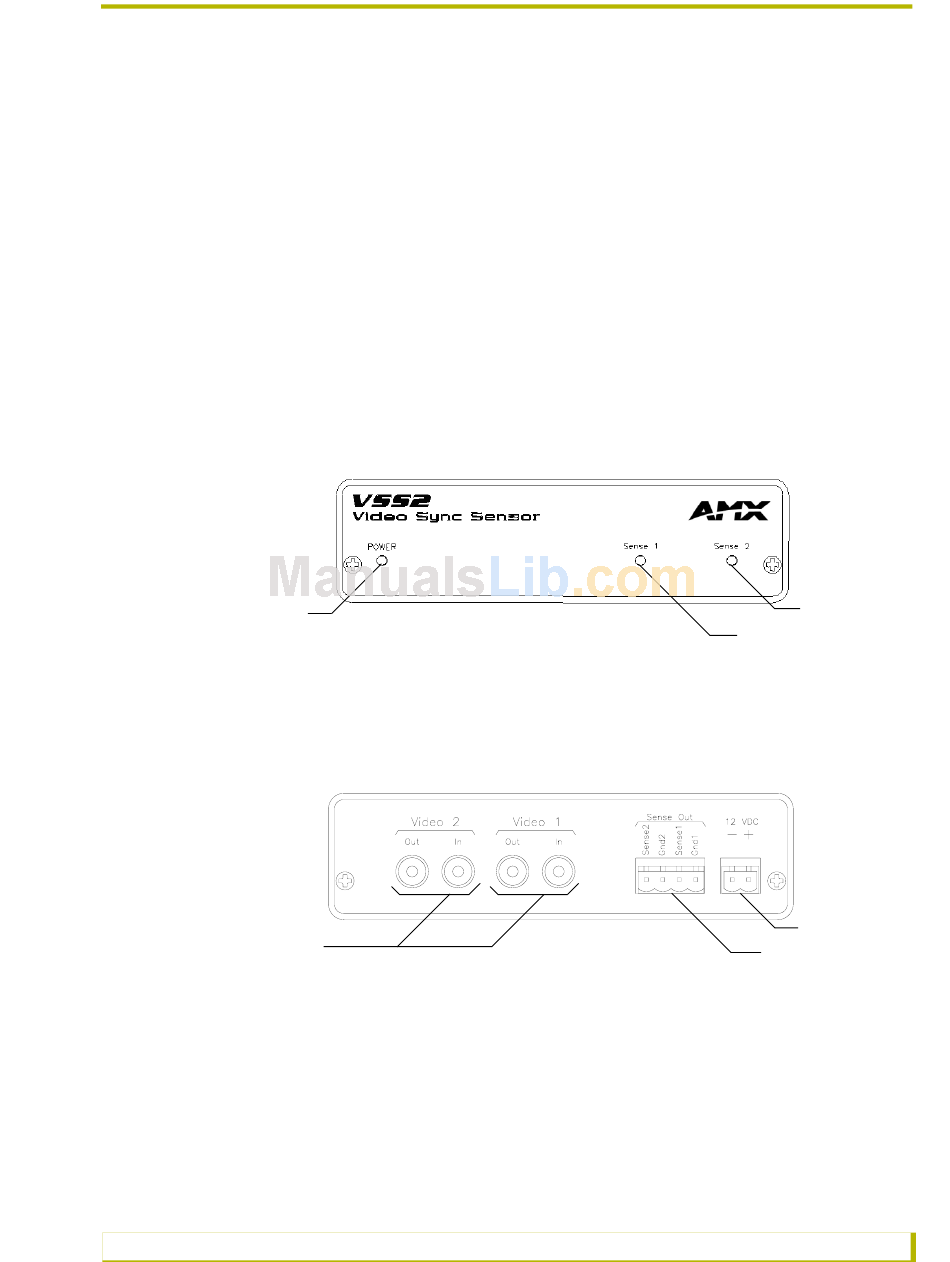

FIG. 1 illustrates the front panel of the VSS2.
Power LED
FIG. 1 Front Panel

Rear Panel

FIG. 2 illustrates the rear panel of the VSS2.
Video 1 and 2
connectors
FIG. 2 Rear Panel
VSS2 Video Sync Sensor
Product Information
Sense 2 LED
Sense 1 LED
12 VDC power
supply connector
Sense Out (output)
connector
