Overview
The Solecis AVS-SL-0201-834 (FG1330-1401-01) is a dual input PC interface
with audio. Known as the 'Xtra 2' because of its additional input for laptop,
visualiser or scaler. Switching between sources can be controlled from RS232,
the front panel, auto switching with priority or via contact closure connection.
Two simultaneous main outputs are available on both BNC and HD-15
connectors. The outputs are both 75 ohm driven with TTL sync restore for
connection to long cable runs. The audio inputs follow the video and are
converted to balanced or unbalanced outputs.
The AVS-SL-0201-834 may be used as a Single-Input Interface or a 2-Input
Switcher.

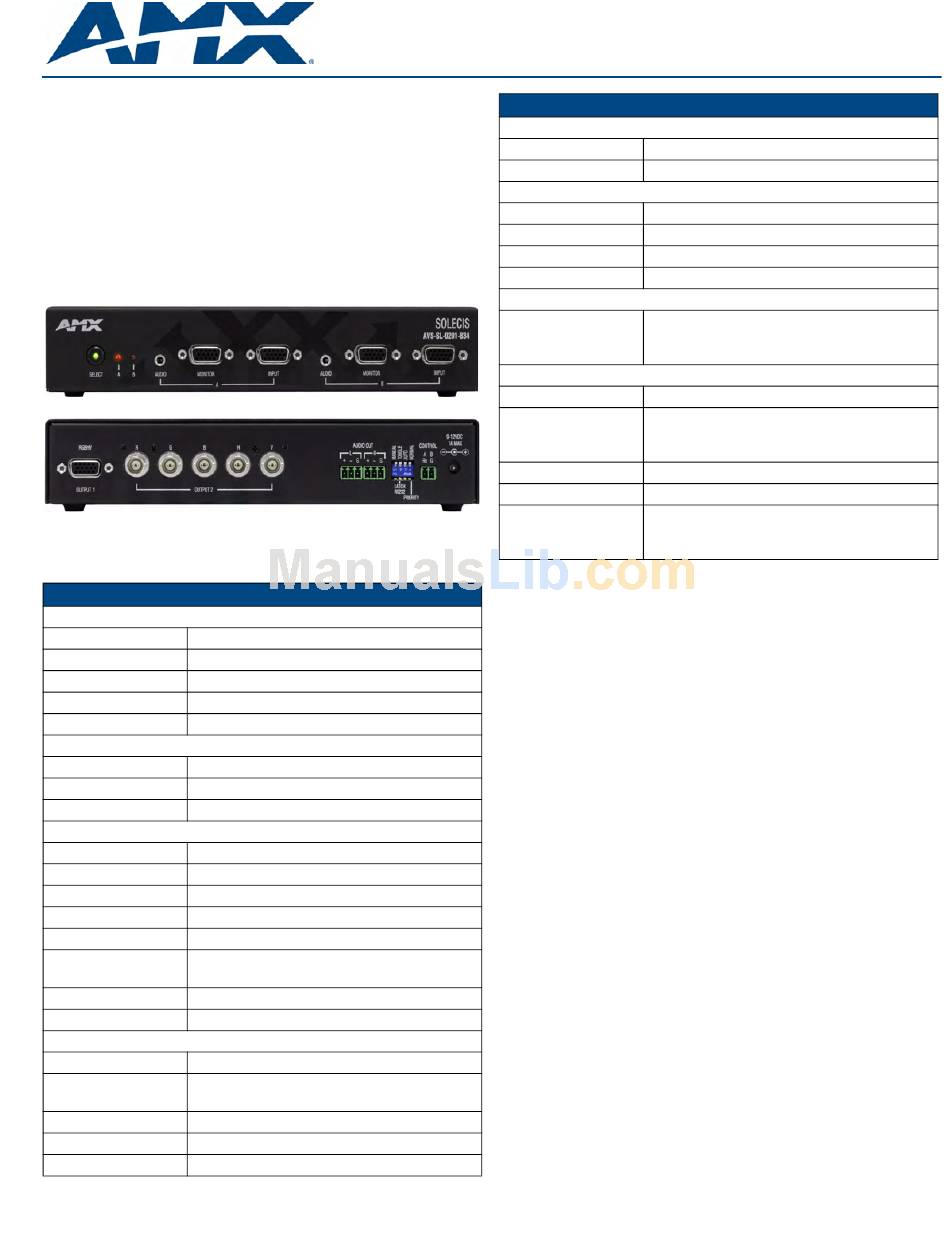

FIG. 1
Solecis AVS-SL-0201-834

Product Specifications

Solecis AVS-SL-0201-834 Specifications
RGB Input
Number:
2
Connectors:
HD-15
Level:
Analog
Max Level:
1V p-p
Impedance:
75 ohm
Sync Input
Type:
Analog or TTL
Max. Level:
5V p-p
Impedance:
470 ohm
Audio Input
Number:
2
Connector:
3.5mm stereo
Type:
Unbalanced analog
Max. Level:
2V p-p
Impedance:
47k ohm
RGB Video Bandwidth:
• Channel A - 250MHz -3dB
• Channel B - 250MHz -3dB RGB
RGB Return Loss:
-45dB@10MHz, -32dB@100MHz
Sync Processing:
None
RGB Output
Number:
2
Connectors:
• 5 x BNC
• 1 x HD-15
Level:
Analog
Gain:
Unity
Impedance:
75 ohm
Solecis
Solecis AVS-SL-0201-834 Specifications (Cont.)
Sync Output
Level:
Impedance:
Audio Output
Number:
Connectors:
Type:
Impedance:
(front)
Control
Switch
Power
Input Voltage:
Dimensions (HWD):
Weight:
Included Accessories:
Certifications:
(rear)
Safety Instructions
Please read these instructions before using your AMX Solecis device. Failure to
comply with these instructions could result in fire, electrical shock, personal injury,
death, or damage to the equipment.
Liquid Spills
Do not set drinks on top of the unit or immerse the unit in liquid.
Do Not Disassemble
This device contains no user serviceable parts. All servicing must be performed by a
qualified service technician.
For Safety Reasons
Do not place the unit on an unstable surface.
Do not use near water or sources of heat.
Use only recommended attachments.
Use the type of power supply as specified.
Unplug the power to the unit and refer servicing to qualified personnel under the
following conditions:
If liquid has been spilled or the unit has been exposed to rain or water.
If it does not operate normally when the operating instructions are followed or if it
exhibits a distinct change in performance indicating a need for service.
If the unit has been dropped or the cabinet damaged.
Computer Connections
Audio Connection
Connect the sound output from the Computer to the sound input corresponding
to the input the video signal is connected.
Use a 3.5m stereo jack cable.
Display Connection
The video signal from the unit outputs on BNC and HD-15.
Connect the output from the unit to the Input of a projector or monitor using
approved 75ohm coax cable.
The unit may be used to drive 2 display devices.
Installation Guide
AVS-SL-0201-834
TTL
75 ohm
2
Captive-wire (L/R)
Balanced/Unbalanced
600 ohm
• Contact closure
• Auto-switch
• Front panel RS232
9-12VDC
1.86" x 9.10" x 4.69" (47.2 mm x 231.1 mm x 119.1 mm)
• Height includes feet
• Depth includes connectors
2.9 lbs. (1.3 kg)
PS4.4 power supply (FG423-44)
• CE
• FCC class B, part 15
• RoHS/WEEE compliant
