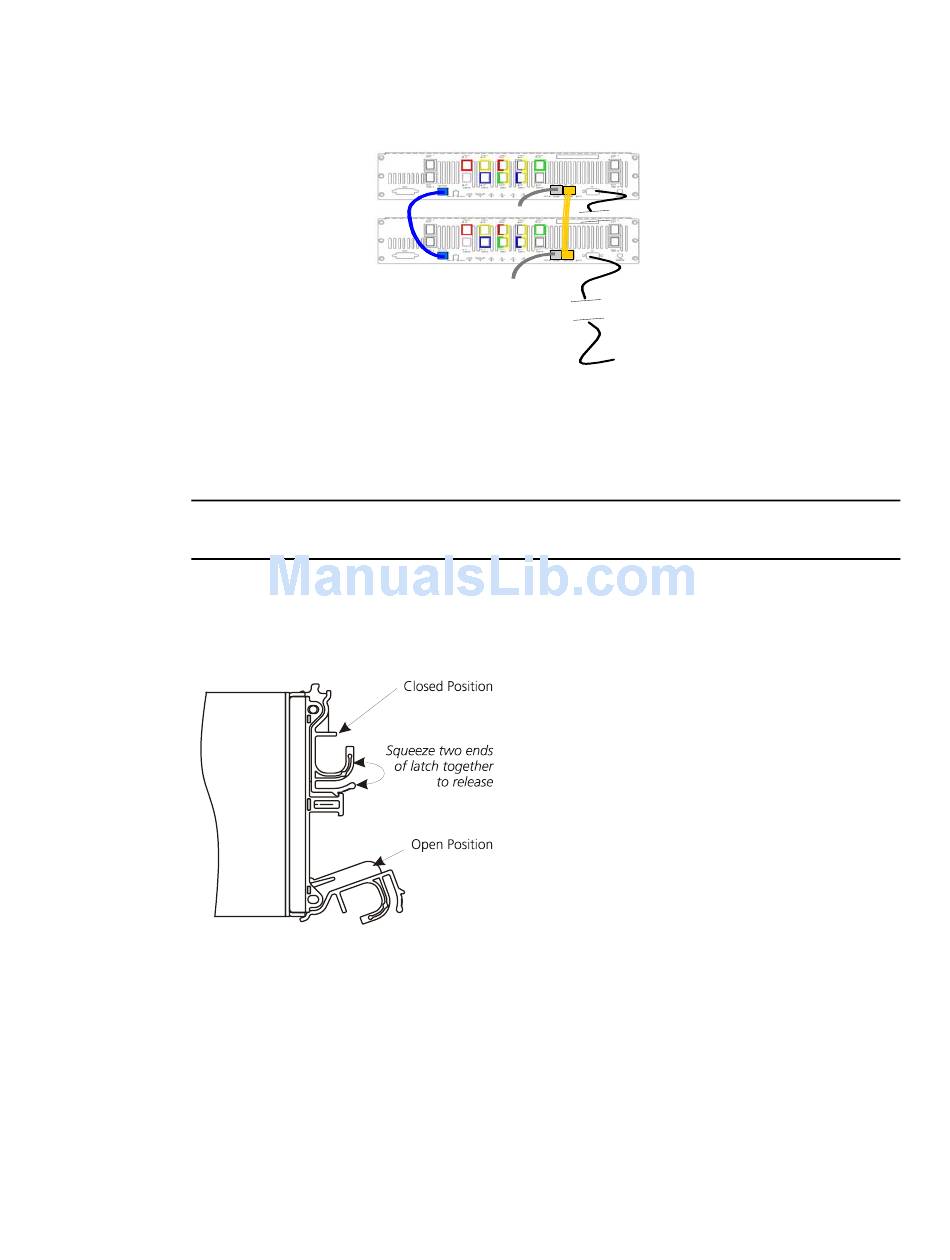

Figure 2–7 IBM System Storage DCS9550 Couplet Cabling
2.7
SCM I/O Module Installation
2.7.1

Procedure

Check for damage especially to the interface connector. Do not install if any pins are bent.
Figure 2–8
1
Install the module in rear Bay 3 of the enclosure (Figure 2–1).
2
With the latch in the open position (see Figure 2–8), slide the SCM module into the enclosure
until the latch engages automatically.
3
Cam the module home by manually closing the latches (see Figure 2–9). You should hear a
click as the latch engages.
IBM System Storage DCS9550 1S1 Storage Expansion Unit Installation, Service, and User Guide
Important
The SCM I/O modules must be installed in Rear Bay 3 and 4 location [see
Figure 2–1, "Module locations", on page
SCM Module Latch Operation
16].
Installation
23
