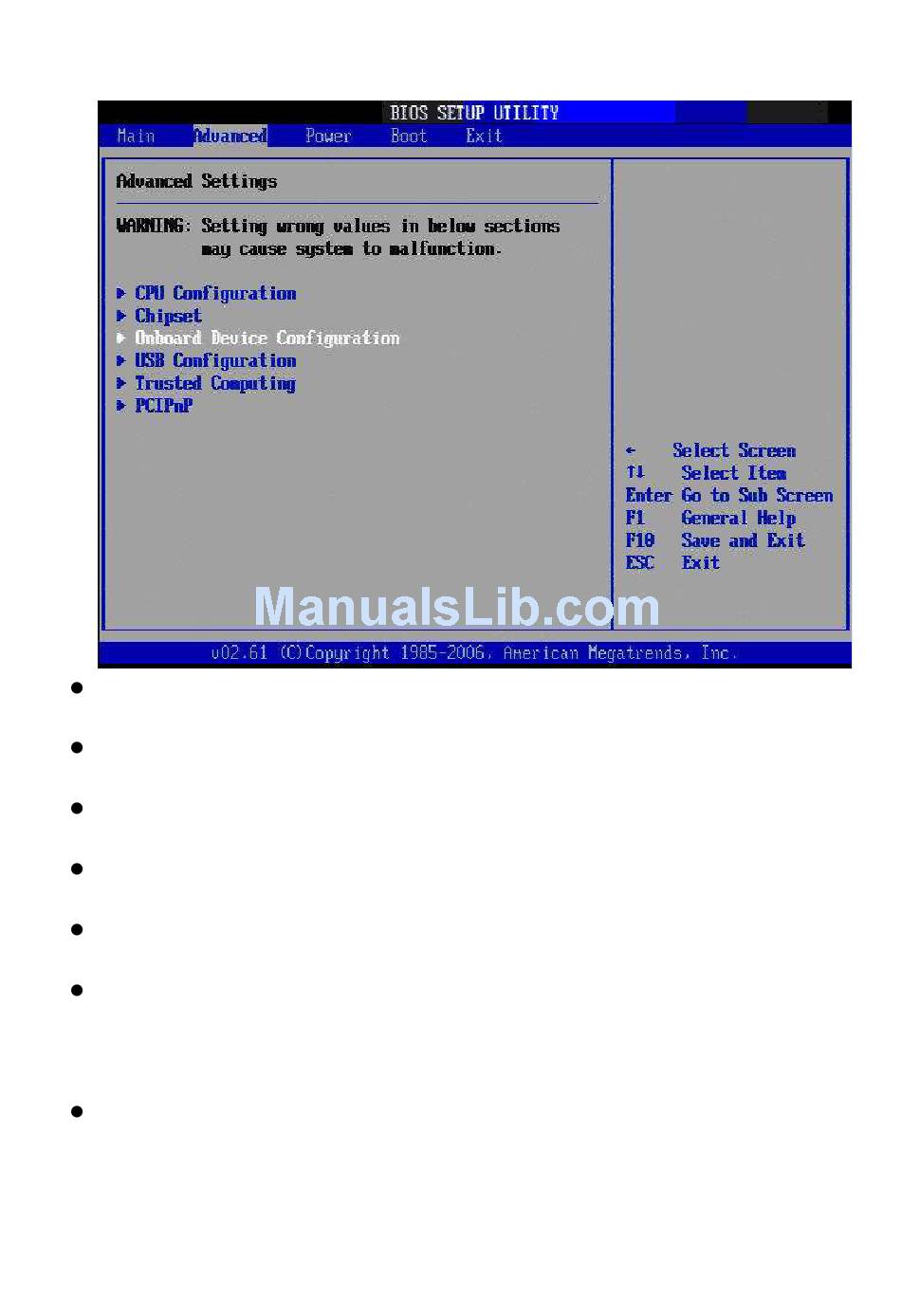

2.2.2.3 Onboard Device Configuration

SMBUS Controller The options: [Enabled], [Disabled]
HDA Controller The options: [Enabled], [Disabled]
Onboard Rtl8111 LAN The options: [Enabled], [Disabled]
Onboard LAN Boot The options: [Enabled], [Disabled]
Mini PciE Port The options: [Enabled], [Disabled]
Serial Port1 Address [3F8/IRQ4]
Allow you to select the Serial Port1 base address.
Configuration options: [Disabled] [3F8/IRQ4] [3E8/IRQ4] [2E8/IRQ3].
Serial Port2 Address [2F8/IRQ3]
Allow you to select the Serial Port1 base address.
Configuration options: [Disabled] [2F8/IRQ3] [3E8/IRQ4] [2E8/IRQ3].
