ENX-PNV
1.7.2

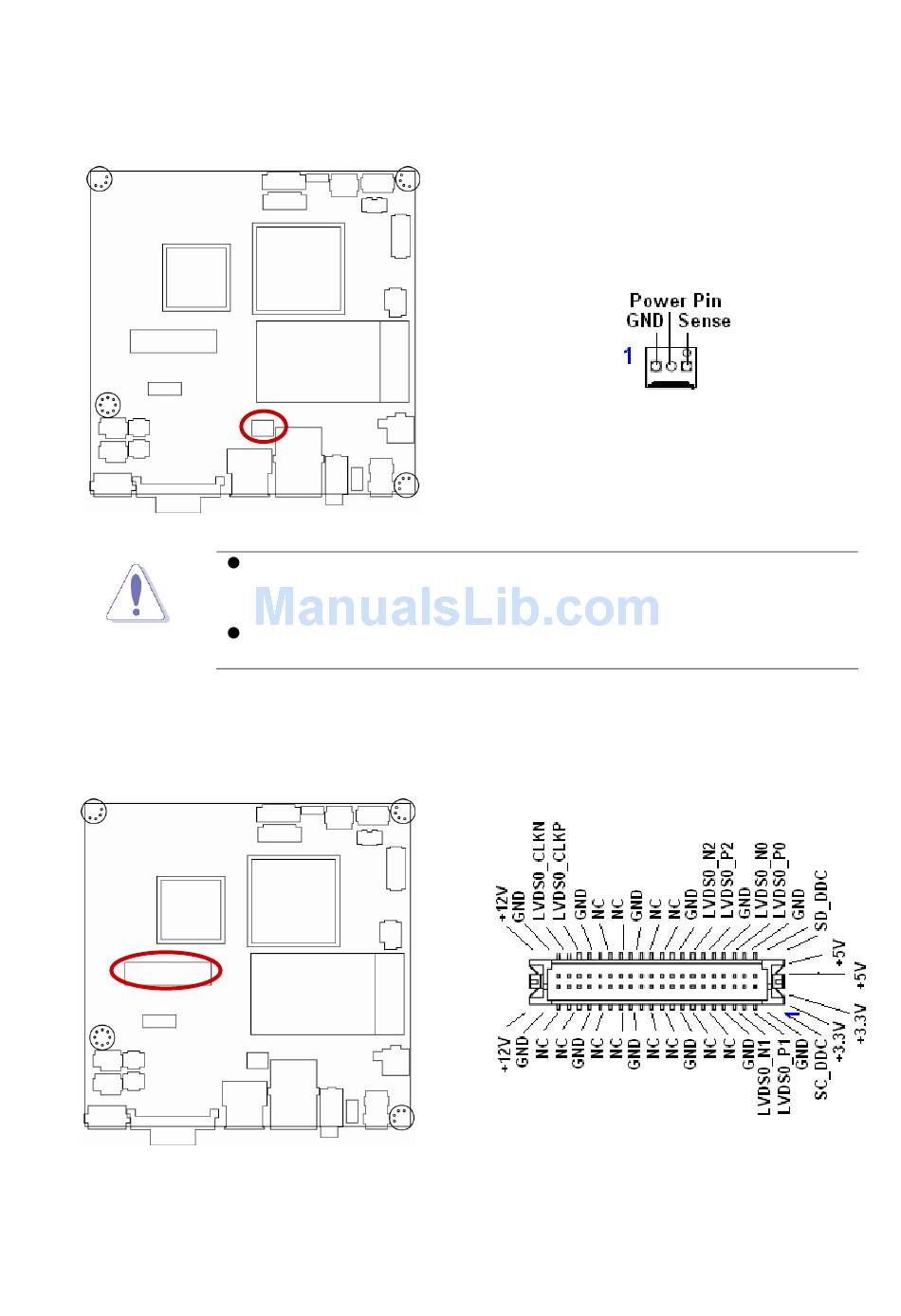

CPU Fan Connector (FAN1)

This connector supports 12V smart fan for onboard heat-sink.
1.7.3

LVDS Connector (JLVDS)

This motherboard supports 18-bit single channel LVDS panel.
22
Do not forget to connect the fan cable to the fan connector.
Insufficient air flow inside the system may damage the
motherboard components.
This is not a jumper! DO NOT place a jumper cap on the fan
connector.
Data Modul AG - www.data-modul.com
