RD68 VHF

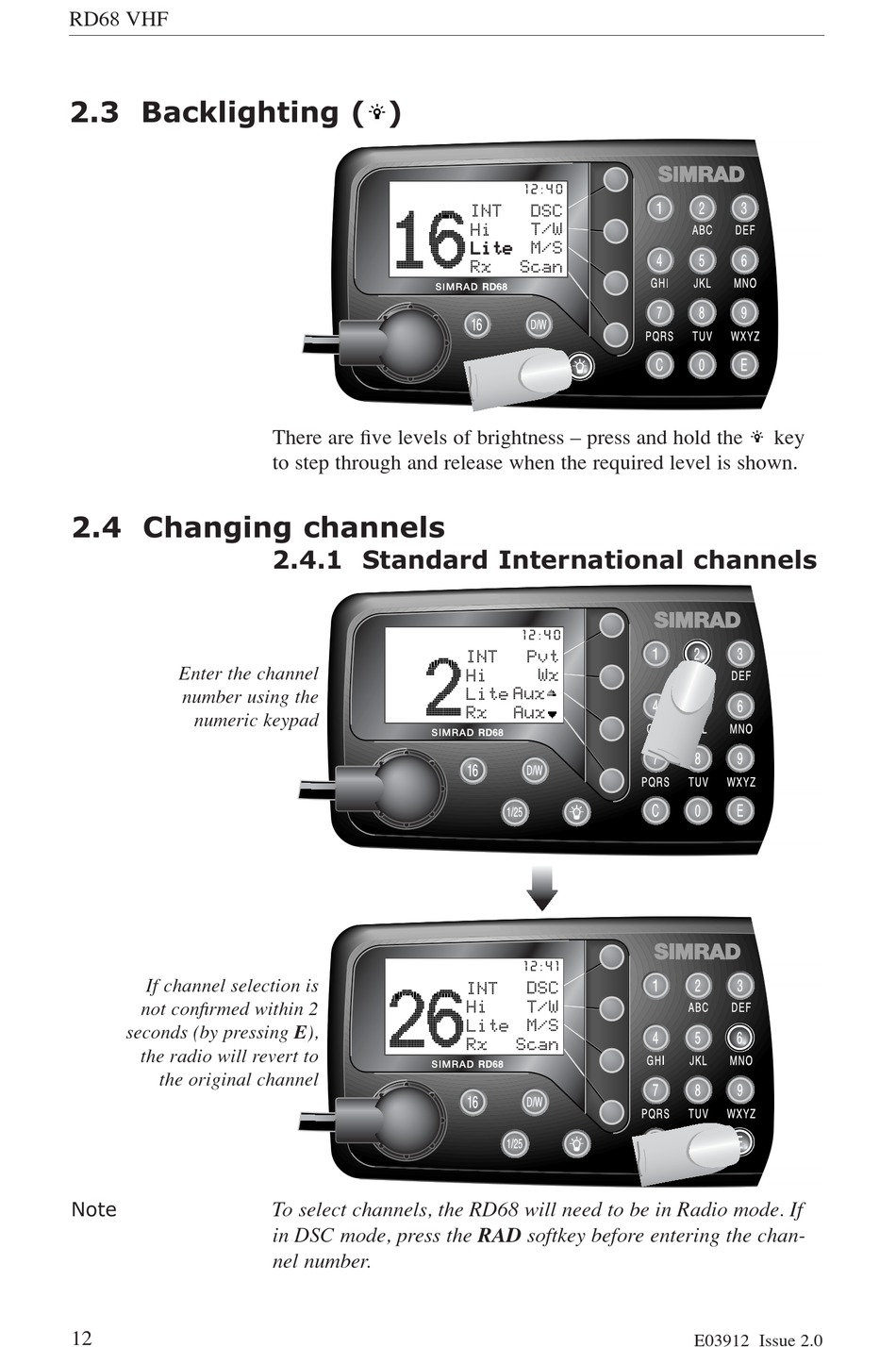

2.3 Backlighting ( )

2.4 Changing channels

Enter the channel
number using the
numeric keypad
If channel selection is
not confirmed within 2
seconds (by pressing E),
the radio will revert to
the original channel
Note
12
There are five levels of brightness – press and hold the
to step through and release when the required level is shown.

2.4.1 Standard International channels

To select channels, the RD68 will need to be in Radio mode. If
in DSC mode, press the RAD softkey before entering the chan-
nel number.
1 2 : 4 0
DSC
INT
Hi T/W
L L i i t t e e M/S
Rx Scan
1 2 : 4 0
Pvt
INT
Hi Wx
Lite Aux
Rx Aux
1 2 : 4 1
DSC
INT
Hi T/W
Lite M/S
Rx Scan
key
E03912 Issue 2.0
