Simrad RS90S Quick Start Manual

Handset parts

1.
Red distress cover with DISTRESS button beneath
2.
Screen
3.
PTT button
4.
Volume control
5.
Function keys
6.
Keypad (wired handsets only).

Handset control buttons

1. Short press for AIS menu. Long press for Intercom /
Hailer mode.
2.
Press to select the priority channel.
3. Short press for Exit key. Long press for power on/off.
4.
Squelch keys. Also used for moving cursor left/right.
5.
Three favourite channel key.
6.
Short press for weather station (US models).
Long press for Navigation mode.
7.
Change channel, or scroll menu options.
8.
Short press for [OK] key. Long press to toggle high/low power.
9. Short press for DSC menu. Long press for menu.
10. Short press to start dual-watch or tri-watch mode.
Long press to start scanning channels.
RS90S Blackbox VHF
Quick Start Guide

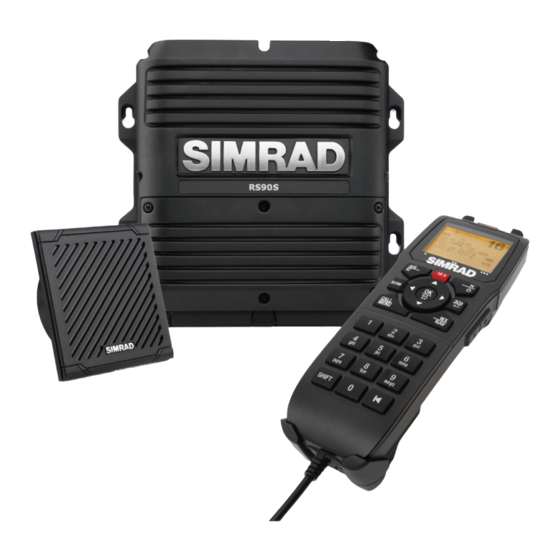

The Simrad RS90S VHF radio is a comprehensive
solution for marine VHF radio applications.
The radio comprises:
RS90S VHF transceiver.
One wired handset as standard, and optionally up
to 3 more wired handsets. (Maximum of 4 wired
handsets in total.)
Up to 2 optional wireless handsets.
Up to 4 optional external speakers.
1
2
3
6
2
1
10
8
9
RS90S | QuickStart Guide - EN
EN
4
5
3
4
5
7 6
|
1
