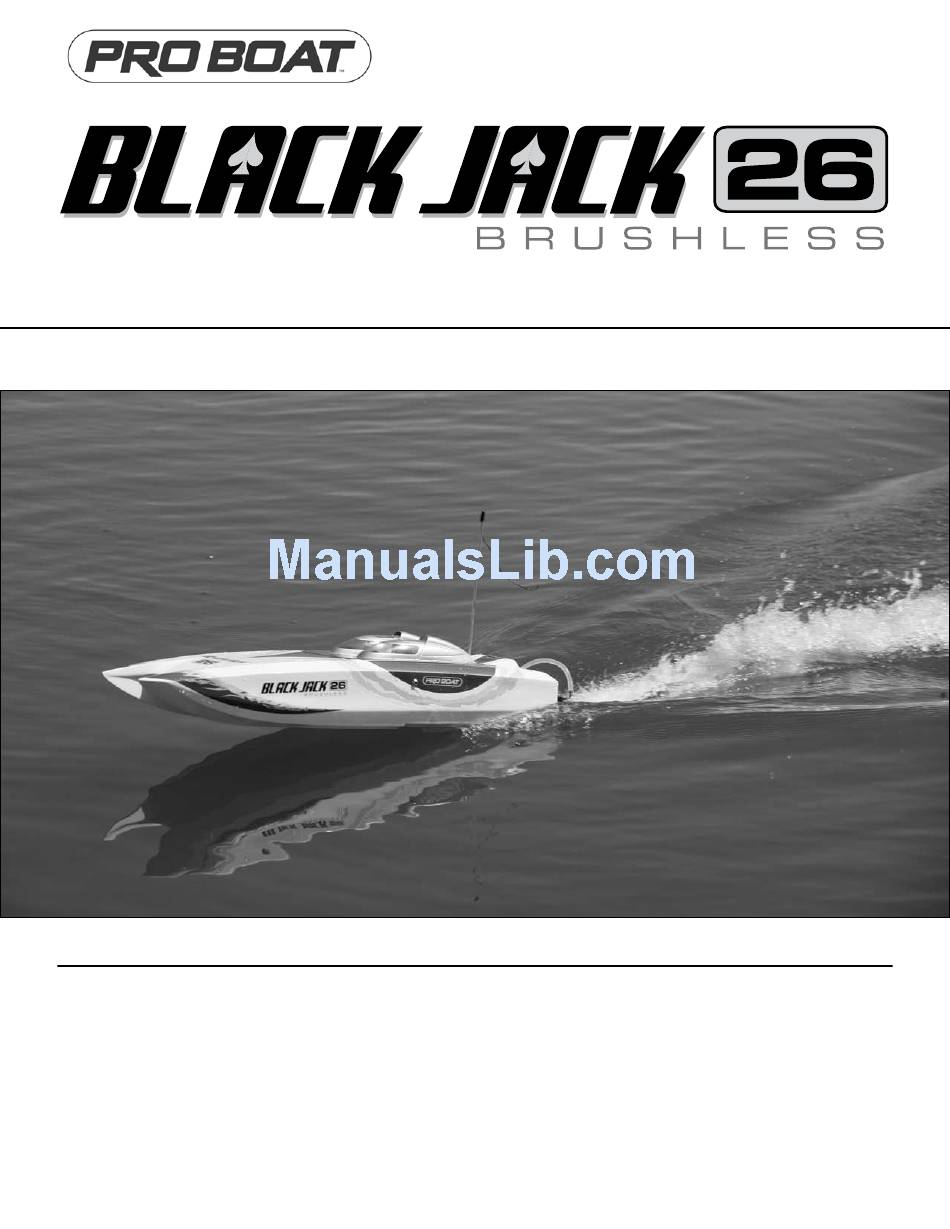

Blackjack 26 Brushless EP Catamaran Boat
Owners Manual
Specifications
Hull Length ................................................................................26.75 in (679mm)
Beam ........................................................................................8.375 in (213mm)
Motor ............................... Water-cooled Hi-performance A3630-1500 Brushless Motor
Radio System............................................................ Pro Boat AM 27MHz Pistol-grip
Drive System ......................................................................................Direct Drive
Steering System ..................................................................Steerable Drive System
Speed Control .................................................. Water-cooled 45-Amp Brushless ESC
www.ProBoatModels.com
Advertisement
Table of Contents
Related Manuals for Pro Boat Blackjack 26 Brushless
Summary of Contents for Pro Boat Blackjack 26 Brushless
-
Page 1: Owners Manual
Blackjack 26 Brushless EP Catamaran Boat Owners Manual Specifications Hull Length ................26.75 in (679mm) Beam ..................8.375 in (213mm) Motor ....... Water-cooled Hi-performance A3630-1500 Brushless Motor Radio System............Pro Boat AM 27MHz Pistol-grip Drive System ..................Direct Drive Steering System ..............Steerable Drive System Speed Control .......... -
Page 2: Table Of Contents
Introduction The Blackjack 26 Brushless EP comes Thank you for purchasing the Pro Boat ™ Ready-To-Run with the Pro Boat Blackjack ™ 26 Brushless EP Ready-To- 27MHz AM radio system and electronic Run boat. Please read these instructions speed controller already installed. All... -
Page 3: General Guidelines
With proper care and run. maintenance, you will be able to proudly If at any time while operating your model enjoy your Blackjack 26 Brushless you sense any abnormal function, end Catamaran for many years to come. your operation immediately. Do not... -
Page 4: Inspection
Inspect the boat to make sure no damage is present. Contents • Assembled Blackjack 26 Brushless EP RTR • Pro Boat radio transmitter • Boat stand Section 1: Assembling the Boat Stand Attach the side stand pieces by interlocking them into the end pieces as shown. -
Page 5: Section 2: Installing The Transmitter Batteries
Section 2: Installing the Transmitter Batteries Install 8 “AA” alkaline batteries into the transmitter, following the instructions provided for your radio system. Section 3: Installing the 7.2V Ni-MH Battery Packs Pro Boat offers a charge adapter Carefully remove the hatch from the hull. (PRB3312) to allow you to charge the PRB3313 and PRB3314 batteries with Deans connectors with conventional... -
Page 6: Section 4: Adjusting The Transmitter
Throttle Trim Section 5: Handling Adjustment Operate your Blackjack 26 Brushless You may also turn the dual rate dial down EP in low to medium wake conditions to reduce rudder travel in rough water to avoid having problems with the conditions. -
Page 7: Section 6: Checking The Radio System
Section 6: Checking the Radio System Ensure the antenna tube is properly placed through the hull. It may be necessary to slightly pull the antenna tube out to make certain the radio range is sufficient. Left Turn The ESC will beep until you give full throttle input. -
Page 8: Section 7: Testing Your Boat In The Water
Be certain to avoid all objects in the battery before heading out again. water at all times. Section 8: Speed Control Programming The ESC in your Blackjack 26 Brushless Note: Do not turn off the EP is pre-programmed from the factory. transmitter first or the receiver... -
Page 9: Section 10: Lubricating The Drive Shaft
Section 10: Lubricating the Drive Shaft Lubricating the flexshaft is vital to the 3. Move the rudder assembly and slide life of the drivetrain. The lubricant also the drive shaft out of the stuffing box. acts as a water seal, keeping water from entering the hull through the stuffing box. -
Page 10: Section 11: Identification Of Components
Section 11: Identification of Components PRB2226 PRB3310 PRB3304 PRB2068 PRB2064 PRB0151 PRB2812 PRB2224 PRB3302 PRB2218 PRB3301 PRB2815 PRB2064 PRB3306 Section 12: Warranty Information Warranty Period Horizon Hobby, Inc., (Horizon) warranties that the Products purchased (the “Product”) will be free from defects in materials and workmanship at the date of purchase by the Purchaser. - Page 11 If you as the Purchaser or user are not prepared to accept the liability associated with the use of this Product, you are advised to return this Product immediately in new and unused condition to the place of purchase. Law: These Terms are governed by Illinois law (without regard to conflict of law principals). Safety Precautions This is a sophisticated hobby Product and not a toy.
-
Page 12: Section 13: Replacement Parts
Section 13: Replacement Parts If you have any questions concerning the setup or running of your Blackjack 26 Brushless EP boat, please call the Horizon Service Center toll-free at (877) 504-0233. PRB2064 Turn Fin (2) PRB3302 Hatch PRB2068 Water Outlet PRB3303 Radio Box PRB0151...
