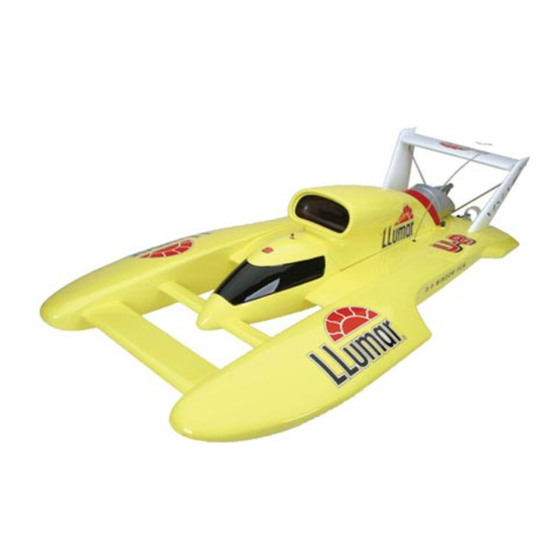

Pro Boat Miss LLumar Owner's Manual

1/12-scale rtr nitro unlimited hydroplane
Hide thumbs Also See for Miss LLumar:
Table of Contents

Advertisement

Quick Links

Download this manual

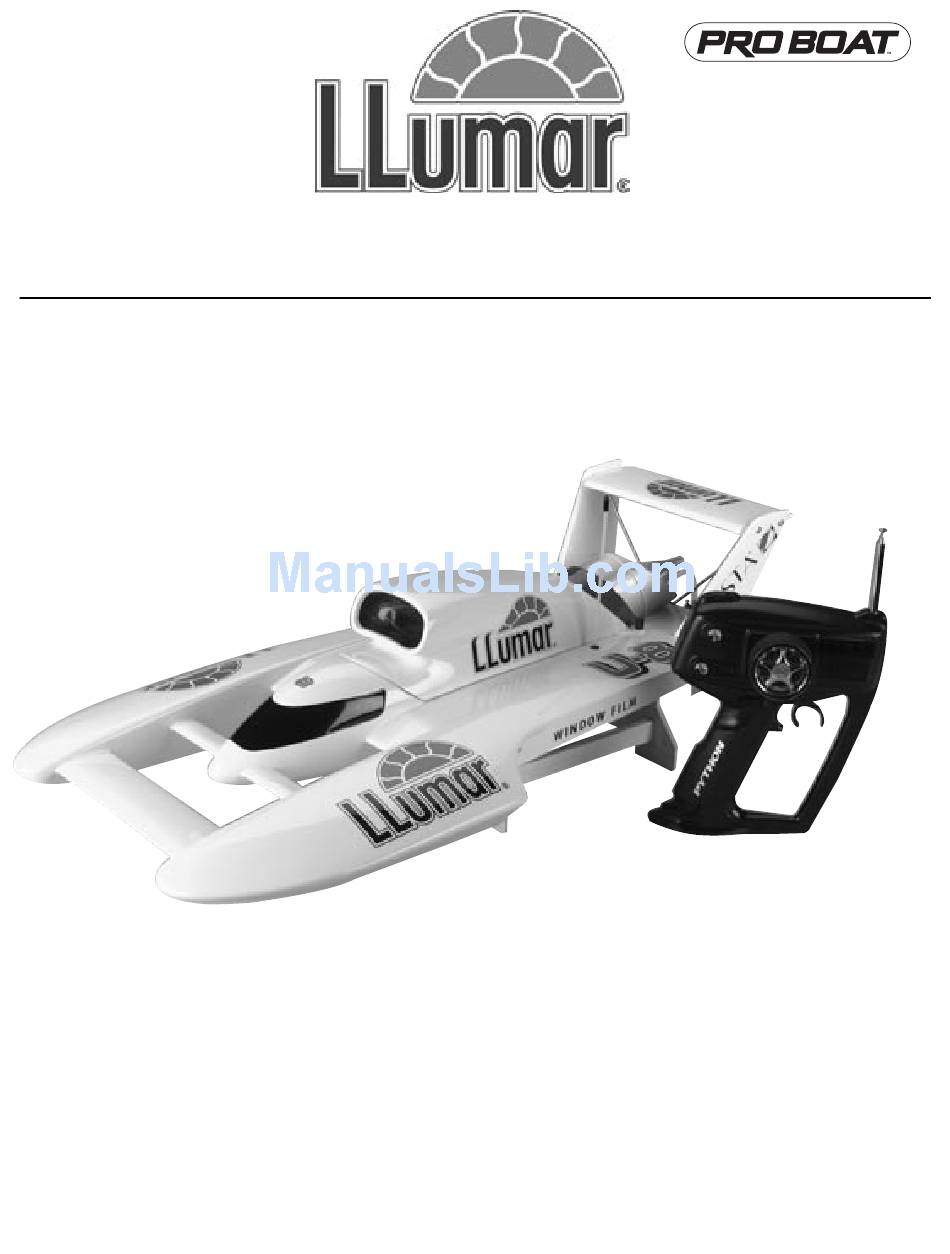

Miss LLumar
1/12-Scale RTR Nitro Unlimited Hydroplane
Owner's Manual
Specifications
Overall Length ............................................................................................ 27.5 in (698.5mm)
Beam .............................................................................................................. 14 in (355.6mm)
Engine ................................................................................................ DYN .15 Marine w/Recoil
Radio System ........................................................................................ JR AM 75MHz Python

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Miss LLumar and is the answer not in the manual?

Questions and answers

Related Manuals for Pro Boat Miss LLumar

Summary of Contents for Pro Boat Miss LLumar

  • Page 1 Miss LLumar 1/12-Scale RTR Nitro Unlimited Hydroplane Owner’s Manual Specifications Overall Length .................... 27.5 in (698.5mm) Beam ......................14 in (355.6mm) Engine ....................DYN .15 Marine w/Recoil Radio System ..................JR AM 75MHz Python...

  • Page 2: Table Of Contents

    It is very important that you operate this boat responsibly. With proper Unlimited Hydroplane. You are just minutes from one of the most care and maintenance, you will be able to enjoy your Miss LLumar for thrilling experiences that the radio control hobby has to offer.

  • Page 3: Additional Required Items

    Additional Required Items Although the Miss LLumar comes fully assembled and ready for action, you will need a few tools to get your boat ready to run: Blue Thunder 20% Fuel (quart) (DYN2320) 500cc Fuel Bottle (DYN2003) or Fast Tap Quart Bottle Spout (DYN2009)

  • Page 4: Section 1: Installation Of Receiver And Transmitter Batteries

    Section 1: Installation of Receiver and Transmitter Batteries Receiver Batteries Remove the clear lid that covers the radio box. Remove the two knurled aluminum nuts that secure the cockpit as shown. Pull the cockpit off the boat. Carefully note how the exhaust system is assembled. Use a 2.5mm Allen wrench to remove the tuned pipe mount as shown above.
  • Page 5 Section 1: Installation of Receiver and Transmitter Batteries (cont.) Re-install the tuned pipe mount. Transmitter Batteries Remove the transmitter from the box. Re-install the battery holder back into the radio box and properly seal the radio box with clear tape. Failure to properly seal the radio box could result in damage to your radio equipment.

  • Page 6: Section 2: Turn Fin

    The Miss LLumar comes with the turn fin installed on the right Do not attempt to make tight left hand turns (counterclockwise), sponson. You will want you run the Miss LLumar in an oval and in or you could easily flip the boat. If you need to make a left turn, an area that will allow you to make right turns (clockwise).

  • Page 7: Section 5: The Dynamite .15 Marine Engine

    Section 5: The Dynamite .15 Marine Engine (cont.) You may have to "blip" the throttle on the transmitter (applying Note: It is common for an ABC engine to go through a glow plug throttle on/off) while trying to start the engine. New engines are or two during break-in.

  • Page 8: Section 6: Maintenance

    Section 6: Maintenance Lubrication It is important to lubricate the flex shaft of the Miss LLumar with silicone cable grease after every two hours of operation. Do not forget to do this. You can purchase this silicone grease at your local hobby store.

  • Page 9: Section 6: Maintenance

    Section 6: Maintenance (cont.) Liberally lubricate the entire length of the flex shaft with Loosen the 2 manifold bolts with your 2.5mm Allen wrench. silicone cable grease as shown. Next insert your Allen driver into the hole located on the fly- wheel to lock the crankshaft in place.

  • Page 10: Section 7: Miss Llumar Replacement Parts

    Section 7: Miss LLumar Replacement Parts In the event that you need to purchase replacement parts for your engine or the Miss LLumar, please see your local hobby store. You can also purchase them from Horizon Hobby by calling 1-800-338-4639 or shop online @ www.horizonhobby.com...
  • Page 11 ™ Look for these other fine Pro Boat models at your local hobby dealer. • Professionally painted and detailed fiberglass hull • Speeds up to 30 mph • JR XR3i FM pistol-grip radio system installed • Water-cooled Dynamite ® • Professionally painted and decaled fiberglass hull .15 marine nitro engine...

  • Page 12: Notes

    Notes MADE IN CHINA © 2004 Horizon Hobby, Inc. www.horizonhobby.com 6939...
