Positioning the projector

To determine where to position the projector, consider the size and shape of your
screen, the location of your power outlets, and the distance between the
projector and the rest of your equipment. Here are some general guidelines:
• Position the projector on a flat surface at a right angle to the screen. IN2124a
must be at least 45.3" (1.2m) from the projection screen, and IN2126a must
be at least 55.4" (1.4m) from the projection screen.
• If you are installing the projector on the ceiling, we strongly recommend using
InFocus approved ceiling mounts for proper fitting, ventilation and installation.
Refer to the installation guide that comes with the InFocus Ceiling Mount Kit
(p/n PRJ-MNT-UNIV) for more information. The warranty does not cover
any damage caused by use of non-approved ceiling mount kits or by installing
in an improper location. To turn the image upside down, see "Ceiling mount"
on page 28. We recommend using an InFocus authorized ceiling mount.
• Position the projector the desired distance from the screen. The distance
from the lens of the projector to the screen and the video format determine
the size of the projected image.
Model Minimum Distance to Screen
IN2124a 45.3"/1.2m
IN2126a 55.4"/1.4m

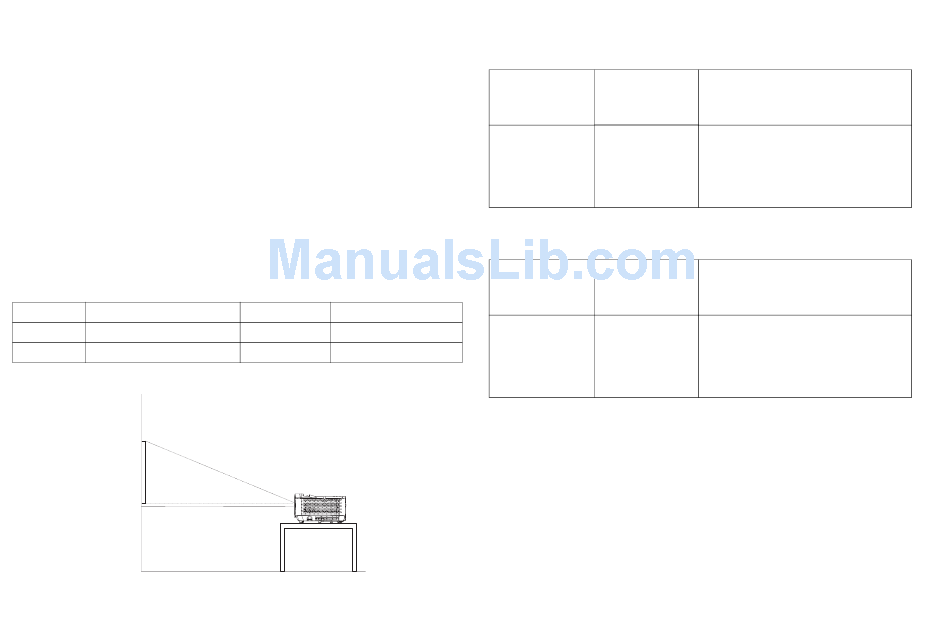

60 inches
high image
bottom of image 9
inches above center
lens center
of lens
Offset Offset for 60in. Image
15%+-5% 9"/22.9cm
13%+-5% 7.8"/19.8cm
Projection angle
Table 1: IN2124a (XGA) Screen size
Throw Ratio = 1.9 to 2.2
Size of the
Diagonal Screen Projected Image
Size (inches/m) Width
(inches/m)
40"/1.0m 32"/0.8m
60"/1.5m 48"/1.2m
80"/2.0m 64"/1.6m
100"/2.5m 80"/2.0m
150"/3.8m 120"/3.0m
Table 2: IN2126a (WXGA) Screen size
Throw Ratio = 1.9 to 2.2
Size of the
Diagonal Screen Projected Image
Size (inches/m) Width
(inches/m)
45"/1.1m 38"/1.0m
60"/1.5m 51"/1.3m
80"/2.0m 68"/1.7m
100"/2.5m 85"/2.2m
150"/3.8m 128"/3.2m
7
Distance to screen
Minimum distance Maximum distance
(inches/m) (inches/m)
62"/1.6m 69"/1.7m
94"/2.4m 103"/2.6m
125"/3.2m 137"/3.5m
156"/4.0m 172"/4.4m
234"/5.9m 257"/6.5m
Distance to screen
Minimum distance Maximum distance
(inches/m) (inches/m)
55.4"/1.4m 69.3"/1.8m
74.5"/1.9m 92.9"/2.4m
100.0"/2.5m 124.4"/3.2m
125.5"/3.2m 155.8"/4.0m
189.2"/4.8m 234.6"/6.0m
