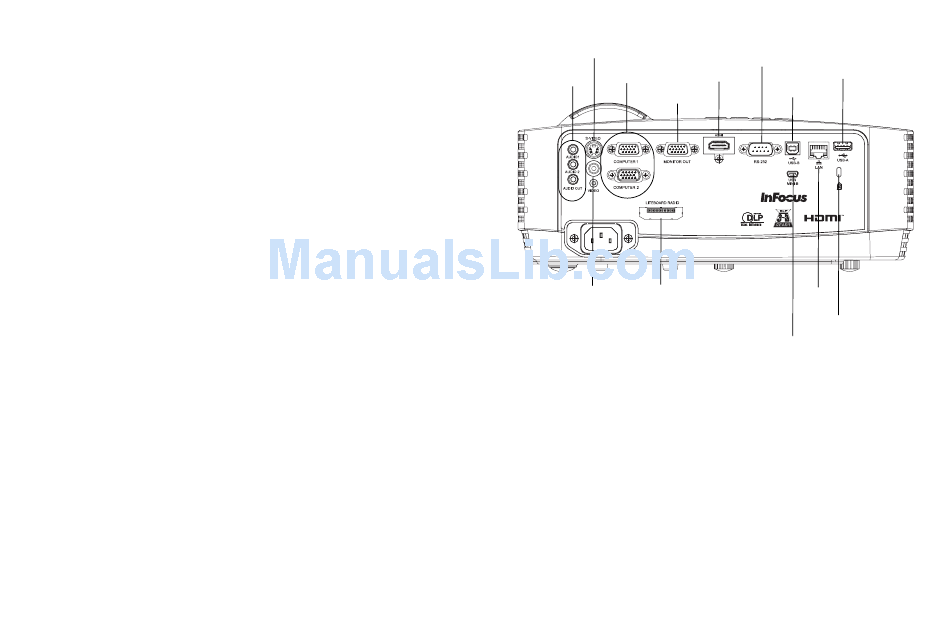

Connector panel
The projector provides both computer and video connection options, including:
• VGA computer (2)
• Composite video
• HDMI
• S-video
• USB B connector (for projector firmware upgrades, mouse control, Screen
Save Preventer, and optional LiteBoard™wand)
• USB Mini B (for Display over USB, loading internal memory and EZ media
firmware upgrade)
• USB A (View photos, movies, documents and listen to audio from USB drive,
display wirelessly with optional WiFi adapter)
• LAN (RJ45 for network control and video over LAN)
• Liteboard radio for use with the optional LiteBoard™wand and dongle.
• Monitor out, for VGA pass through to an external monitor.
• Audio inputs for video and computer.
• Audio output to external speakers.
• RS-232 serial control. Command control codes are on our support website at
www.infocus.com/support.
S-video
computer
audio in/out
monitor out
Liteboard
composite
video
6
RS 232
USB type A
HDMI
USB type B
LAN
radio
security lock
USB mini B
