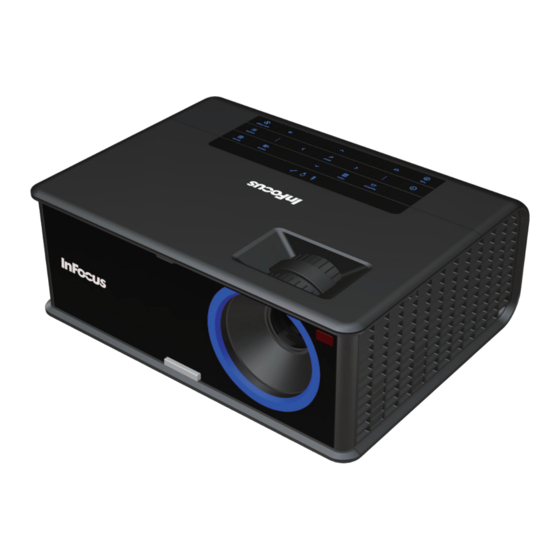

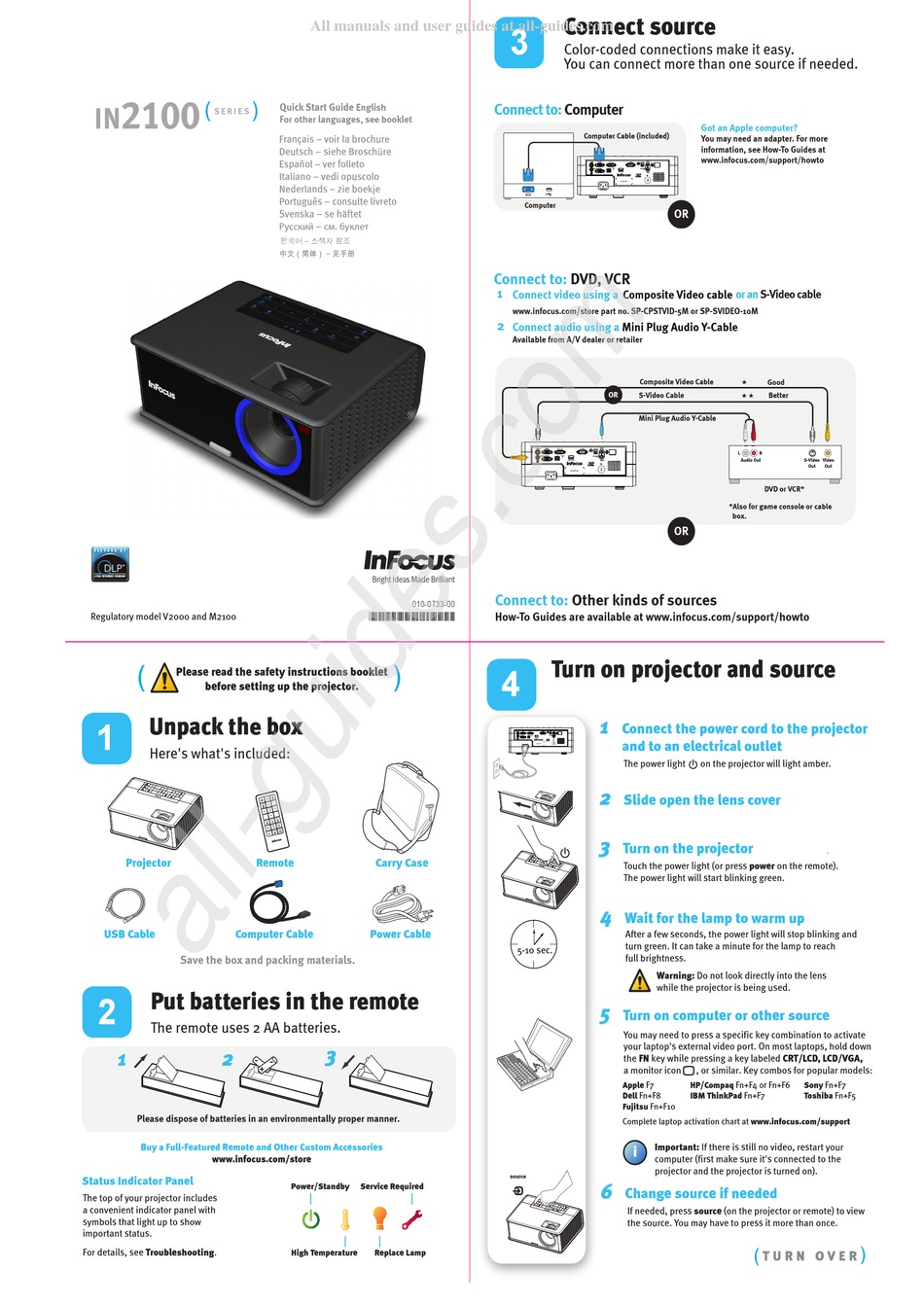

InFocus IN2100 Series Quick Start Manual

Regulatory model V2000 and M2100
Please read the safety instructions booklet
!
before setting up the projector.
Unpack the box
1
Here's what's included:
Projector Remote
USB Cable Computer Cable
Save the box and packing materials.
Put batteries in the remote
2
The remote uses 2 AA batteries.
1 2
Please dispose of batteries in an environmentally proper manner.
Buy a Full-Featured Remote and Other Custom Accessories
www.infocus.com/store
Status Indicator Panel
The top of your projector includes
a convenient indicator panel with
symbols that light up to show
important status.
For details, see Troubleshooting.
All manuals and user guides at all-guides.com
Quick Start Guide English
For other languages, see booklet
Français – voir la brochure
Deutsch – siehe Broschüre
Español – ver folleto
Italiano – vedi opuscolo
Nederlands – zie boekje
Português – consulte livreto
Svenska – se häftet
Русский – см. буклет
한국어 – 소책자 참조
–
010-0733-00
*010-0733-00*
Carry Case
Power Cable
3
Power/Standby Service Required
High Temperature Replace Lamp
Connect source
3
Color-coded connections make it easy.
You can connect more than one source if needed.
Connect to: Computer
Computer Cable (included)
Computer
Connect to: DVD, VCR
1
Connect video using a Composite Video cable
www.infocus.com/store part no. SP-CPSTVID-5M or SP-SVIDEO-10M
2
Connect audio using a Mini Plug Audio Y-Cable
Available from A/V dealer or retailer
Composite Video Cable
OR
S-Video Cable
Mini Plug Audio Y-Cable
Connect to: Other kinds of sources
How-To Guides are available at www.infocus.com/support/howto
Turn on projector and source
4
1
Connect the power cord to the projector
and to an electrical outlet
The power light
2
Slide open the lens cover
3
Turn on the projector
Touch the power light (or press power on the remote).
The power light will start blinking green.
4
Wait for the lamp to warm up
After a few seconds, the power light will stop blinking and
turn green. It can take a minute for the lamp to reach
5-10 sec.
full brightness.
Warning: Do not look directly into the lens
while the projector is being used.
5
Turn on computer or other source
You may need to press a specific key combination to activate
your laptop's external video port. On most laptops, hold down
the FN key while pressing a key labeled CRT/LCD, LCD/VGA,
a monitor icon
Apple F7
Dell Fn+F8
Fujitsu Fn+F10
Complete laptop activation chart at www.infocus.com/support
Important: If there is still no video, restart your
i
computer (first make sure it's connected to the
projector and the projector is turned on).
source
6
Change source if needed
If needed, press source (on the projector or remote) to view
the source. You may have to press it more than once.
Got an Apple computer?
You may need an adapter. For more
information, see How-To Guides at
www.infocus.com/support/howto
OR
or an S-Video cable
Good

 Better
L R
Audio Out S-Video Video
Out Out
DVD or VCR*
*Also for game console or cable
box.
OR
on the projector will light amber.
, or similar. Key combos for popular models:
HP/Compaq Fn+F4 or Fn+F6 Sony Fn+F7
IBM ThinkPad Fn+F7 Toshiba Fn+F5
T U R N O V E R
