StarTech.com PCIIDE2 Spec Sheet

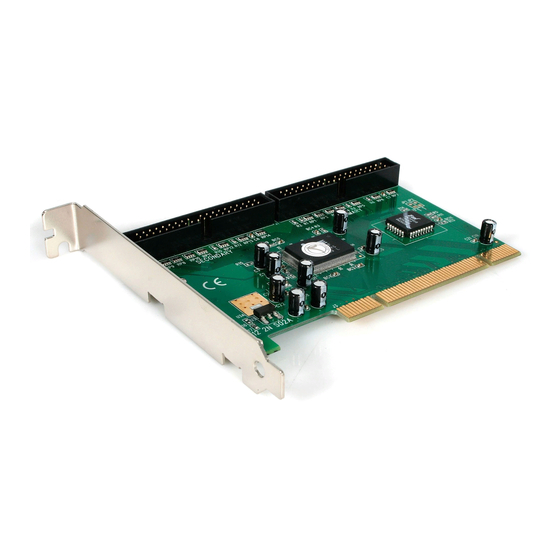

2 Port PCI IDE Controller Adapter Card
StarTech ID: PCIIDE2
This 2 Port IDE (Ultra ATA/133) Controller Card can be installed in a PCI slot, to add more IDE storage capability to
your PC.
Providing two IDE drive channels with support for two drives per channel and data transfer rates of up to 133 MBps,
this adapter card can act as the primary boot device and replace built-in IDE ports, or provide 2 additional high-
speed ports to the system. Designed to perform with high-speed IDE/133 drives, the adapter card also supports
100 MBps hard drives, 66 MBps hard drives, 33 MBps hard drives, CD-ROMS, CDRW drives, and other ATA
peripherals.
To ensure hassle-free installation, the IDE Controller Card includes Bus-Master drivers for Windows 98/ME/NT
4/2000/XP and Vista™.
Applications
Replace a failed IDE port on the motherboard
Connect legacy hard drives, CD/DVD drives, ZIP drives, etc to a newer computer system
Features
Two dual channel IDE connectors
Support for up to Ultra ATA/133 hard drives with transfer rates up to 133 MBps
28-bit LBA
Compliant with PCI specification revision 2.2
