1.1.3 Subnetting and Masking

Subnetting was developed to address the risk of IP address exhaustion resulting from
fast expansion of the Internet. The idea is to break a network down into smaller
networks called subnets by using some bits of the host-id to create a subnet-id. To
identify the boundary between the host-id and the combination of net-id and subnet-id,
masking is used. (When subnetting is not adopted, a mask identifies the boundary
between the host-id and the host-id.)
Each subnet mask comprises 32 bits related to the corresponding bits in an IP address.
In a subnet mask, the part containing consecutive ones identifies the combination of
net-id and subnet-id whereas the part containing consecutive zeros identifies the
host-id.
Subnetting is valid with a single network. All these subnetworks appear as one. As
subnetting adds an additional level, subnet-id, to the two-level hierarchy with IP
addressing, IP routing now involves three steps: delivery to the site, delivery to the
subnet, and delivery to the host.

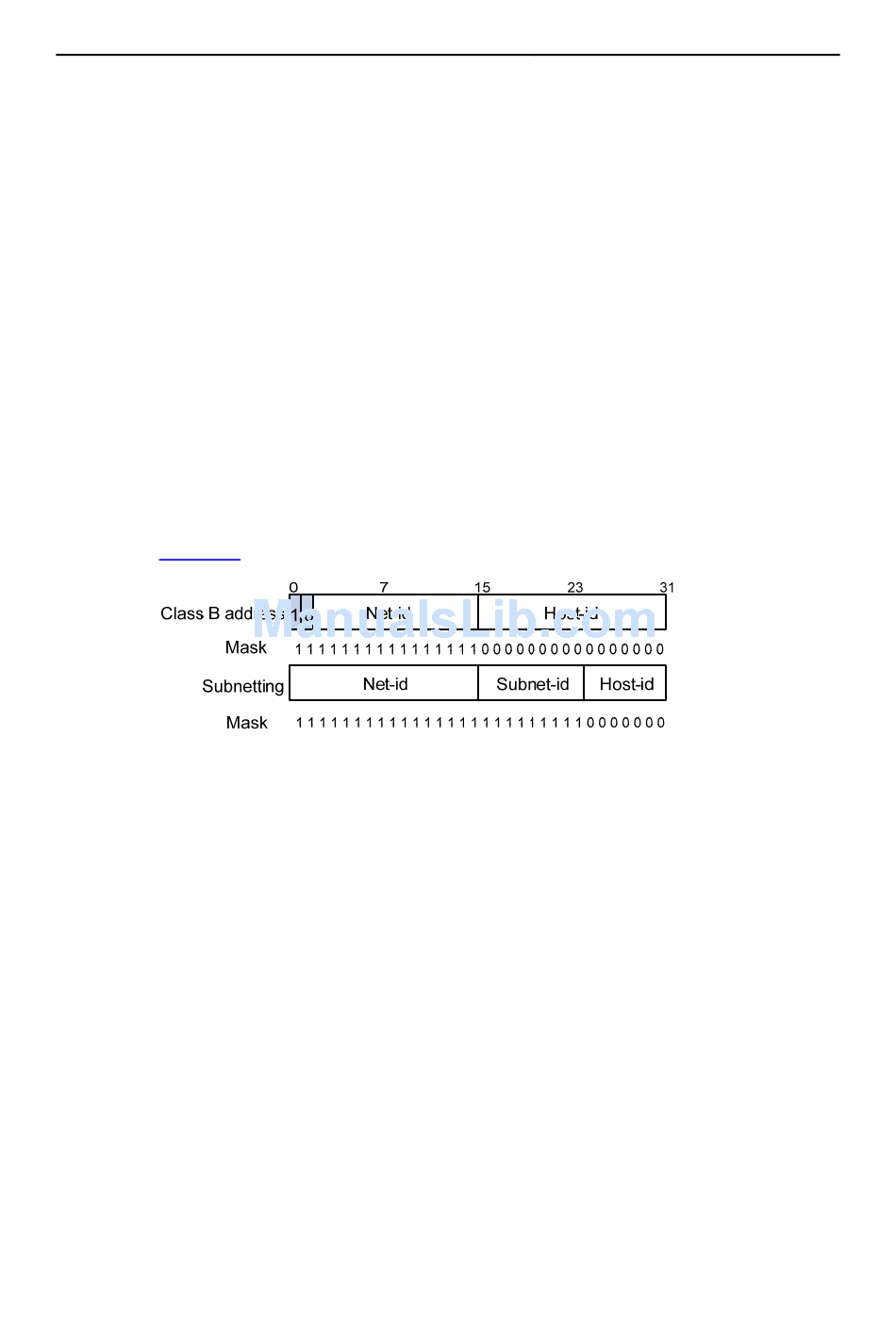

Figure 1-2
Figure 1-2 Subnet a Class B network
In the absence of subnetting, some special addresses such as the addresses with the
net-id of all zeros and the addresses with the host-id of all ones, are not assignable to
hosts. The same is true of subnetting. When designing your network, you should note
that subnetting is somewhat a tradeoff between subnets and accommodated hosts. For
example, a Class B network can accommodate 65,534 (2
Class B addresses, one with an all-one host-id is the broadcast address and the other
with an all-zero host-id is the network address) hosts before being subnetted. After you
break it down into 512 (2
you have only 7 bits for the host-id and thus have only 126 (2
The maximum number of hosts is thus 64,512 (512 × 126), 1022 less after the network
is subnetted.
Class A, B, and C networks, before being subnetted, use these default masks (also
called natural masks): 255.0.0.0, 255.255.0.0, and 255.255.255.0 respectively.
shows how a Class B network is subnetted.
