HEAT MODE

Heating Capability:
~ This is a Heat pump type air conditioner which is heating
the room by absorbing the outside air to the room. There-
fore, as outside temperature drops, heating capability may
be reduced.
~ If heating is not enough, please use another heating source
together with the unit(s).
• This is a warm air circulating system for heating the room.
Therefore it will take time to heat the whole room.
Features of Heating Operation:
~ If there is frost on the outdoor unit, the heating capacity
will drop. Therefore, defrosting operates automatically
(approx. 5 to 12 minutes) and the indicator light on the
indoor unit(s) will blink (red).
~ The room and outdoor fan does operate during defrosting
and the unit will not run during this time.
! CAUTION !
• In case of Cool and Dry mode, water may drop according
to the contaminating status of air filter. In this case, please
clean or replace the air filter with a new one.

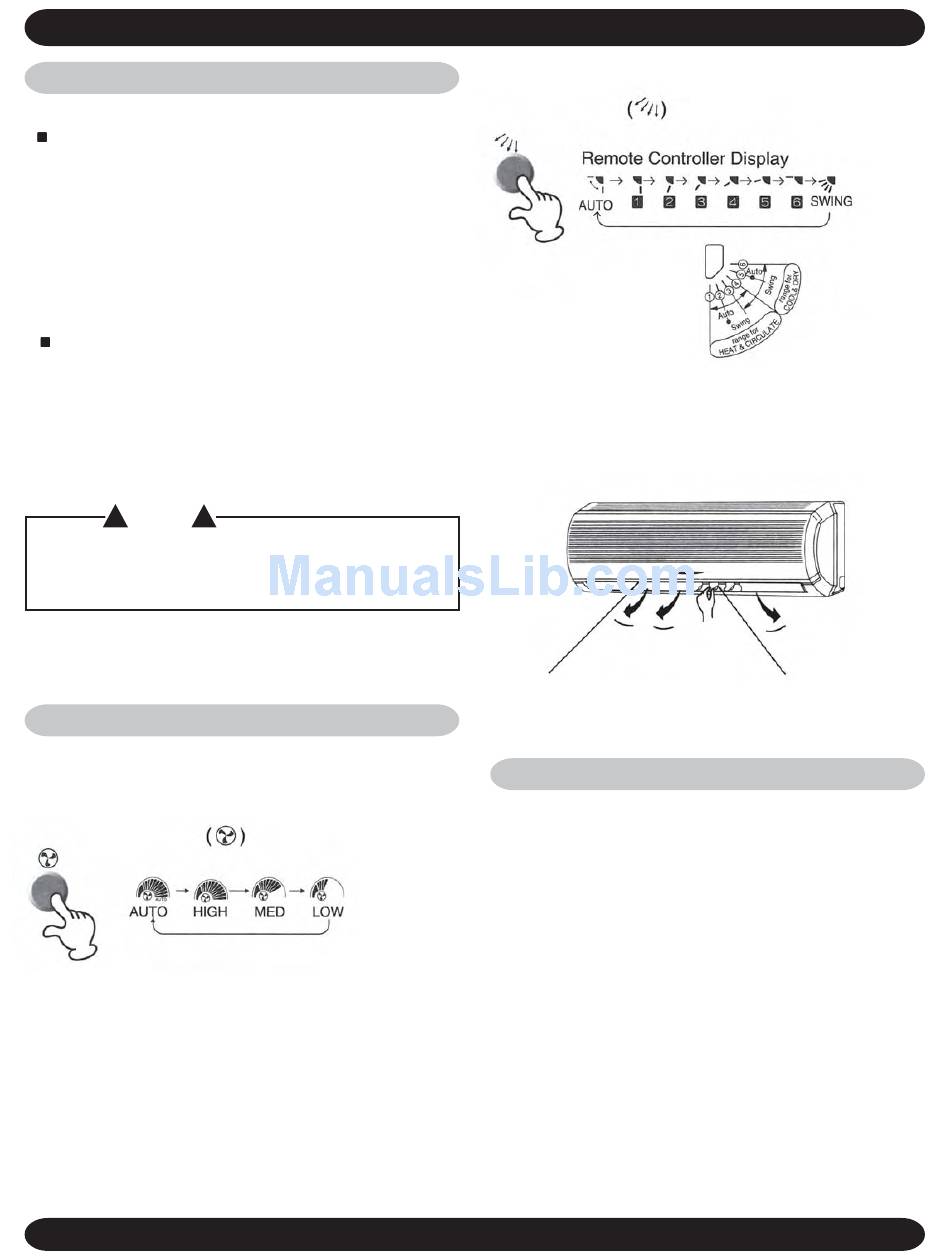

FAN SPEED, AIR FLOW DIRECTION
• To operate the unit(s) effectively, it is recommended that
you familiarize yourself with the following functions:
• To change the fan speed
Press the FAN SPEED
• Cold air moves down, horizontal air flow is preferred when
cooling.
ECR International
OPERATION
(Except Cool model)
button.
(Continued)
• To change the air flow Up or Down
Press the Flap
• Up/Down Moving
range of Airflow
Direction Control
Plate.
• Left-right airflow direction is adjusted manually.
• As shown in the figure below adjust the left-right airflow
direction with the right/left air flow control plate.
• Up/Down Air Flow
Control Plate

CIRCULATION MODE

• If CIRCULATION mode is selected, the room air is circu-
lated so that the temperature stratification in the room will
be reduced.
• You can select AUTO, HIGH, MED, or LOW speed.
• In the AUTO fan speed, the room temperature, set tem-
perature and the unit temperature are monitored so that
the circulation can be properly controlled.
6
button.
• Right/Left Air Flow
Control Plate
