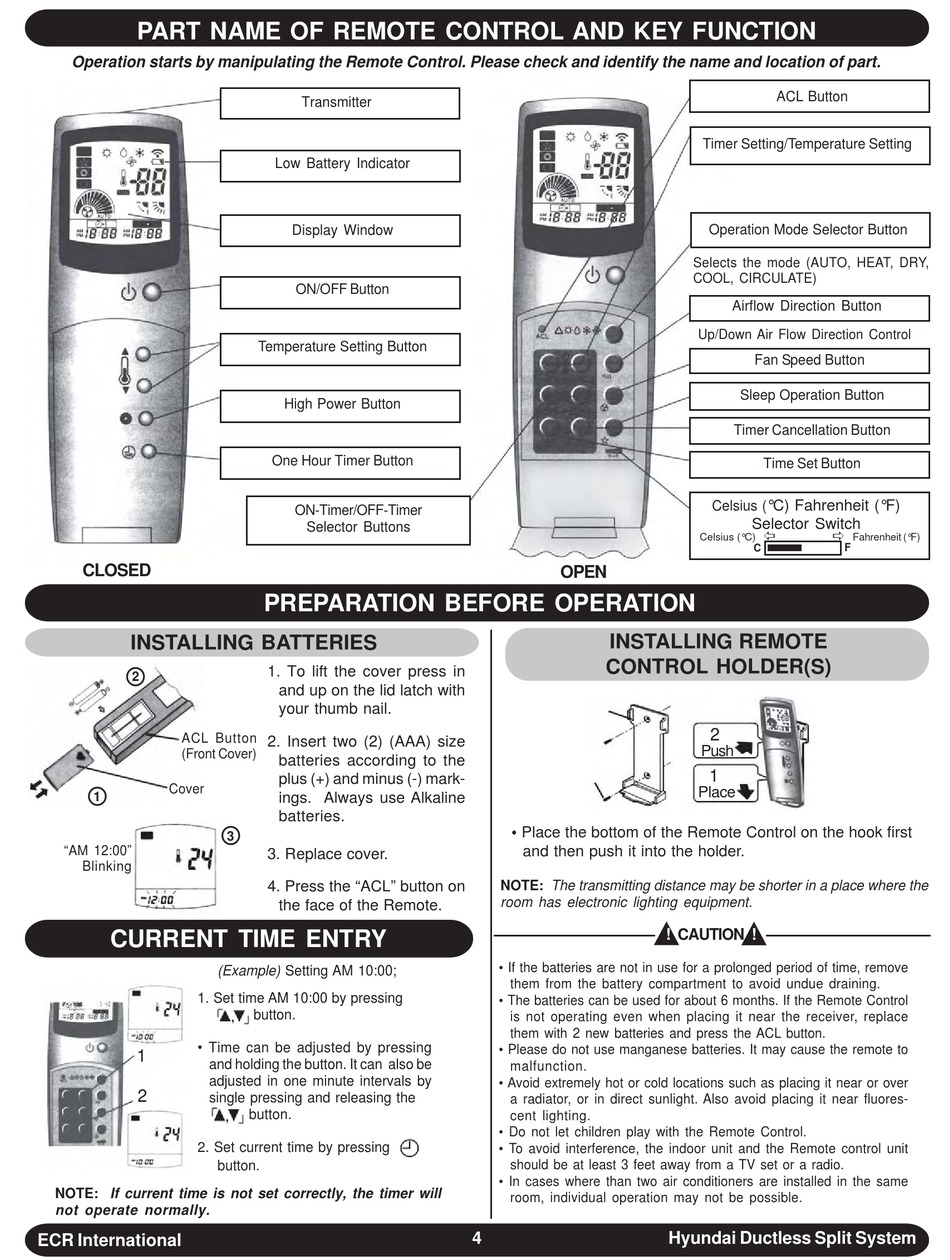

PART NAME OF REMOTE CONTROL AND KEY FUNCTION
Operation starts by manipulating the Remote Control. Please check and identify the name and location of part.
CLOSED
INSTALLING BATTERIES
2
ACL Button
(Front Cover)
Cover
1
"AM 12:00"
Blinking
CURRENT TIME ENTRY
(Example) Setting AM 10:00;
1. Set time AM 10:00 by pressing
• Time can be adjusted by pressing
1
and holding the button. It can also be
adjusted in one minute intervals by
2
single pressing and releasing the
2. Set current time by pressing
button.
NOTE: If current time is not set correctly, the timer will
not operate normally.
ECR International
Transmitter
Low Battery Indicator
Display Window
ON/OFF Button
Temperature Setting Button
High Power Button
One Hour Timer Button
ON-Timer/OFF-Timer
Selector Buttons
PREPARATION BEFORE OPERATION
1. To lift the cover press in
and up on the lid latch with
your thumb nail.
2. Insert two (2) (AAA) size
batteries according to the
plus (+) and minus (-) mark-
ings. Always use Alkaline
batteries.
3
3. Replace cover.
4. Press the "ACL" button on
the face of the Remote.
button.
button.
OPEN
INSTALLING REMOTE
• When it is attached to the wall.
CONTROL HOLDER(S)
• Place the bottom of the Remote Control on the hook first
and then push it into the holder.
NOTE: The transmitting distance may be shorter in a place where the
room has electronic lighting equipment.
• If the batteries are not in use for a prolonged period of time, remove
them from the battery compartment to avoid undue draining.
• The batteries can be used for about 6 months. If the Remote Control
is not operating even when placing it near the receiver, replace
them with 2 new batteries and press the ACL button.
• Please do not use manganese batteries. It may cause the remote to
malfunction.
• Avoid extremely hot or cold locations such as placing it near or over
a radiator, or in direct sunlight. Also avoid placing it near fluores-
cent lighting.
• Do not let children play with the Remote Control.
• To avoid interference, the indoor unit and the Remote control unit
should be at least 3 feet away from a TV set or a radio.
• In cases where than two air conditioners are installed in the same
room, individual operation may not be possible.
4
ACL Button
Timer Setting/Temperature Setting
Operation Mode Selector Button
Selects the mode (AUTO, HEAT, DRY,
COOL, CIRCULATE)
Airflow Direction Button
Up/Down Air Flow Direction Control
Fan Speed Button
Sleep Operation Button
Timer Cancellation Button
Time Set Button
°C) Fahrenheit (°F)
Celsius (
Selector Switch
Celsius (°C)
C
F
2
Push
1
Place
!
CAUTION
!
Hyundai Ductless Split System
Fahrenheit (°F)
