Cardinal Detecto Owner's Manual page 6

Digital Weight Indicator Assembly Instructions
106
105
109
108
Figure No. 3

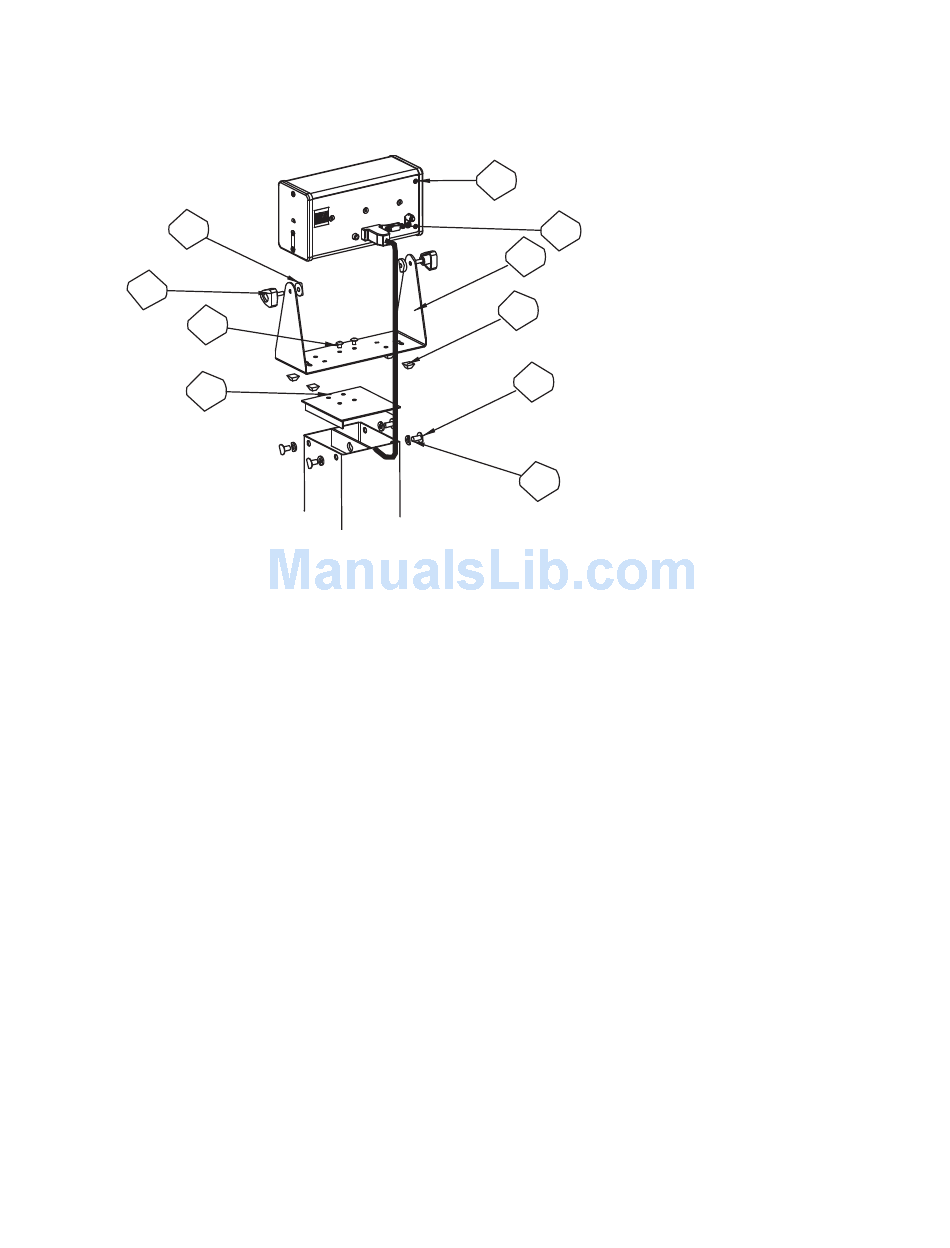

Assembly Parts Diagram
Model 585XF-758
Item No. Part No.
101 758
102 8555-C146-08
103 6021-1423
104 6024-0039
105 6540-1052
106 6680-1008
107 6540-0001
108 430GR8630
109 6021-1002
110 6024-0037
111 1930-B428-0A
585XF-758
101
111
102
107
103
104
Parts List
Part Name
Digital Weight Indicator
Gimbal
1/4-20 x 1/2" Truss Head Screw 4
1/4 Split Lock Washer
Enclosure Knob
Spacer
Rubber Feet
Top Plate Assembly
Hex Head Screw
#10-32 x 1/2"
#10 Lock Washer
Indicator Cable
4
1. Assemble column top plate
assembly (108) to column using
four 1/4-20 x 1/2" truss head
screws and four 1/4 split lock
washers (103, 104). Assemble
gimbal to column top plate
assembly using two #10-32 x 1/2"
hex head screws and two #10 split
lock washers (109, 110).
2. Mount the digital weight
indicator (101) to the gimbal (102)
and secure with two knobs and
two washers (105, 107). NOTE:
Do not tighten these knobs tight.
The indicator should be free to be
adjusted later at the operator's
convenience.
3. Connect and secure the load
cell cable into the back of the
indicator via the 9 pin connector.
Refer to Indicator Manual 8555-
M021-O1.
4. Refer to Indicator Manual
8555-M021-O1 for setup
instructions.
Quantity
1
1
4
2
2
4
1
2
2
1
