Cardinal Detecto Owner's Manual page 5

Digital Weight Indicator Assembly Instructions
107
111
108

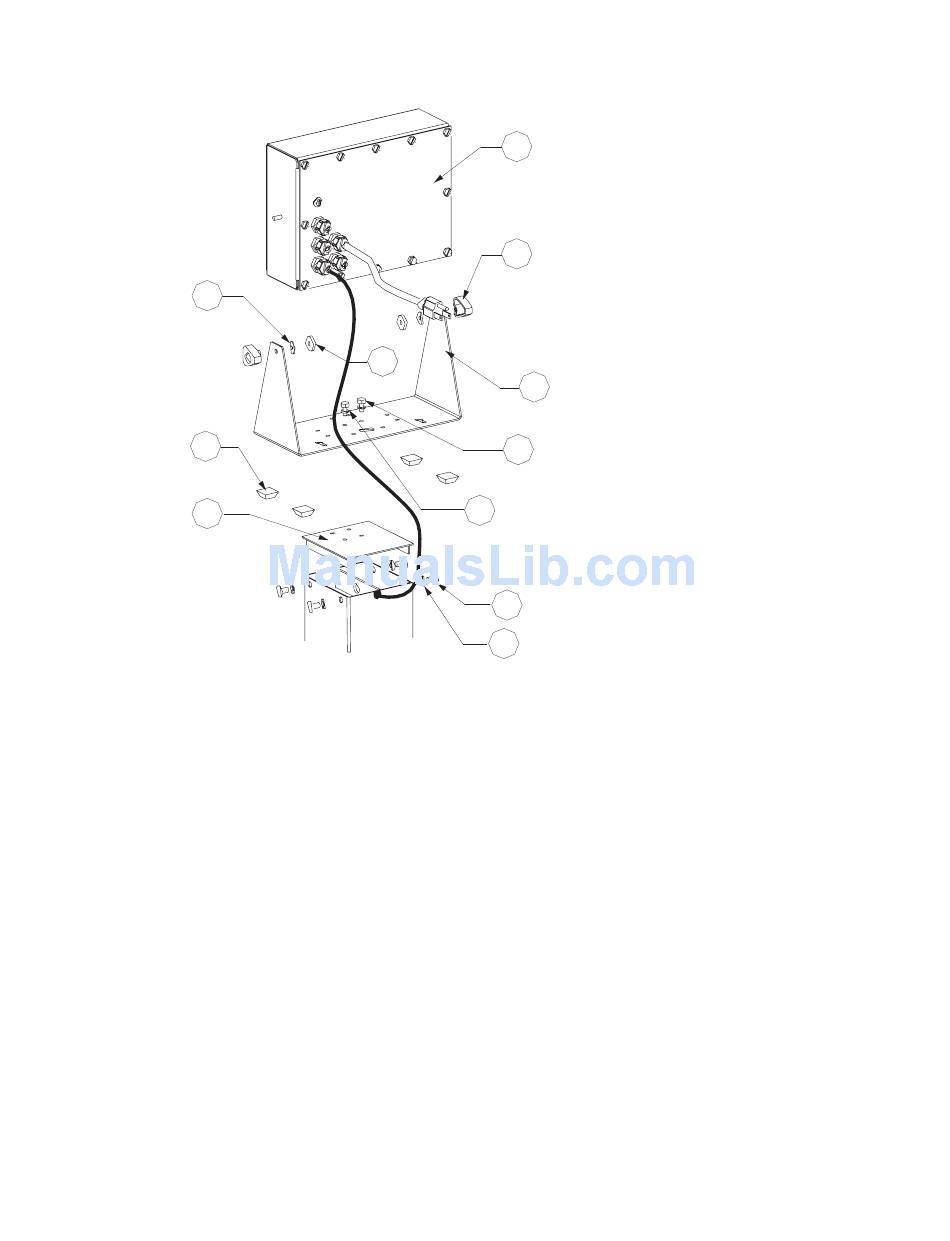

Figure No. 2
Assembly Parts Diagram
Model 585XF
Item No. Part No.
101 205/210
102 8200-D022-08
103 6021-1423
104 6024-0039
105 6540-1053
107 6024-0083
108 430GR8630
109 6021-1002
110 6024-0037
111 6540-1004
112 6540-1008
585XF
101
105
112
102
109
110
103
109
Parts List
Part Name
Digital Weight Indicator
Gimbal
1/4-20 x 1/2" Truss Head Screw
1/4 Split Lock Washer
Enclosure Knob
Washer
Top Plate Assembly
Hex Head Screw #10-32 x 1/2"
#10 Lock Washer
Rubber Feet
Spacer
3
1. Assemble column top plate
assembly (108) to column using
four 1/4-20 x 1/2" truss head
screws and four 1/4 split lock
washers (103, 104). Assemble
gimbal to column top plate
assembly using two #10-32 x 1/2"
hex head screws and two #10 split
lock washers (109, 110).
2. Mount the digital weight
indicator (101) to the gimbal (102)
and secure with two knobs and
two washers (105, 107). NOTE:
Do not tighten these knobs tight.
The indicator should be free to be
adjusted later at the operator's
convenience.
3. Connect and secure the load
cell cable into the back of the
indicator via the 9 pin connector.
Refer to Indicator Manual 8200-
M024-O1.
4. Refer to Indicator Manual
8200-M024-O1 for setup
instructions.
Quantity
1
1
4
4
2
2
1
2
2
4
2
