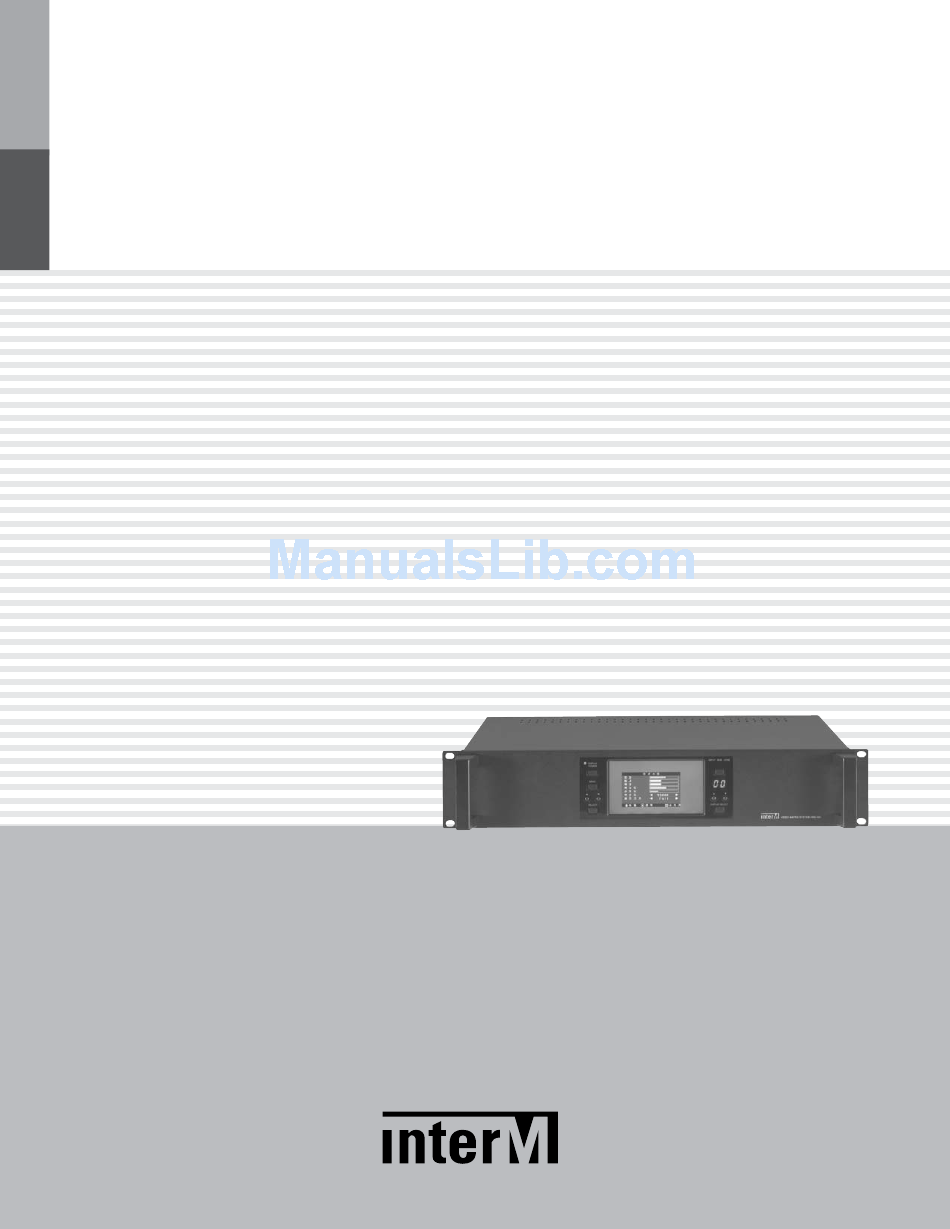

Operation Manual Video Matrix System V-500 * Rack mount products in the Western Hemisphere(North America, South America, and the Caribbean) do not have handles installed due to customer preference.
Page 2
VIDEO MATRIX SYSTEM Welcome Welcome A personal welcome to you from the management and employees of Inter-M All of the co-workers here at Inter-M are dedicated to providing excellent products with inherently good value, and we are delighted you have purchased one of our products. We sincerely trust this product will provide years of satisfactory service, but if anything is not to your complete satisfaction, we will endeavor to make things right.
Outline of System ...........................3 Features ............................3 Operation Method ..........................3 Cautions in assembling rack ......................3 Front Panel ............................4 Rear Panel ............................6 Applications ............................8 Block Diagram ..........................9 Specifications ..........................10 Service Procedures............................11 Schematic .............................11 Parts List ............................11 Variations and Options .......................11 Warranty ............................11 V-500...
VIDEO MATRIX SYSTEM Unpacking Unpacking Although your V-500 is neither complicated nor difficult to operate, we recommend you take a few minutes to read this brief manual and familiarize yourself with the important information regarding product features, setup and operation.
If Input Mode switch on the rear side is set INPUT, it is got 8 Channel VIDEO. And if switch is set LINK, it is got 6 BUS VIDEO. - 6 BUS VIDEO LINKS OUTPUT It is possible to output video to other V-500 equipment. - 21 ZONE VIDEOS OUTPUT It is possible to output video signals to the monitor located at Local.
Display to check image outputted to INPUT/BUS/ZONE. 7. INPUT/BUS/ZONE SELECT DISPLAY LED Display status on the Monitor. 8. INPUT/BUS/ZONE SELECT BUTTON Selects condition to display on the monitor. 9. INPUT/BUS/ZONE DISPLAY PART Display the selected number on the monitor. V-500...
Page 7
VIDEO MATRIX SYSTEM 10. MONITORING CHANNEL SELECT BUTTON Select the Channel number to display on Monitor 11. DISPLAY SELECT BUTTON Select the Image to display on Monitor. V-500...
Select Zone connecting with Z-500 equipment. (Select one of BUS Videoes, and then output it to desired Zone.) Connect with V-500 connection terminal on the rear side of Z-500 using CATEGORY5 (UTP). And operating specification is as follow : (Maximum cable Length is about 15m.)
Page 9
7. C-500 COMMUNICATION TERMINAL Select 6 BUS Video signal among 8 Channel Video input by connecting with C-500 equipment. Connect with V-500 connection terminal on the rear side of C-500 using CATEGORY5 (UTP) material. And operating specification is as follow :...
VIDEO MATRIX SYSTEM Specifications Specifications V-500 Image Standard NTSC/PAL Composite Video Link Input 1.0Vpp (100 IRE)/75Ω 8CH Link Output 1.0Vpp (100 IRE)/75Ω 6CH Image Output 1.0Vpp (100 IRE)/75Ω 21CH TFT LCD Monitor 4.8 Wide Control Signal RS-422 (C-500), RS-232 (Z-500)
To obtain specific warranty information and available service locations contact Inter-M directly or the authorized Inter-M Distributor for your specific country or region. V-500...
Page 16
Inter-M, Ltd. (Korea) began operations in 1983. Since then, Inter-M has grown to become one of the largest manufacturers of professional audio and commercial sound electronics equipment in the world. Inter-M has gained worldwide recognition for its own branded products, as well as private label manufacturing of electronics sold under other names (OEM).
