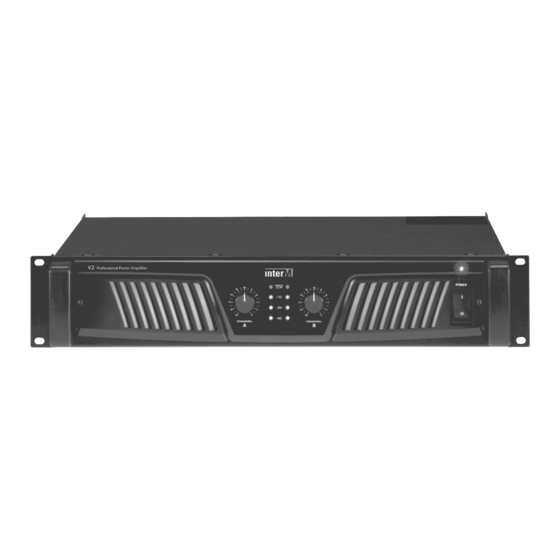

- Page 1 Operation anual Professional Power mplifier 2-5000...
- Page 2 PROFESSION L POWER MPLIFIER Welcome Welcome personal welcome to you from the management and employees of Inter-M ll of the co-workers here at Inter-M are dedicated to providing excellent products with inherently good value, and we are delighted you have purchased one of our products. We sincerely trust this product will provide years of satisfactory service, but if anything is not to your complete satisfaction, we will endeavor to make things right.
-
Page 3: Table Of Contents
Stereo Installation ..........................9 Parallel Installation ..........................9 Bridge Mono Installation ........................10 Linked Installation..........................10 Connections ..........................11 Stereo/Parallel Connection ......................12 Bridge Mono Connection .......................12 Block Diagram ..........................13 Specifications ..........................14 Service Procedures............................16 Schematic .............................16 Parts List ............................16 Variations and Options .......................16 Warranty ............................16 V2-5000... -
Page 4: Unpacking
8. The product is ready for operation. Slowly increase the level control to the desired operating level. void illuminating the clip indicator and do not apply too much power to the speakers. 9. Operate the product and the system in a manner which does not illuminate the clip warning indicator. V2-5000... -
Page 5: Installation
S3125A S3125A V2-5000... -
Page 6: Description
- Front panel indicators for output signal, clip, protect and power - Rack ears for permanent installation in a standard 19”(rack mount width) enclosure - Selectable high pass filter on each channel-clip limiter circuitry - Gain selectable switch for both channel - Front removable dust filters V2-5000... -
Page 7: Front Panel
This confirms the amplifier is switched on and receiving C mains power when illuminated. When switched on, the indicator is illuminated dimly for stand-by and then fully illuminated with prot/clip indicator for mute status, after that, only this illuminated fully activating the amplifier. V2-5000... - Page 8 The position of this switch determines whether the C mains power is on or off. The power-on status is confirmed by the illuminated power indicator. mplifiers are always the last item in a system to be turned on. It is generally a good idea to reduce the level controls before applying C mains power. V2-5000...
-
Page 9: Rear Panel
You can drive the amplifier with different gain structure, 1.4V, 32dB or 26dB, which is possible the amplifier to accept a various input level. 5. 3-Pin Euroblock Input Connectors These connectors are used for balanced or unbalanced input signals. For parallel mode or bridged mode, use INPUT 1 only. V2-5000... - Page 10 The 30Hz position reduces the signal amplitude below 30Hz to conserve power and help protect the loudspeakers. The 50Hz position reduces the signal amplitude below 50Hz to conserve power and help protect the loudspeakers. V2-5000...
-
Page 11: Stereo Installation
PROFESSION L POWER MPLIFIER pplications pplications pplications pplications Stereo Installation IMX-824/832/840 CH A CH B PUSH INPUT A CHANNEL PUSH CH B INPUT B CHANNEL Parallel Installation IMX-824/832/840 CH A CH B PUSH INPUT A CHANNEL PUSH INPUT B CH B CHANNEL V2-5000... -
Page 12: Bridge Mono Installation
Linked Installation Linking is possible when in Stereo/Parallel or Bridged Mono operation. CH A CH B PUSH INPUT A CHANNEL PUSH INPUT B CH B CHANNEL CH A CH B PUSH INPUT A CHANNEL PUSH INPUT B CH B CHANNEL V2-5000... -
Page 13: Connections
PROFESSION L POWER MPLIFIER Connections V2-5000 amplifiers utilize three types of professional audio connectors. For the inputs, 3-pin Euroblock connectors are utilized with their polarity clearly marked on the amplifier’s rear panel, and combination XLR and 1/4” phone jack are all wired in parallel. -
Page 14: Stereo/Parallel Connection
CH B CHANNEL Wiring Two Speakers to the Channel Speaker Connector CH A CH B CHANNEL CH A Bridge Mono Connection Wiring a Speaker in Bridged Mono to the Channel Speaker Connector CH A CH B CHANNEL CH A V2-5000... -
Page 15: Block Diagram
PROFESSION L POWER MPLIFIER Block Diagrams Block Diagram V2-5000... -
Page 16: Specifications
PROFESSION L POWER MPLIFIER Specifications Specifications 0dB=1V V2-5000 120V C Continuous verage Output Power Per Channel Stereo Mode 8 (T.H.D 1%) 1000W (1kHz, Both Channels Driven) 4 (T.H.D 1%) 1700W 2 (T.H.D 1%) 2500W Bridged Mono Mode 8 (T.H.D 1%) 3400W 4 (T.H.D 1%) - Page 17 PROFESSION L POWER MPLIFIER ※ DIMENSIONS V2-5000...
-
Page 18: Service
To obtain specific warranty information and available service locations contact Inter-M directly or the authorized Inter-M Distributor for your specific country or region. V2-5000... - Page 20 Inter-M, Ltd. (Korea) began operations in 1983. Since then, Inter-M has grown to become one of the largest manufacturers of professional audio and commercial sound electronics equipment in the world. Inter-M has gained worldwide recognition for its own branded products, as well as private label manufacturing of electronics sold under other names (OEM).
