Page 1: Operation Manual

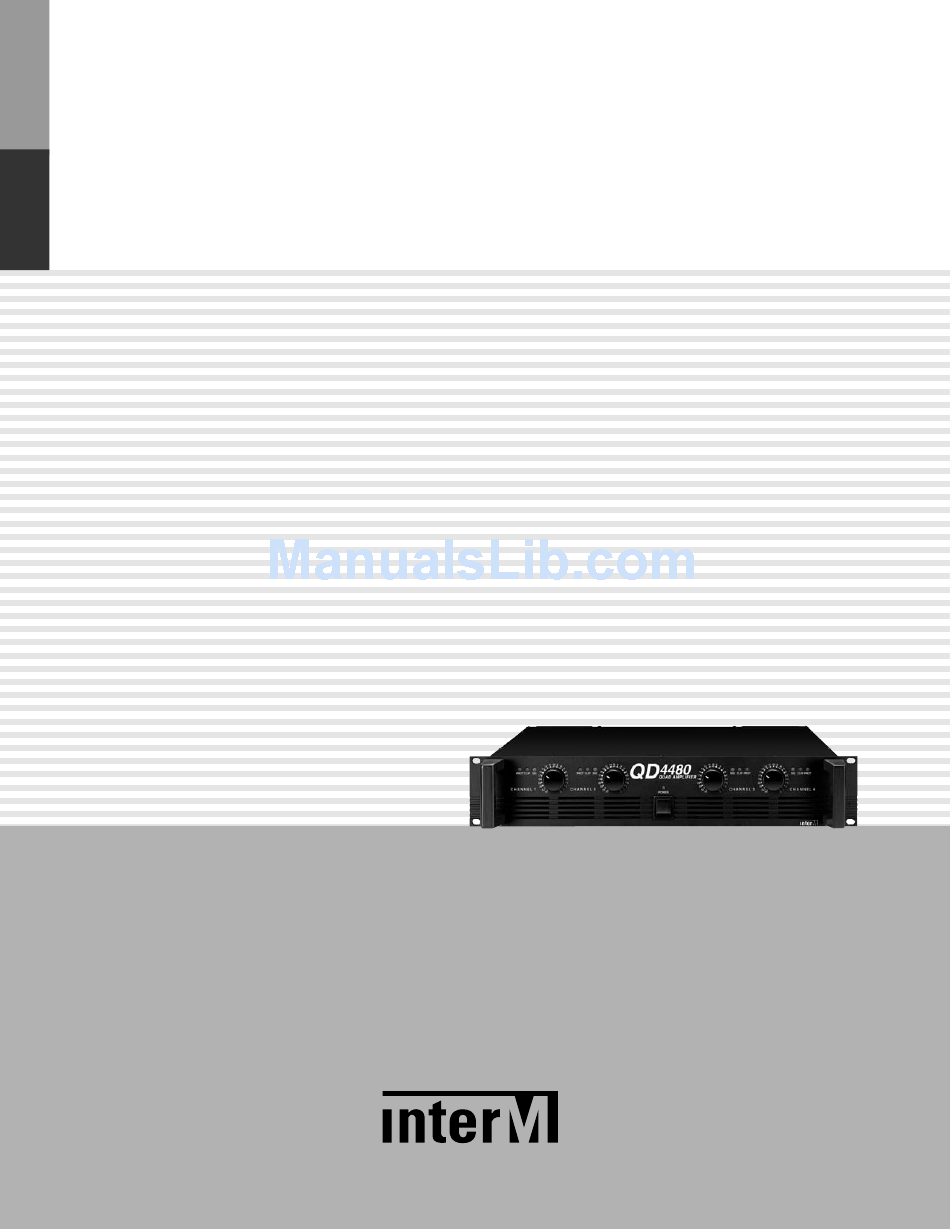

Operation Manual Quad Amplifier QD-4240/4480/4960 QX-4960 * Rack mount products in the Western Hemisphere(North America, South America, and the Caribbean) do not have handles installed due to customer preference. -
Page 2: Table Of Contents
QUAD AMPLIFIER Contents Contents Welcome ............................1 Installation Environment............................2 Important Safety Instructions......................2 Features ............................3 Operation ............................3 Suggested Applications .........................3 Front Panel ............................4 Rear Panel ............................5 Speaker Connections ........................8 Speaker Connection Procedures ....................12 Troubleshooting ...........................14 Applications ..........................15 Block Diagram ..........................18 Specifications ..........................22 Service Procedures............................23 Schematic .............................23... -
Page 3: Welcome
A personal welcome to you from the management and employees of Inter-M All of the co-workers here at Inter-M are dedicated to providing excellent products with inherently good value, and we are delighted you have purchased one of our products. -
Page 4: Installation
QUAD AMPLIFIER Unpacking Although your QD-4240/4480/ 4960/ QX-4960 is neither complicated nor difficult to operate, we recommend you take a few minutes to read this brief manual and familiarize yourself with the important information regarding product features, setup and operation. -
Page 5: Features
QUAD AMPLIFIER Features Features - FOUR CHANNEL AMPLIFIER Four channels in a single chassis. - ADVANCED PROTECTION CIRCUITRY Thermal overload protection, DC detection circuitry and power-on delay help protect your amplifier and system components. - BRIDGED MONO OPERATION Can operate in monaural mode for high-power and performance. - SLIM DESIGN, COMPACT SIZE Streamlined design fits in a compact 2RU space. -
Page 6: Front Panel

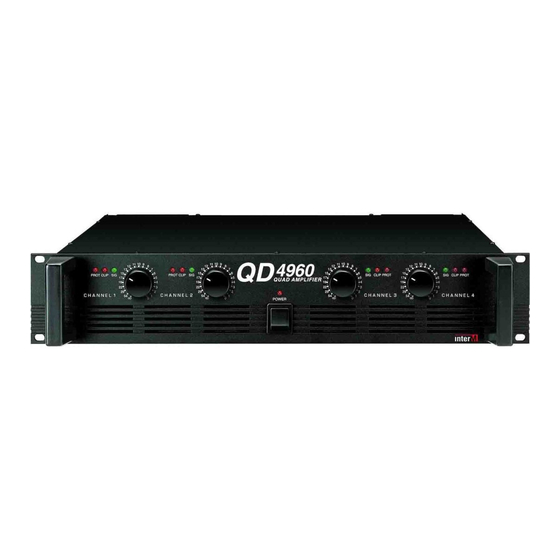

QUAD AMPLIFIER Front Panel Front Panel 4480 QUAD AMPLIFIER POWER 1. PROTECTION INDICATOR This LED indicates the state of the amplifier’s protection circuitry. When the Protection LED is on (illuminated), the protection circuitry is active, indicating that the unit is not operating normally. This is typically due to overheating or power limiting. -
Page 7: Rear Panel
Real Panel Real Panel - QD-4240/4480 A NOTE ABOUT VENIILATION : The fan vents provide hot air out of the unit. It is important to keep them free of obstructions, to prevent the unit from overheating. It us also important to operate the unit in a dust-free environment. - Page 8 QUAD AMPLIFIER The TRS connectors are wired as Tip as hot (+), COLD Ring as cold (-), and sleeve as ground, as shown below. GROUND 3. SPEAKER OUTPUT TERMINALS These five-way binding posts are used to connect speakers to the unit. Do not connect the two outputs of a single channel by connecting them together, or in parallel with any other amplifier.
- Page 9 QUAD AMPLIFIER 6. CROSSOVER FREQUENCY ADJUSTMENT (QX-4960 ONLY) This knob controls the relative frequency of the integrated crossover. 7. CIRCUIT BREAKER This Circuit Breaker Functions as AC overload protection. If the Circuit Breaker has been tirpped, push to reset. If the Circuit Breaker continuesto trip, refer servicing to a qualified service technician. 8.
-
Page 10: Speaker Connections
Speaker Connections (QD-4240/4480) Speaker Connections (QD-4240/4480) The QD-4240/4480 has three operational modes (Stereo/Parallel/Bridged), and speakers may be connected in parallel. The impedance varies depending on the selected mode, and caution should be used to make sure the impedance is not less than the recommended impedance. - Page 11 - STEREO/PARALLEL MODE CONNECTIONS OC03 www.inter-m.com * CAUTION: The parallel mode is the same connections with stereo mode, but you must set the switch to parallel mode and apply input to CH1 & CH3.
- Page 12 BRIDGE (8~16Ω) AC INPUT BALANCED BALANCED 230V 50Hz, 770W www.inter-m.com OdBm OdBm CHANNEL 4 CHANNEL 2 * CAUTION: 1. The parallel mode is the same connections with stereo mode, but you must set the switch to parallel mode and apply input to CH1 & CH3.
- Page 13 BRIDGE (8~16Ω) AC INPUT BALANCED BALANCED 230V 50Hz, 770W www.inter-m.com CHANNEL 4 OdBm OdBm CHANNEL 2 * CAUTION: When you apply to X-OVER MODE, you must connect correctly for protecting speakers from being damaged. First, confirm output terminal on the rear panel of QX-4960, and then connect tweeter speakers to CH1 &...
-
Page 14: Speaker Connection Procedures
QUAD AMPLIFIER Speaker Connection Procedures Speaker Connection Procedures Always switch the power off before connecting speakers. After removing approximately 10mm (1/4-inch) of insulation from the ends of the speaker cables, twist the strands tightly and pass the bare ends through the holes in the terminals, tightening the terminals to secure the wires. - Page 15 - RACK MOUNTING YOUR AMPLIFIER The QD-4240/4480/4960, QX-4960 intakes cool air through the front panel and exhausts warm air through the rear panel. When mounting in a portable equipment rack, maintain adequate ventilation by making certain the front and rear panels are not obstructed.
-
Page 16: Troubleshooting
QUAD AMPLIFIER Troubleshooting Troubleshooting Indicator Probable Cause Solution Protection Circuit There is a short at a Locate and repair the speaker terminal, cause of the short. amplifier terminal or The PC limiter circuit speaker wire. operates, disconnecting CLIP indicator lit the amplifier from the Excessive amplifier Use a speaker system... -
Page 17: Applications
EMERGENCY COMBINATION SYSTEM QUAD AMPLIFIER Applications (QD-4240/4480) Applications (QD-4240/4480) - SINGLE AMP SYSTEM CH 1 CH 3 CH 2 CH 4 MODEL NO. QD4480 QUAD AMPLIFIER OUTPUT POWER:STEREO:120W(4Ω) 4 :BRIDGED:240W(8Ω) 2 BRIDGED MONO USE CAUTION; CHANNEL 2, 4 CONTROL TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER. - Page 18 Applications (QD-4960) Applications (QD-4960) - SINGLE AMP SYSTEM OC03 www.inter-m.com - BRIDGED MONO OPERATION 1. Set mode selector to bridged mono. 2. Set the Channel 2 and 4 VR to maximum (0) position. 3. Connect a mono input signal to channel one input jack.
- Page 19 CH 2(4Ω ~ 8Ω) PARALLEL PARALLEL (8~16Ω) (8~16Ω) BRIDGE BRIDGE BRIDGE BRIDGE AC INPUT 230V 50Hz, 770W BALANCED BALANCED www.inter-m.com CHANNEL 4 OdBm OdBm CHANNEL 2 - SUB WOOFER SYSTEM OUTPUT INPUT CHANNEL 3 CHANNEL 1 PUSH PUSH HIGH HIGH OC03 CH 3(4Ω...
-
Page 20: Block Diagram
QUAD AMPLIFIER Block Diagram Block Diagram - QD-4240 QD -4240/4480/4960, QX-4960... - Page 21 QUAD AMPLIFIER - QD-4480 QD -4240/4480/4960, QX-4960...
- Page 22 QUAD AMPLIFIER Block Diagram Block Diagram - QD-4960 QD -4240/4480/4960, QX-4960...
- Page 23 QUAD AMPLIFIER - QX-4960 QD -4240/4480/4960, QX-4960...
-
Page 24: Specifications
QUAD AMPLIFIER Specifications Specifications *0dB=0.775Vrms, Half Power=1/2 Power Output Level (Rated Power) QD-4240 QD-4480 QD-4960 QX-4960 Rated Output (RMS) f=1kHz, THD+N≤0.05% (Typical) QUAD RL=8Ω 170W RL=4Ω 120W 240W 120W 240W 480W BRIDGEDSTEREO RL=8Ω One Channel Driven 120W 240W f=1KHz THD+N≤0.05% RL=4Ω... -
Page 25: Service
To obtain specific warranty information and available service locations contact Inter-M directly or the authorized Inter-M Distributor for your specific country or region. - Page 26 Inter-M, Ltd. (Korea) began operations in 1983. Since then, Inter-M has grown to become one of the largest manufacturers of professional audio and commercial sound electronics equipment in the world. Inter-M has gained worldwide recognition for its own branded products, as well as private label manufacturing of electronics sold under other names (OEM).
