  • Page 1: Operation Manual

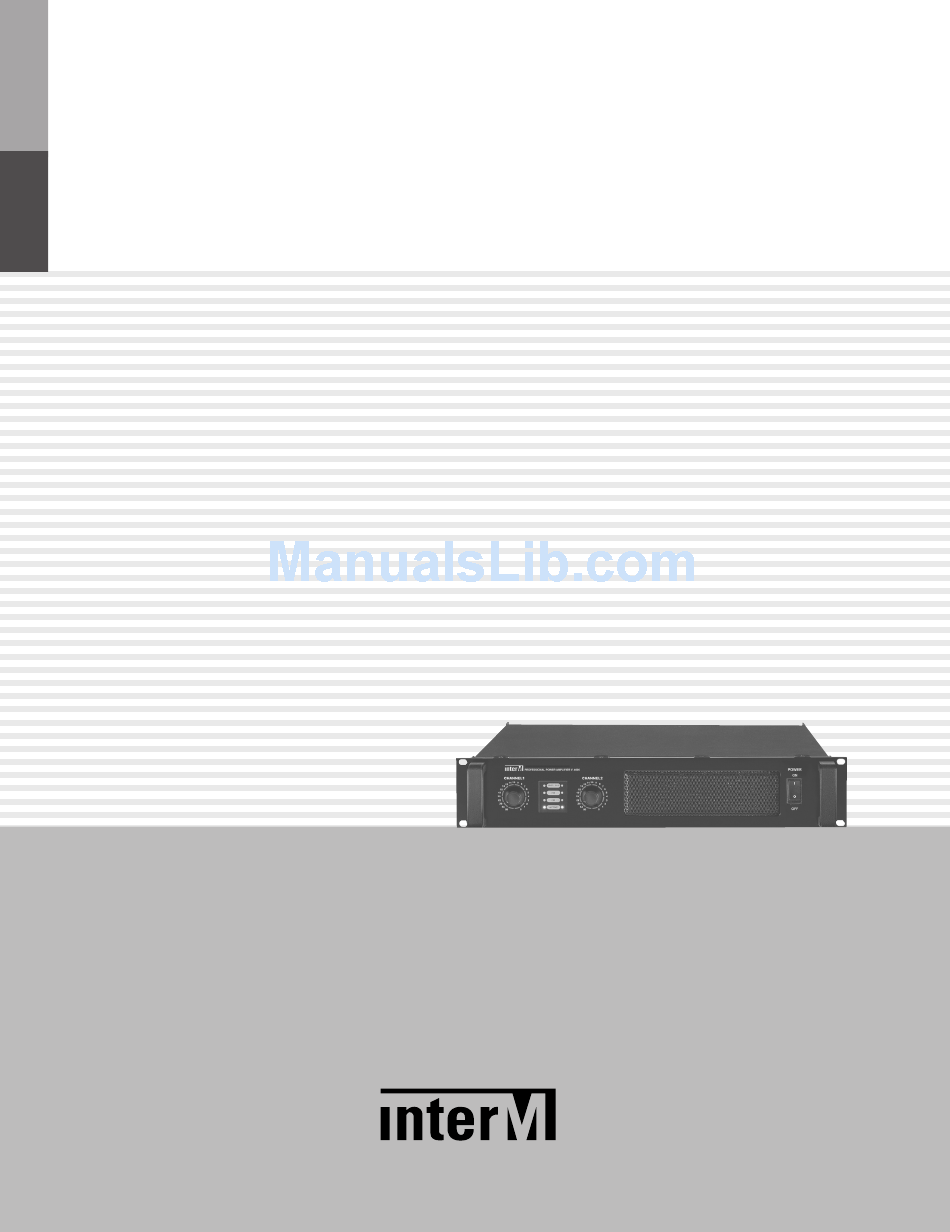

    Operation Manual Professional Power Amplifier V-3000/4000...
  • Page 2 A personal welcome to you from the management and employees of Inter-M All of the co-workers here at Inter-M are dedicated to providing excellent products with inherently good value, and we are delighted you have purchased one of our products.

  • Page 3: Table Of Contents

    Front Panel ............................5 Rear Panel ............................6 Applications Stereo Installation ...........................8 Parallel Installation ..........................8 Bridge Mono Installation ........................9 Linked Installation..........................9 Connections ..........................10 Block Diagrams ..........................12 Specifications ..........................13 Service Procedures............................14 Schematic .............................14 Parts List ............................14 Variations and Options .......................14 Warranty ............................14 V-3000/4000...

  • Page 4: Unpacking

    8. The product is ready for operation. Slowly increase the LEVEL control to the desired operating level. Avoid illuminating the CLIP indicator and do not apply too much power to the speakers. 9. Operate the product and the system in a manner which DOES NOT illuminate the CLIP warning indicator. V-3000/4000...

  • Page 5: Installation

    S3125A S3125A V-3000/4000...

  • Page 6: Description

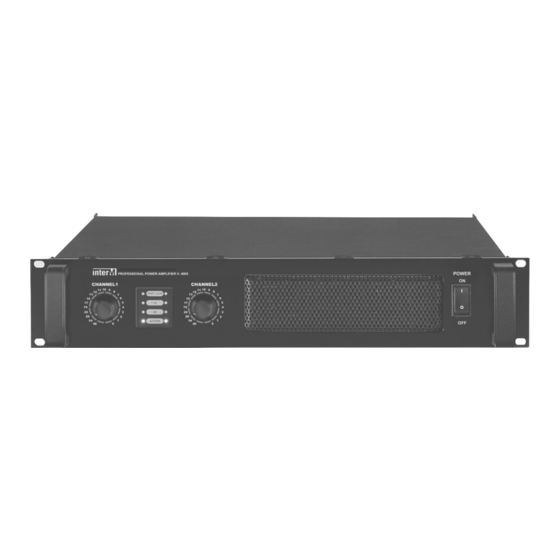

    PROFESSIONAL POWER AMPLIFIER Description Description - V-3000 - L800 A 2U rack space, 2 channel amplifier capable of 3200W into 4Ω load(bridged mono). A 2U rack space, 2 channel amplifier capable of 800W into 4Ω load (bridged mono). - V-4000 - L1400 A 2U rack space, 2 channel amplifier capable of 4000W into 4Ω...

  • Page 7: Front Panel

    OFF position. You can switch ON after abnormal situation released and then the amplifier will be recovered. Amplifiers are always the last item in a system to be turned on. It is generally a good idea to reduce the level controls before applying AC mains power. V-3000/4000...

  • Page 8: Rear Panel

    Each input channel is equipped with a XLR connector. You can use either balanced or unbalanced connectors, but use unbalanced only for a short distance between equipment to avoid a noise problem. Please refer to the input connection drawings. V-3000/4000...
  • Page 9 The 30Hz position reduces the signal amplitude below 30Hz to conserve power and help protect the loudspeakers. The 50Hz position reduces the signal amplitude below 50Hz to conserve power and help protect the loudspeakers. V-3000/4000...

  • Page 10: Applications

    BRIDGED STEREO 30Hz PARALLEL 50Hz CLASS 3 WIRING www.inter-m.com SPEAKER SPEAKER V-3000/4000 Parallel Installation NMD-810N -840 L C R M I X I N G C O N S O L E IMX-824/832/840 MODEL NO. V4000 INPUT 1 LIMITER CAUTION...

  • Page 11: Bridge Mono Installation

    MODE BRIDGED STEREO 30Hz PARALLEL 50Hz CLASS 3 WIRING www.inter-m.com SPEAKER V-3000/4000 Linked Installation Linking is possible when in Stereo/Parallel or Bridged Mono operation INPUT 1 MODEL NO. V4000 LIMITER CAUTION AVIS PROFESSIONAL POWER AMPLIFIER RATED OUTPUT 1300W/CH @4Ω STEREO, PARALLEL...

  • Page 12: Connections

    PROFESSIONAL POWER AMPLIFIER Connections Inter-M products are wired according to professionally accepted wiring practices used throughout the world. 1. XLR INPUTS Balanced XLR connectors are wired as described: Pin #1 Shield Pin #2 Positive Pin #3 Negative XLR MALE 2. TRS INPUT Balanced 1/4”...
  • Page 13 POS NEG POS NEG POS NEG POS NEG BRIDGED MONO CONNECTION Wiring a Speaker in Bridged Mono to the Channel 1 Speaker Connector SPEAKER OUTPUTS CHANNEL 2 CHANNEL 1 CH2 BRIDGE POS NEG POS NEG POS NEG POS NEG V-3000/4000...

  • Page 14: Block Diagrams

    PROFESSIONAL POWER AMPLIFIER Block Diagrams Block Diagrams V-3000/4000...

  • Page 15: Specifications

    PROFESSIONAL POWER AMPLIFIER Specifications Specifications V-3000 V-4000 120VAC 230VAC 120VAC 230VAC Rated Output Power 8Ω (1kHz, THD 0.1%) 550W 550W 750W 750W (STEREO) 4Ω (1kHz, THD 0.1%) 1000W 1000W 1300W 1300W 2Ω (1kHz, THD 0.5%) 1600W 1650W 2000W 2100W Rated Output Power 8Ω...

  • Page 16: Service

    To obtain specific warranty information and available service locations contact Inter-M directly or the authorized Inter-M Distributor for your specific country or region.
  • Page 17 NOTE...
  • Page 18 NOTE...
  • Page 20 Inter-M, Ltd. (Korea) began operations in 1983. Since then, Inter-M has grown to become one of the largest manufacturers of professional audio and commercial sound electronics equipment in the world. Inter-M has gained worldwide recognition for its own branded products, as well as private label manufacturing of electronics sold under other names (OEM).
