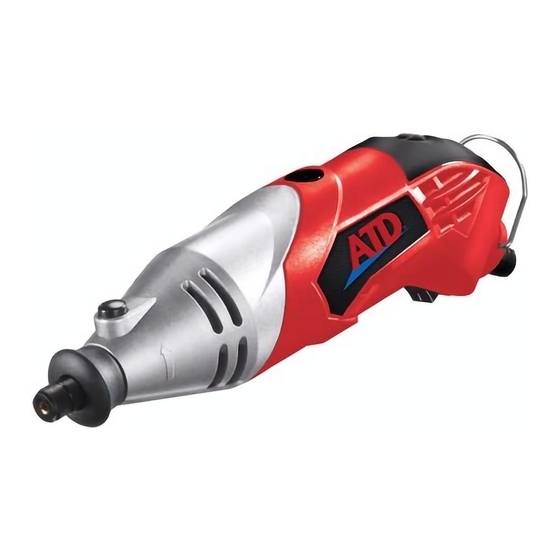

ATD Tools ATD-10531 Owner's Manual

131 piece rotary tool kit
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
131 Piece Rotary Tool Kit
TECHNICAL SPECIFICATIONS:
Motor:
Input:
No load speed:
Collet chuck capacity:
ATD-10531
Owner's Manual
160W
120V ~ 60Hz
8,000 – 35,000 RPM
1/8in.
Made in China to ATD Tools, Inc. Specifications

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ATD-10531 and is the answer not in the manual?

Questions and answers

Related Manuals for ATD Tools ATD-10531

Summary of Contents for ATD Tools ATD-10531

  • Page 1 ATD-10531 131 Piece Rotary Tool Kit Owner’s Manual TECHNICAL SPECIFICATIONS: Motor: 160W Input: 120V ~ 60Hz No load speed: 8,000 – 35,000 RPM Collet chuck capacity: 1/8in. Made in China to ATD Tools, Inc. Specifications...

  • Page 2: Intended Use

    INTENDED USE: The ATD-10531 rotary tool has been designed with the hobbyist in mind and is ideal for intricate work or creative projects. A variety of applications including engraving, grinding, cleaning, polishing, sanding, cutting, carving and drilling can be performed with the ATD-10531 rotary tool. Its flexible drill shaft is ergonomic and allows greater control over the tool.

  • Page 3: Work Area

    C. Use of improper size or gauge of extension cord may cause unsafe or inefficient operation of your tool. Be sure your extension cord is rated to allow sufficient current flow to the motor. For the ATD-10531 use the following chart to determine what size extension cord to use. CORD LENGTH / GAUGE 25’...

  • Page 4: Personal Safety

    ATD-10531 ROTARY TOOL USE AND CARE • Do not force the tool. Tools do a better and safer job when used in the manner for which they are designed.
  • Page 5 NOMENCLATURE: Collet Collet nut Shaft collar Spindle lock Accessible brushes Variable speed dial Hanging ring On/off switch Locking chuck (flexible shaft) 10. Spindle lock hole (flexible shaft) 11. Handle (flexible shaft) 12. Fitting collar (flexible shaft) Page of 13...
  • Page 6 WARNING! Before connecting a tool to a power supply, be sure that the voltage supply is the same as that specified on the nameplate of the tool, with the ATD-10531 it is 120VAC. A power supply with a voltage greater than that specified for the tool can result in serious injury to the user, as well as damage to the tool.
  • Page 7 ATTACHING A SANDING DRUM Loosen the small screw in the top of the sanding drum holder. This allows the rubber to slacken. Slide the sanding drum onto the holder. Secure the sanding drum in place by tightening the screw causing the rubber drum to bulge and grip the drum.
  • Page 8 LED LIGHT ATTACHMENT INSTALLATION: 1. Insert the base of the LED light attachment into the slot on the top of the tool body. 2. The base of the LED light attachment also has a magnet. It can be attached on any metal workpiece during operation.
  • Page 9 TOOL DEPTH GUIDE USE: The rotary tool depth guide can be used for making uniform holes, bevels and edges in your work. Remove the Shaft Collar (3) as shown in fig.1. Insert collet and tool bit and tighten as you would normally as shown in fig.1. Screw depth guide onto rotary tool where the shaft collar used to be, hand tighten and be sure that it is secure but do not over tighten.
  • Page 10 REPAIRS: 1. Only an authorized Electrician or service technician should replace the cord set or make other repairs. If the cord set is damaged or worn, have it repaired or replaced by an authorized Electrician or service technician. 2. When the brushes are worn, the tool will not work. The brushes will need to be replaced. Carbon brushes When the carbon brushes (PRT10531-09) wear out the tool will spark and/or stop.
  • Page 11 Page of 13...

  • Page 12: Warranty

    WARRANTY 1 YEAR LIMITED WARRANTY THIS WARRANTY AND CONFIRMED RECEIPT(S) SHOULD BE RETAINED BY THE CUSTOMER AT ALL TIMES The warranty is only made available by returning the product to the point of sale. PURCHASED FROM: _______________________________________________ DATE PURCHASED: ________________________________________________ INVOICE/RECIEPT NUMBER: _________________________________________ Your ATD10531 is warranted for a period of 12 months from the original date of purchase.
  • Page 13 WARNING Some dust created by power sanding, sawing, grinding, drilling, and other construction activities contains chemicals known to the State of California to cause cancer, birth defects or other reproductive harm. Some examples of these chemicals are: • lead from lead-based paints, •...
