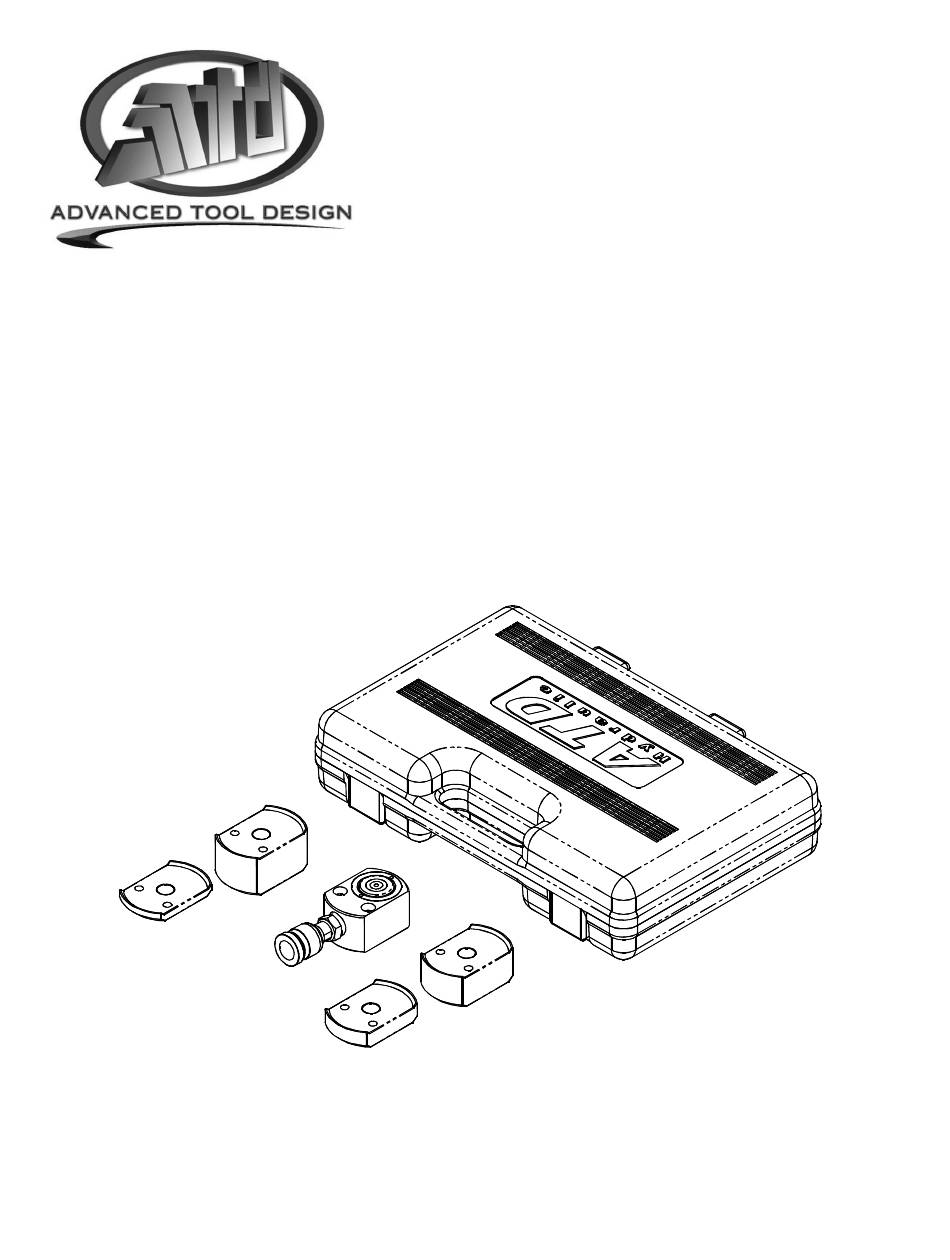

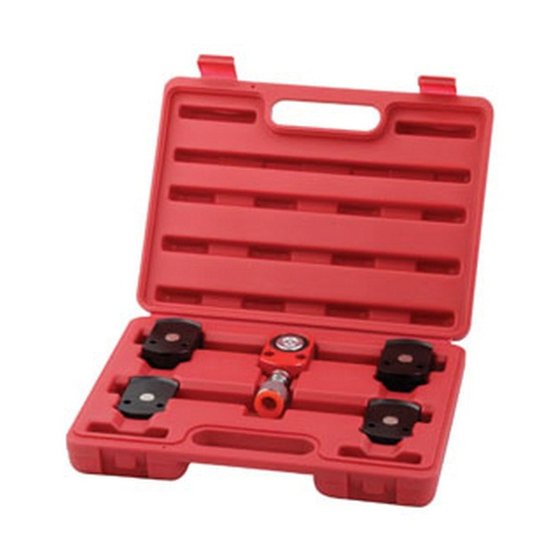

- Page 1 Flat Body Cylinder Kit Instruction Manual Operating Instructions & Parts Manual Model Number Capacity Atd-5825 5 Ton Max. Operating Pressure 10,000 PSI (700 Bar) Atd Tools Inc. 160 Enterprise Drive, Wentzville, MO 63385 OIPM#5825-10-03 Printed in Taiwan...
-
Page 2: Product Description
Height (in) Number (in) Height (in) (lbs) (tons) 0.24 0.26 1.26 1.50 Atd-5825 1.10 1.30 Magnetic adapter's height Adapter I: 0.25 in Adapter II: 0.50 in Adapter III: 1.00 in TYPICAL INSTALLATION Adapter IV: 1.25 in hand pump (not included) -
Page 3: Before Use
BEFORE USE ! DANGER ! 1. Before using this product, read the owner's manual completely and familiarize yourself thoroughly with • If oil leakage is detected, discontinue use of the cylin- the product, its components and recognize the haz- der immediately and contact your nearest ATD Hy- ards associated with its use. - Page 4 WARNING WARNING • To help prevent personal injury, use shims, friction ma- • Do not allow the hose to kink, twist, curl, crush, cut terial or constraints to prevent slippage of the base or or bend so tightly that the fluid flow within the hose is load.
- Page 5 ONE YEAR LIMITED WARRANTY For a period of one (1) year from date of purchase, Atd Tools Inc. will repair or replace, at its option, without charge, any of its products which fails due to a defect in material or workmanship, or which fails to conform to any implied warranty not excluded hereby.
-
Page 6: Troubleshooting Guide
Troubleshooting Guide Symptom Possible Causes Corrective Action • Air in system or pump cavitation • Follow pump instructions for bleeding Erratic action • External leakage in flat body cylinders • Contact Service Center • Cylinder sticking or binding • Contact Service Center •... - Page 7 Available Parts: Please refer to the Parts drawing when ordering parts. Not all components of this kit are replacement items, but are illustrated as a convenient reference of location and position in the assembly sequence. When ordering parts, give Model number, serial number and description below. Model No. Atd-5825 Part No. Description...
- Page 8 Notes Atd Tools Inc. 160 Enterprise Drive, Wentzville, MO 63385 Tel: (636)327-9050 Fax: (636)327-9044 www.atdtools.com...
