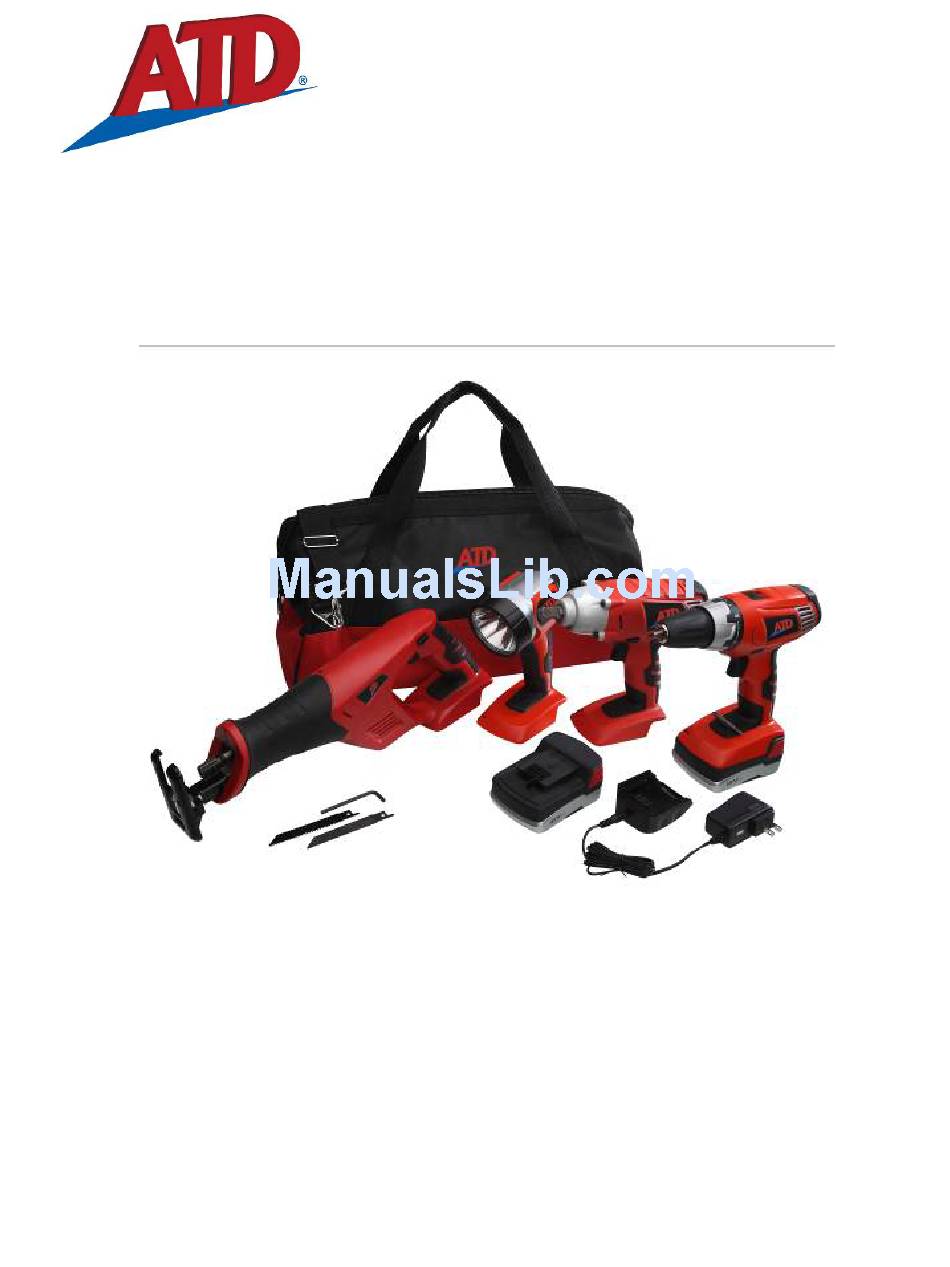

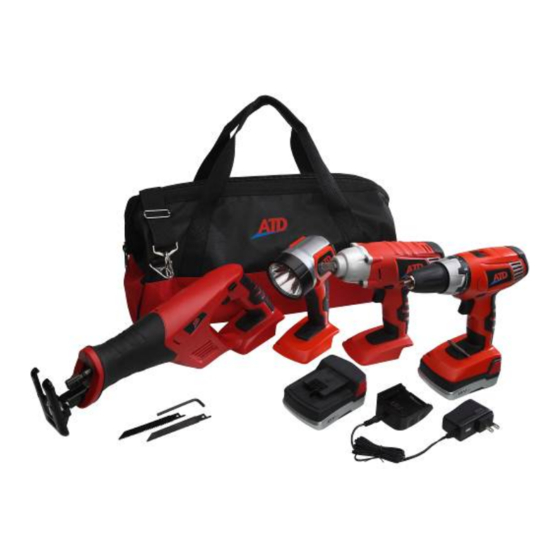

- Page 1 ATD-10528 4PC 18V LITHIUM ION CORDLESS COMBO KIT Instruction Manual...
-
Page 2: Product Specifications
Cordless Drill PRT10528-01 Please read this MANUAL carefully before using the tool. PRODUCT SPECIFICATIONS Rated Voltage 18V DC No-load Speed 0~350 / 0~1200Rpm Chuck ½’’ Jacob Single Sleeve Chuck Max Torque 22N.M (16.2 lb.ft) Torque Setting 19+1 Charge Time 3~5 hours... -
Page 3: Product Features
Product Features 1. LED work light 2. Variable speed trigger 3. Bit holder 4. Battery 5. High/low gear slide switch 6. Forward/Reverse switch 7. Soft grip handle 8. Battery lock button Operation Only use tool bits which can be securely fastened in the chuck and for which the drill has been designed. 1. - Page 4 4. Drilling in Plastic For drilling in plastic use a steel drill bit and follow the same instructions as for drilling in wood. 5. Drilling in Stone, Brick, Masonry For drilling in walls, stone, masonry etc. use a masonry-bit. Do not put too much pressure on the machine. Follow the same instructions as for drilling in metal.
-
Page 5: Cordless Impact Wrench
Cordless Impact Wrench PRT10528-02 PRODUCT SPECIFICATIONS Rated Voltage 18V DC Impact Power 0~3000 Ipm No-load Speed 0~2000 Rpm Anvil Size ½” Rate Torque 230 N.M (169.7 ft.lb) Max Torque 280 N.M (206.6 ft.lb) Charge Time 3~5 hours... - Page 6 Product Features 1. LED work light 2. Variable speed trigger 3. Battery 4. Forward/Reverse switch 5. Soft grip handle 6. Battery lock button Assembly Selecting Correct Socket Always use the correct size socket for bolts and nuts. An incorrect size socket will result in inaccurate and inconsistent fastening torque and /or damage to the bolt or nut.
- Page 7 Cordless Reciprocating Saw PRT10528-05 Technical Data Rated Voltage DC 18V No-load Speed 0-2800/min Stroke length 22mm (0.87’’) Charging Time 3-5 hours Product Features 1. Adjustable pivoting blade shoe 2. Soft touch front handle 3. Variable speed trigger switch 4. Battery 5.
- Page 8 ASSEMBLY WARNING: Always remove battery pack from your saw when you are assembling parts, making adjustments, assembling or removing blades, cleaning, or when not in use. Removing battery pack will prevent accidental starting that could cause serious personal injury. Inserting/Removing Battery Pack TO INSERT: 1.
- Page 9 GENERAL CUTTING (Fig. 6) Hold your saw firmly in front of and clearly away from you. Make sure saw blade is clear of any foreign material. Be sure material to be cut is held firmly. Small work pieces should be securely clamped in a vise or with clamps to the work bench or table.
- Page 10 METAL CUTTING (Fig. 8) Metals such as sheet steel, pipe, steel rods , aluminum, brass and copper may be cut with your saw. Be careful not to twist or bend the saw blade. Do not force. We recommend cutting oil when cutting most soft metals and steel.
-
Page 11: Tool Operation
Cordless Light PRT10528-06 1. Rotatable 90°head 2. On/off switch 3. Soft grip handle 4. Battery 5. Battery lock button Technical Data Rated Voltage DC 18V LED Light power Charging Time 3-5 hours Battery 1300mAh Tool Operation The ON/OFF Switch Turn cordless flash light ON by depressing the switch. To turn the tool OFF, release the switch. Remove Battery Pack Press the battery-lock button and pull downward. - Page 12 Charger PRT10528-04 _____________________ Technical Data Model HP2270380B Rated Input Voltage AC 100-120V, 60Hz Rated Input Power Max 0.25A Rated Output Voltage DC 22.7V Rated Output Current 380mA Charging Time 3-5hours Protection Class II Indoor operation only Battery PRT10528-03 __________________...
- Page 13 Operation To Charge the Battery 1. Connect the charger cord to the charger base 2. Firmly insert battery pack onto charger base 3. Plug the battery charger (adapter) to power source (100-120V / 60Hz). 4. The Red LED light on the charger base will come on when the unit is plugged in and has power. 5.
-
Page 14: Battery Protection
To Detach Battery Pack Depress both battery-release buttons located on the side of the battery pack to release the battery pack. Slide the battery pack back to remove it from the tool. CAUTION: When placing battery pack in your cordless impact wrench, be sure raised rib on battery pack aligns with groove in wrench’s battery port and latches snap in place properly. - Page 15 2) Electrical safety a) Power tool plugs must match the outlet. Never modify the plug in any other way. Do not use any adapter plugs with electrically grounded power tools. Unmodified plugs and matching outlets will reduce risk of electric shock. b) Avoid body contact with electrically grounded surfaces such as pipes, radiators, ranges and refrigerators.
- Page 16 c) Disconnect the plug from the power source before making any adjustments, changing accessories, or storing power tools. Such preventive safety measures reduce the risk of starting the power tool accidentally. d) Make sure the stored, idle power tools are out of the reach of children and do not allow persons unfamiliar with the power tool or these instructions to operate the power tool.
