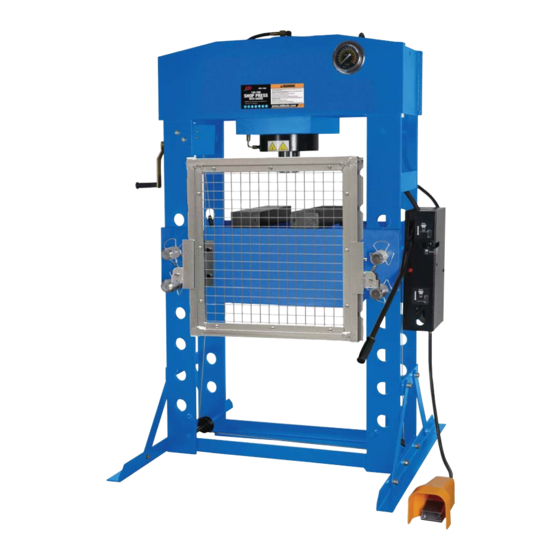

ATD Tools ATD-7463 Owner's Manual

100 ton shop press with guard
Hide thumbs Also See for ATD-7463:

Advertisement

Quick Links

Download this manual
Features:
• Fully welded frame for maximum strength and durability
• Double speed pump for improved efficiency
• Foot control air valve allows effortless, hands free operation of air motor
• Cylinder can be moved left or right for applying pressure exactly where it's needed
• Press bed adjusted by worm drive for easier raising and lowering
• 6 Position bed allows work height adjustment of 5.5" each
• Large oil filled anti shock pressure gauge with stainless steel frame scale for US and metric tons
• Patented safety valve for longer service life
• Includes a set of Non-Slip steel V blocks for safer operation
• Includes protective work guard for added safety
• Meets or exceeds ASME/PASE 2019 standards

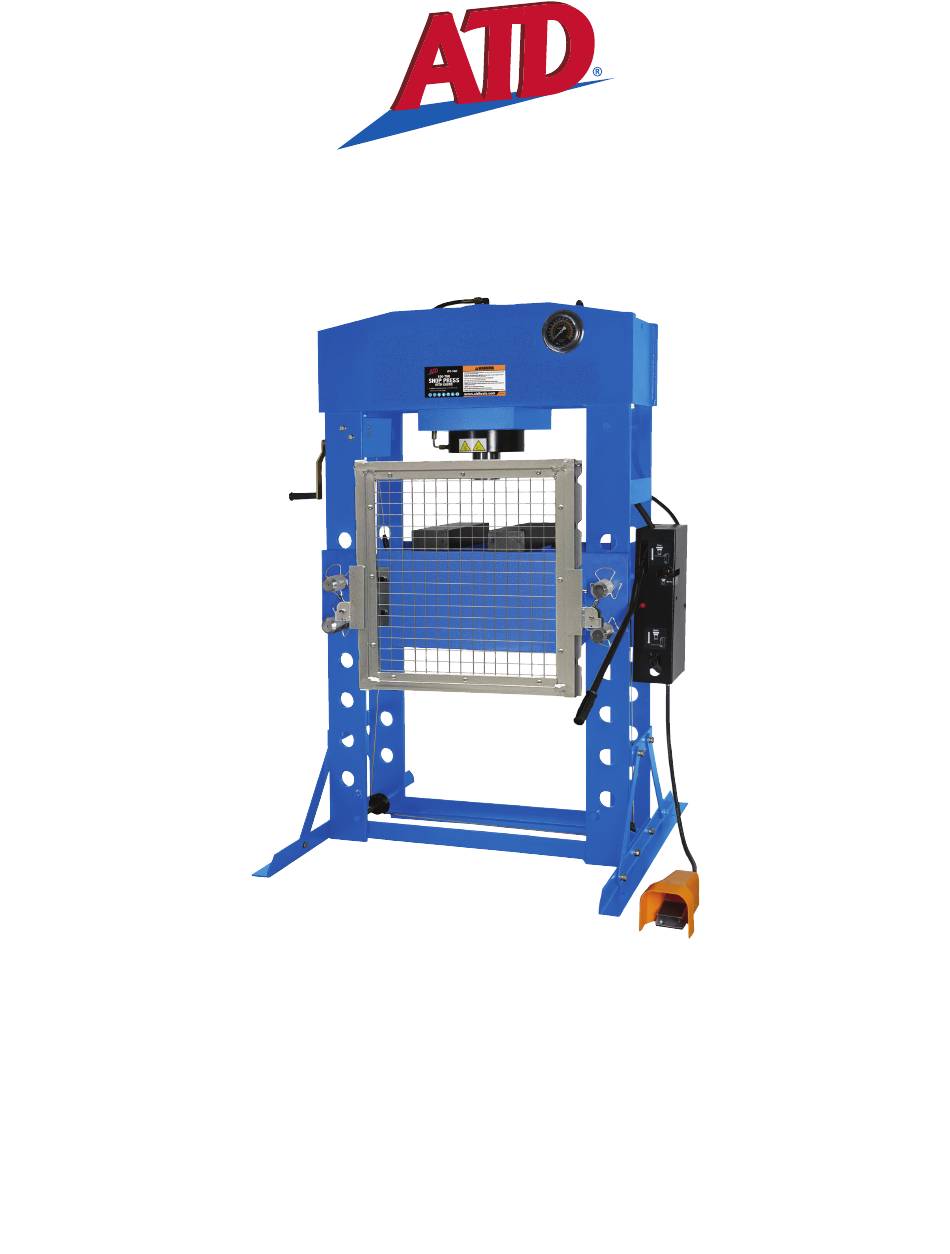

ATD-7463
100 Ton Shop Press With Guard
Owner's Manual
Made in China to ATD Tools, Inc. Specifications
Visit us at www.atdtools.com
Specifications:
•Capacity: 100 Ton
• Hydraulic stroke: 11.75"
• Working Range: 4.38" to 32"
• Horizontal Ram Travel 10"
• Bed Width: 31"
• Bed Positions: 6
• Press Size: 57.8" W x 39" D x 72.75" H
• Air Pressure: 110 to 120 psi
• N.W. Press and Guard: 1702.8 lbs
before using this product.
ATD7463_rev_0125

Advertisement

loading
Need help?

Need help?

Do you have a question about the ATD-7463 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for ATD Tools ATD-7463

Summary of Contents for ATD Tools ATD-7463

  • Page 1 • Includes a set of Non-Slip steel V blocks for safer operation • N.W. Press and Guard: 1702.8 lbs • Includes protective work guard for added safety before using this product. • Meets or exceeds ASME/PASE 2019 standards Made in China to ATD Tools, Inc. Specifications ATD7463_rev_0125 Visit us at www.atdtools.com...

  • Page 2: Safety Requirements

    Read this manual and follow all Safety Rules and Operating Instructions The safety alert symbol is used to alert you to potential personal injury hazards. Obey all safety messages that follow this symbol to avoid possible injury or property damage. SAFETY REQUIREMENTS Make sure to read, understand, and strictly follow all satety related instructions before operation or maintenance of this press.

  • Page 3: Unpacking And Inspection

    CAUTION A working area of 3 feet is to be kept free both in front of and behind the press while it is in operation so that it is always easily accessible. CAUTION UNPACKING AND INSPECTION When opening the packaging, be sure to use the proper tools, wear protective clothes, gloves and safety helmet. Make sure that the press and parts in the box are complete and identical with the parts list.

  • Page 4: Operation

    Figure 1 Figure 2 Figure 3 Figure 4 9. Insert the ram handle (#12) to the connecting shaft (M1). (Figure 5). 10. Turn the handle clockwise to move ram left (Direction A), and counterclockwise to move ram right (Direction B). 11.

  • Page 5: Maintenance

    OPERATING THE SHOP PRESS WARNING! Ensure that you read and understand and apply the safety instructions and warnings before first use. 1. Lift or lower the working bed (#19) until it is in position. Insert bed pins (#21) into the left and right posts and lock in the retaining rings (#22). 2.
  • Page 6 3. To bleed using air, connect the air coupler (#P52) of the foot valve to the workshop compressor supply hose. Move the selector valve lever (I) to position 2, then depress the air foot valve (#P54) for no less than two minutes. Move the selector valve lever (I) to position 3, then depress the air foot valve (#P54), keeping the air motor working and check if the ram is working properly;...

  • Page 7: Replacement Parts

    REPLACEMENT PARTS Not all components of this product are replacement items, but are illustrated as a convenient reference for position in the assembly sequence. When ordering parts, give model number, part number and description. Call your distributor for current pricing:...
  • Page 8 PUMP P 6 1 3 P3 P 2 P2 P2 P 3 P3 P 2 P2 P2 P2 P...

  • Page 9: Troubleshooting

    ITEM# ORDERING PART# PART DESCRIPTION ITEM# ORDERING PART# PART DESCRIPTION PRT7463-P45 MANUAL SELECTOR VALVE PRT7463-49-64 PUMP HANDLE PRT7463-21 BED PIN PRT7463-22 RETAINING RING PRT7463-P31-P47 UPPER HANDLE SOCKET ASSY PRT7463-SK SEAL KIT PRT7463-P42-P47 LOWER HANDLE SOCKET ASSY PRT7463-R22 SERRATED SADDLE PRT7463-P54 AIR VALVE PRT7463-46 OIL HOSE 4...
  • Page 10 PREVENTATIVE MAINTENANCE RECORD LOG DATE MAINTENANCE PERFORMED...

  • Page 11: Year Limited Warranty

    Your ATD-7463 is warranted for a period of 12 months from the original purchase date. For a period of one (1) year from your purchase date, ATD Tools Inc. will repair or replace (at its option) without charge, your ATD product if it was purchased new and the product has failed due to a defect in material or workmanship which you experienced during normal use of the product.
