Installation for Capture and Playback

Connecting to your PCIe Mac or PC
1. Shut down and remove the power plug from the back of your computer. This is a safety precaution
before opening your computer. Ensure that you are statically discharged by using a static strap.
2. Remove the side cover of your computer to gain access to the PCI Express slots.
3. Remove your Intensity Pro card from the protective static bag making sure you don't touch the
gold connectors on the base of the card.

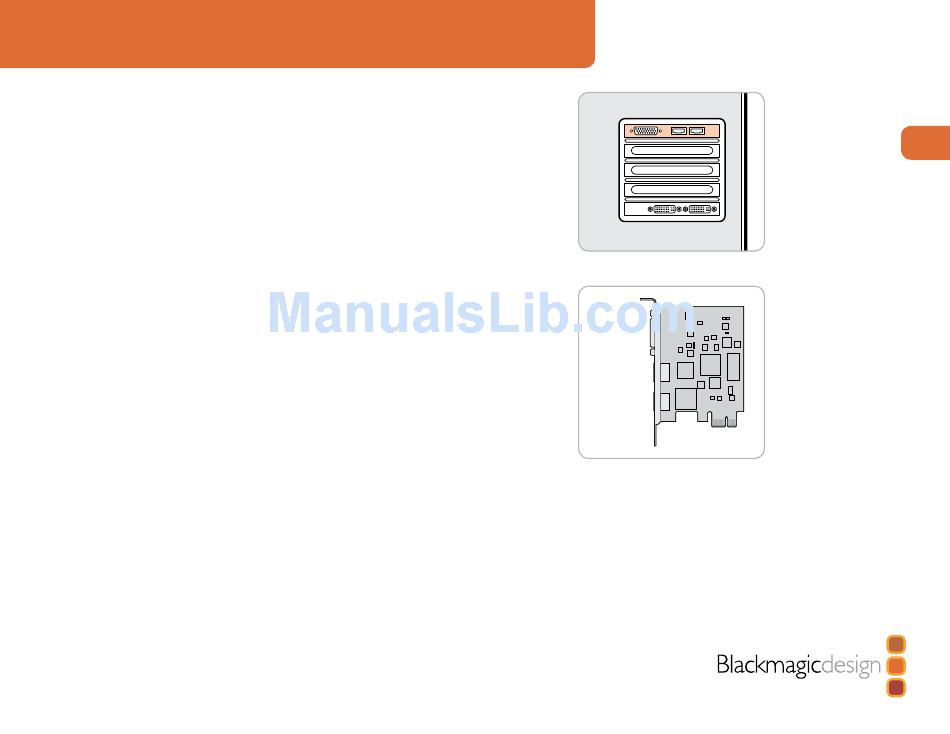

4. Find a spare PCI Express slot within the computer, any slot will do. Intensity Pro is a PCI Express
1 lane card and is compatible with 1,4,8 and 16 lane PCIe slots. Remove the metal port access
cover and it's screw from the back of your computer.
5. Insert your Intensity Pro PCI Express card and ensure it clicks firmly into place.
6. Secure the card with a screw and replace the side cover of your computer.
7. Connect HDMI devices, such as HDV cameras to Intensity Pro's HDMI input.
8. Connect HDMI compatible large screen televisions or projectors to the HDMI output.
Note: This is also a great time to install disk arrays and extra memory into your computer.
