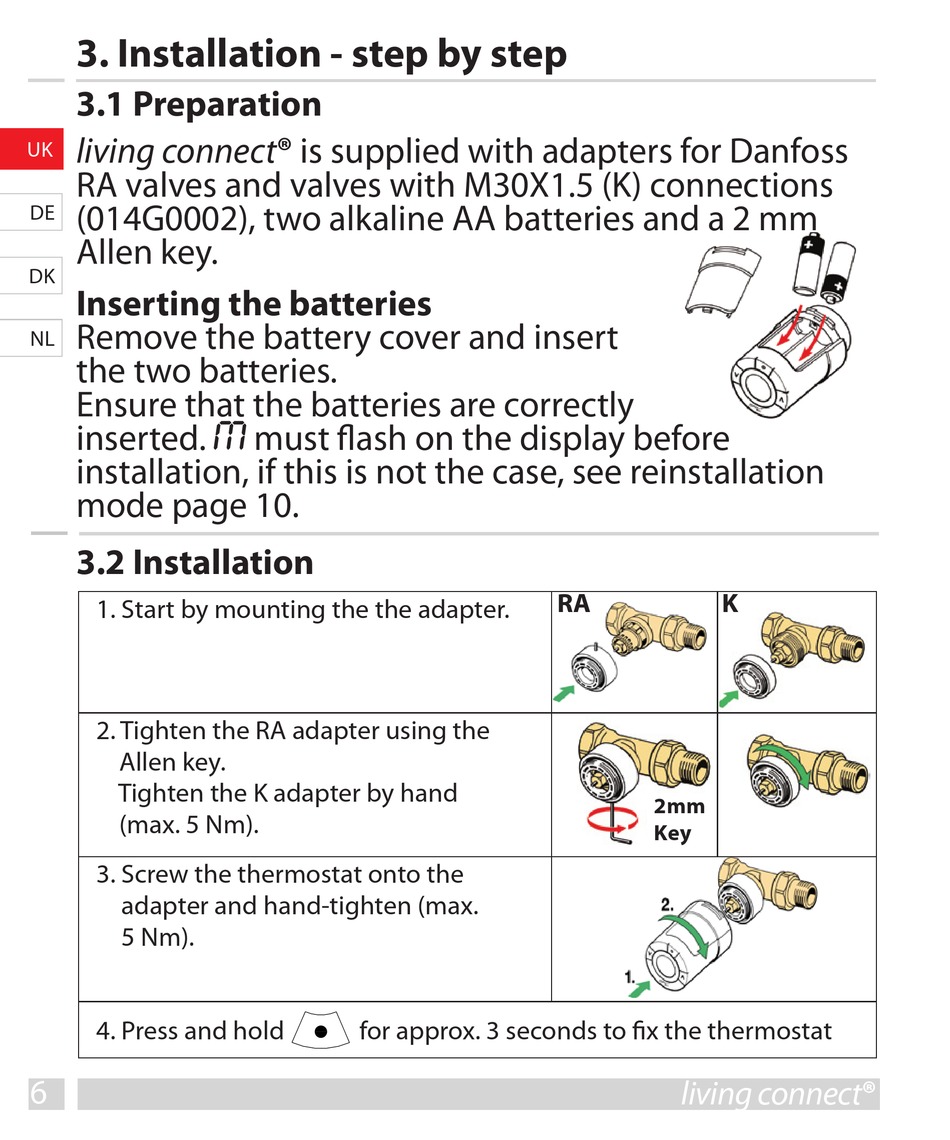

3. Installation - step by step

3.1 Preparation
living connect® is supplied with adapters for Danfoss
UK
RA valves and valves with M30X1.5 (K) connections
(014G0002), two alkaline AA batteries and a 2 mm
DE
Allen key.
DK
Inserting the batteries
Remove the battery cover and insert
NL
the two batteries.
Ensure that the batteries are correctly
inserted. M must flash on the display before
installation, if this is not the case, see reinstallation
mode page 10.
3.2 Installation
1. Start by mounting the the adapter.
2. Tighten the RA adapter using the
Allen key.
Tighten the K adapter by hand
(max. 5 Nm).
3. Screw the thermostat onto the
adapter and hand-tighten (max.
5 Nm).
4. Press and hold
6
for approx. 3 seconds to fix the thermostat
RA K
2mm
Key
living connect®
