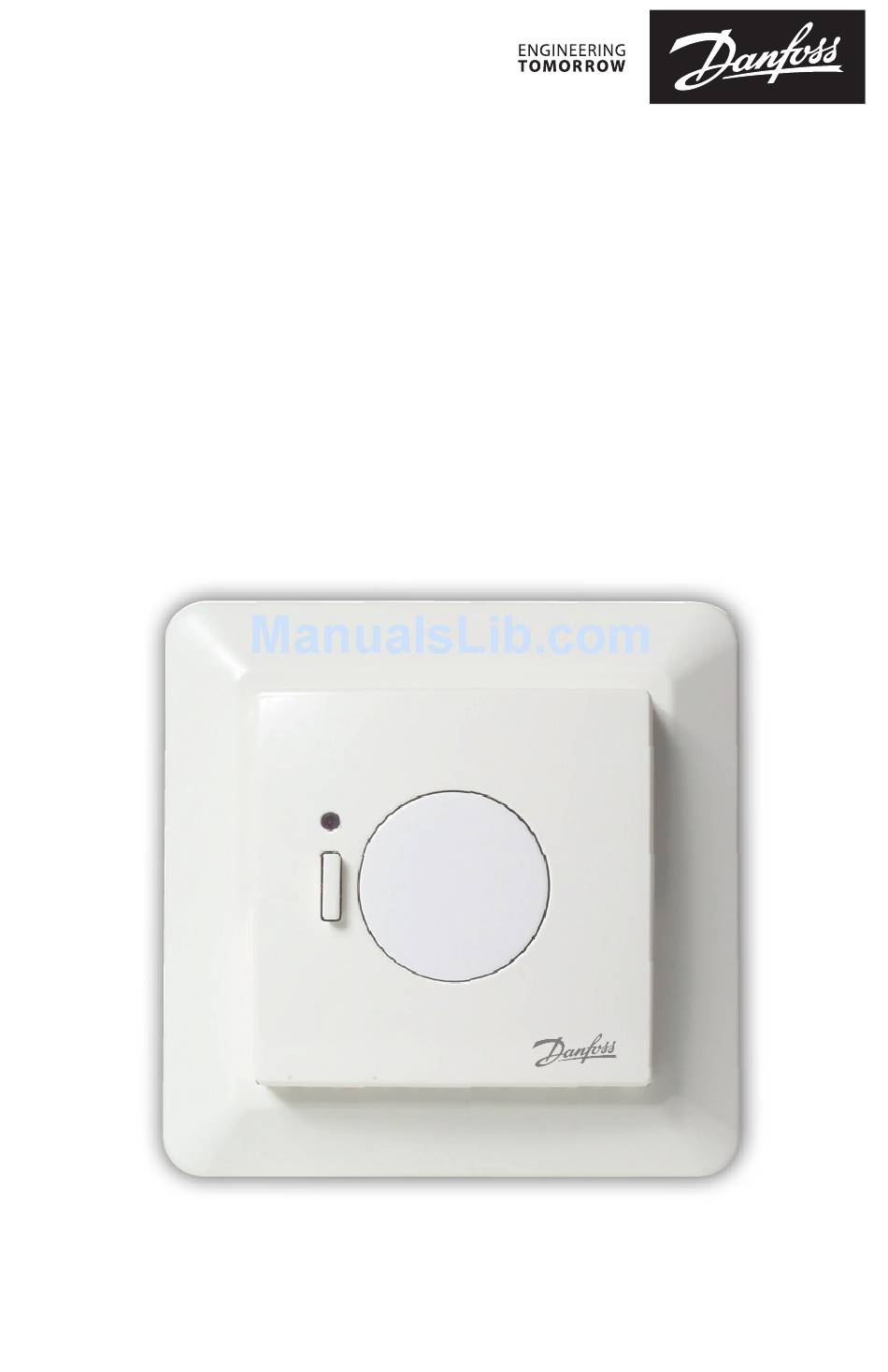

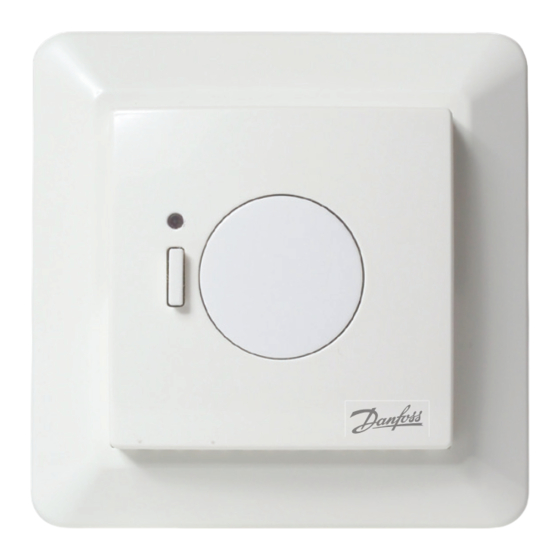

- Page 1 Installation Guide Danfoss Link™ FT Floor Thermostat electricheating.danfoss.com...
-
Page 2: Table Of Contents
Introduction � � � � � � � � � � � � � � � � � � � � � 2 Placement of Danfoss Link™ FT � � � � � � � � � 4 Operation mode ....4 Sensor combination . - Page 3 Danfoss Link™ FT Installation scenario: Danfoss Link™ CC Danfoss Link™ RS Danfoss Link™ FT Push and hold for 5 sec. to install/connect ON/OFF safety switch Installation Guide...
-
Page 4: Placement Of Danfoss Link™ Ft
When used as simple ON/OFF mode do not connect floor sensor. 2�2 Sensor combination When installing the Danfoss Link™ FT you need to consider the type of heating and thus which sensors should be used. There are three options: Installation Guide... - Page 5 You must install a Danfoss Link™ RS. Choose Room regulation. Be aware that temperature control is less accurate without the floor sensor and that all Danfoss Link™ FTs in a room need to have the same sensor configuration. Danfoss recommends always installing a floor sensor.
-
Page 6: Installation
Danfoss Link™ FT Installation 1. To remove the front cover, gently press the release tabs under the bottom of the thermostat with a screw- driver. Then remove the front. 2. Connect the thermostat according to the connection diagram. LOAD LOAD... -
Page 7: Configuration
Danfoss Link™ FT 3�1 Configuration See Step-by-Step guide in Danfoss Link™ CC instruction manual. Green LED ON Standby Red LED ON Heating Green LED fast flash Inclusion or link test Red LED short flash Inclusion not OK, goes to not included. - Page 8 Danfoss Link™ FT Relay: • Resistive load 230 V ~ 15 A / 3450 W cos ϕ = 0.3 Max. 1 A • Inductive load Sensing unit NTC 15 kOhm at 25°C Sensing values: • 0°C 42 kOhm • 20°C 18 kOhm •...
-
Page 9: Warranty
Danfoss Link™ FT Warranty Disposal instructions Installation Guide... - Page 10 Danfoss Link™ FT Installation Guide...
- Page 11 E-mail: EH@danfoss.com htttp://electricheating.danfoss.com Danfoss can accept no responsibility for possible errors in catalogues, brochures and other printed material. Danfoss reserves the right to alter its products without notice. This also applies to products already on order provided that such alterations can be made without subsequential changes being necessary in specifications already agreed. All trademarks in this material are property of the respective companies.
