Ovation 214 User Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

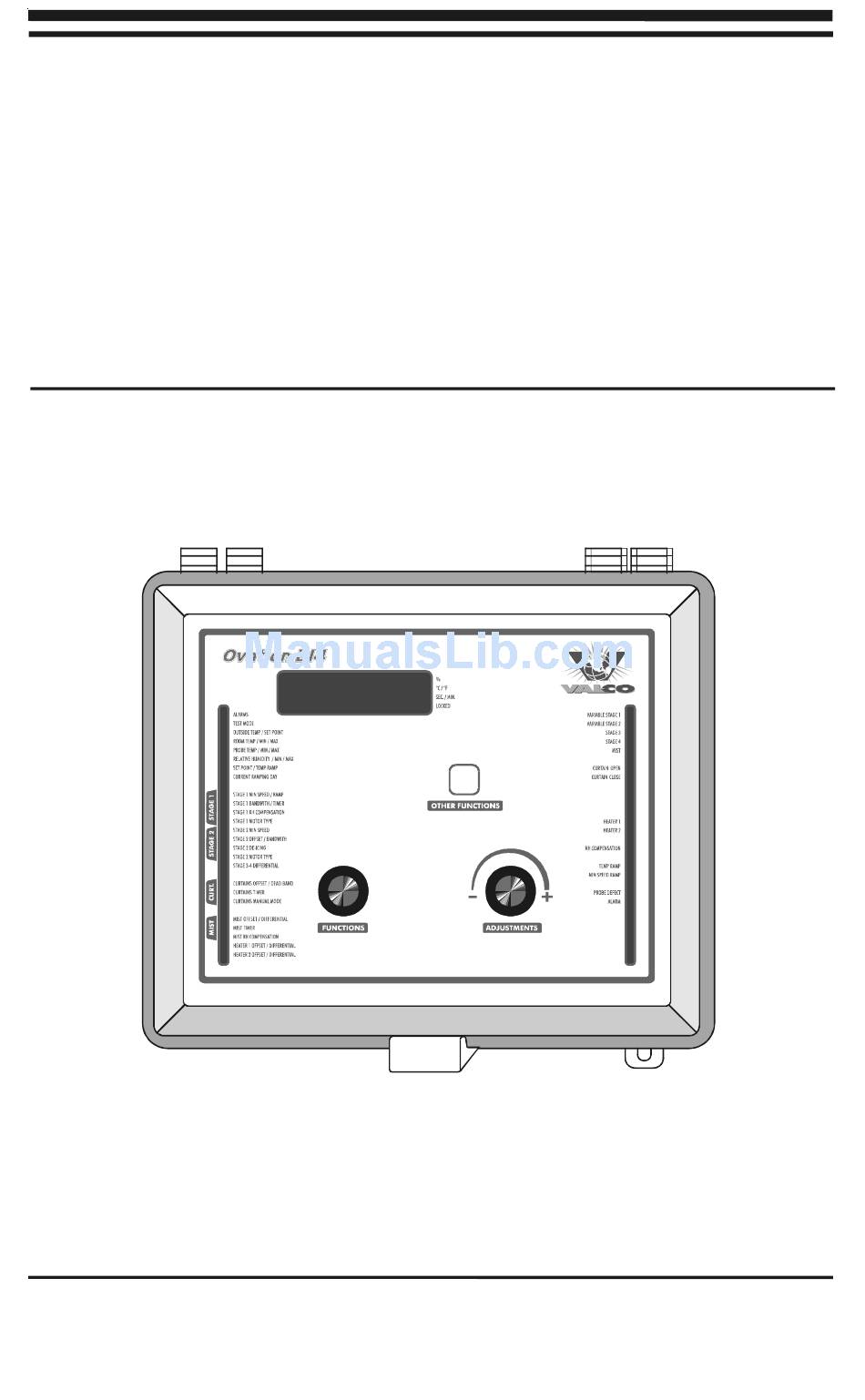

Temperature Controller
OVATION 214
User's Guide
Read this guide carefully before using the controller.
890-00045
rev.00

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 214 and is the answer not in the manual?

Questions and answers

Summary of Contents for Ovation 214

  • Page 1 Temperature Controller OVATION 214 User's Guide Read this guide carefully before using the controller. 890-00045 rev.00...

  • Page 2: Table Of Contents

    Principle of Operation ............42 Settings ................45 HEATER SETTINGS ..............48 ALARM SETTINGS ..............52 TEST MODE ................54 TROUBLESHOOTING GUIDE ............. 55 TECHNICAL SPECIFICATIONS ..........59 FACTORY SETTINGS ............... 60 MEMORY CARD ..............61 GLOSSARY ................64 OVATION 214 rev.00...

  • Page 3: Precautions

    DO NOT SPRAY WATER ON THE CONTROLLER FOR CUSTOMER USE Enter the serial number located on the side of the controller below for future reference. Model number: OVATION 214 Serial number: OVATION 214 rev.00...

  • Page 4: Features

    OVATION 214 FEATURES he OVATION 214 is an electronic device used for environmental control in livestock buildings. It allows the user to maintain a specified target temperature by controlling the operation of ventilation and heating equip- ment. Two stages of variable speed fans, two stages of constant speed fans, one curtain as well as foggers and heaters can be connected to the controller.
  • Page 5 CONTROL OF AIR INLET MOVEMENT If the OVATION 214 is used in combination with a DWR-F-1A controller, the movement of the air inlets can be coordinated with the operation of the fans using a potentiometer located on the panel drive. This allows the air inlets to be adjusted correctly, without the influence of uncontrollable factors such as wind or air from adjoining rooms.

  • Page 6: Location Of The Controls

    OVATION 214 LOCATION OF THE CONTROLS OVATION 214 rev.00...

  • Page 7: Controller Status Leds

    Probe 4 enabled 2 heaters & 0 mist 1 heater & 1 mist Adjustable hysteresis Fix hysteresis of 2.0°F Cascading heaters Zoned heaters De-icing disabled De-icing enabled Reserved Reserved Switch from OFF to ON to acces the transfer menu OVATION 214 rev.00...

  • Page 8: Installation

    ALL WIRING MUST BE DONE BY AN AUTHORIZED ELECTRI- CIAN AND MUST COMPLY WITH APPLICABLE CODES, LAWS :$51,1* AND REGULATIONS. BE SURE POWER IS OFF BEFORE DOING ANY WIRING TO AVOID ELECTRICAL SHOCKS AND EQUIP- MENT DAMAGE. OVATION 214 rev.00...

  • Page 9: Motor Types

    "tYPE". • Press the push-button once. The motor type flashes. • Use the adjustment knob to adjust the motor type to the desired value. • Press the push-button once again to validate the new value. OVATION 214 rev.00...

  • Page 10: Temperature Probes

    ON: Switch # 3 activates the probe connected to input # 2. Switch # 4 activates the probe connected to input # 3. Switch # 5 activates the probe connected to input # 4. OVATION 214 rev.00...
  • Page 11 "P". • Press the push-button to step to the following probe. • Proceed as explained above to make sure all probes are in working order. OVATION 214 rev.00...

  • Page 12: Changing The Parameter Settings

    (ii) If, after about 6 seconds, no action is taken by the user, the absolute temperature value is displayed, alternating with "St 3 On". In this case, the absolute value is: Set Point + Bandwidth 1 + Offset 2 + Bandwidth 2 + Differential 3. OVATION 214 rev.00...

  • Page 13: Locking The Parameter Settings

    To lock the parameter settings: • Set internal switch # 1 to ON. The Locked Parameter Pilot Light turns on. To unlock the parameter settings: • Set internal switch # 1 to OFF. The Locked Parameter Pilot Light turns off. OVATION 214 rev.00...

  • Page 14: Temperature Settings

    • Set the function to ROOM TEMP MIN / MAX. The aver- age room temperature is displayed. Viewing the Outside Temperature • Set selection knob to OUTSIDE TEMPERATURE. The out- side temperature is displayed. OVATION 214 rev.00...
  • Page 15 "P" instead of displaying a temperature. NOTE: If you let the display flash for more than 10 seconds, the controller resets the min and max temperatures currently in memory (the display stops flashing to indicate the reset has been done). OVATION 214 rev.00...
  • Page 16 NOTE: If you let the display flash for more than 10 seconds, the controller resets the minimum and maximum temperatures of the selected probe (the display stops flashing to indicate that the reset has been done). OVATION 214 rev.00...

  • Page 17: Temperature Set Point

    • Use the adjustment knob to adjust the set point to the de- sired value. NOTE: The temperature set point can only be adjusted while the temperature ramp is deactivated (see following section). OVATION 214 rev.00...

  • Page 18: Temperature Ramp

    Certain restrictions apply to reduce the risk of errors: - The highest possible day number is 255. - Decreasing day numbers are not allowed. - Increasing temperatures are not allowed. - The temperature variation cannot exceed 3°F (1.6°C) per day. OVATION 214 rev.00...
  • Page 19 "t0". • Using the adjustment knob, adjust the set point of the first point of the ramp to the desired value. Once all points of the ramp are defined, activate the ramp as ex- plained below. OVATION 214 rev.00...
  • Page 20 OFF appears (twenty-one clicks). • Turn the adjustment knob clockwise one notch. The word ON flashes on the display and the Temperature Ramp Pilot Light is lit, indicating that the temperature ramp is now acti- vated. OVATION 214 rev.00...
  • Page 21 ON appears (twenty-one clicks). • Turn the adjustment knob counterclockwise one notch. The word OFF flashes on the display and the Temperature Ramp Pilot Light turns off indicating that the temperature ramp is now deactivated. OVATION 214 rev.00...

  • Page 22: Ventilation Settings

    OVATION 214 VENTILATION SETTINGS Cooling Operation The OVATION 214 controls two stages of variable-speed fans (Stage 1 - 2) and two stages of constant-speed fans (Stage 3-4). VENTILATION LEVEL STAGE 4 STAGE 3 STAGE 2 STAGE 1 Bandw. Offset Bandw.
  • Page 23 At Set Point + Bandwidth 1 + Stage 2 Offset - 0.3°F: stage 2 fans return to a stop. • At Set Point + Bandwidth 1: Stage 1 fans start decreasing in speed as the temperature decreases. OVATION 214 rev.00...
  • Page 24 2°F (1.1°C) below their respective differen- tial. Set the internal switch #7 to ON to activate this function. Ventilation Level stage 4 stage 3 stage 2 Hysteresis Hysteresis Room T° 2°F 2°F Bandwidth Differential Differential Stage 2 Stage 3 Stage 4 OVATION 214 rev.00...

  • Page 25: Minimum Ventilation Cycle

    2. To stop the fans, set the Time On to zero and Time Off to any value. 3. To run the fans intermittently, set the Time On to the de- sired running time and Time Off to the desired off time. OVATION 214 rev.00...
  • Page 26 Use the adjustment knob to adjust the Time On to the de- sired value. • Press the push-button. The current Time Off of stage 1 flashes on the display "t. Off". • Use the adjustment knob to adjust the Time Off to the de- sired value. OVATION 214 rev.00...

  • Page 27: Humidity Compensation

    Stage 1 Min. Speed 100% Compensation begins Compensation % Normal Min. Speed 10 % Relative Relative Humidity Humidity Set Point When a compensation is applied to the minimum speed, the compen- sation pilot light turns on. OVATION 214 rev.00...
  • Page 28 Set the function to STAGE 1 RH COMPENSATION. The rela- tive humidity set point is displayed alternating with the let- ters "Set". • Use the adjustment knob to adjust the set point to the de- sired value. OVATION 214 rev.00...
  • Page 29 "Set". • Press the push-button twice. The current on/off state of hu- midity compensation flashes on the display. • Use the adjustment knob to adjust the on/off state to the desired value. OVATION 214 rev.00...

  • Page 30: Minimum Ventilation Speed Ramp

    Certain restrictions apply to reduce the risk of errors: • decreasing minimum speeds are not allowed. • the min. speed variation cannot exceed 10% per day. OVATION 214 rev.00...
  • Page 31 Press the push-button once again. The minimum speed of the first point (point 0) is displayed "P0 x" where x repre- sents the speed. • Use the adjustment knob to adjust the minimum speed of the first point of the ramp to the desired value. OVATION 214 rev.00...
  • Page 32 OFF appears (twenty-one clicks). • Turn the adjustment knob clockwise by one notch. The word ON flashes on the display and the Minimum Speed Ramp Pilot Light turns on, indicating that the minimum speed ramp is now activated. OVATION 214 rev.00...
  • Page 33 ON appears (twenty-one clicks). • Turn the adjustment knob counterclockwise by one notch. The word OFF flashes on the display. The Minimum Speed Ramp Pilot Light turns off, indicating that the minimum speed ramp is now deactivated. OVATION 214 rev.00...

  • Page 34: Differential Settings

    0.5°F and 20.0°F (0.5°C and 11.1°C). • Set the function to STAGE 2 OFFSET/BANDWIDTH. The current offset of Stage 2 flashes on the display, alternating with the letters "OFSET". • Use the adjustment knob to adjust the offset to the desired value. OVATION 214 rev.00...
  • Page 35 Set the function to STAGE 2 MIN SPEED. The minimum speed of stage 2 flashes on the display, alternating with the letters "SPEEd". • Use the adjustment knob to adjust the minimum speed to the desired value. OVATION 214 rev.00...
  • Page 36 Use the adjustment knob to adjust it to the desired value. • Press the push-button. The current differential of Stage 4 flashes on the display, alternating with the letters "4 diF". • Use the adjustment knob to adjust it to the desired value. OVATION 214 rev.00...

  • Page 37: De-Icing Of Stage 2 Fans

    On Time. • Set the function to STAGE 2 DE-ICING the current de-icing cycle time is displayed, alternating with the letters "CYCLE". • Use the adjustment knob to adjust the cycle time to the de- sired value. OVATION 214 rev.00...
  • Page 38 "CYCLE". • Press the push-button. The current de-icing time is displayed, alternating with the letters "t On". • Use the adjustment knob to adjust the de-icing time to the desired value. OVATION 214 rev.00...

  • Page 39: Mist Cooling

    Mist units start running according to a timer cycle (Time On and Time Off) when their start temperature is reached (Set Point + Mist Offset + Differential). If the humidity compensation is activated, the mist units are shut off when the humidity level is too high. OVATION 214 rev.00...
  • Page 40 It can be adjusted between 0.5°F and 20.0°F (0.3°C and 11.1°C). • Set the function to MIST OFFSET/DIFFERENTIAL. The mist offset is displayed, alternating with the letters "OFSEt". • Using the adjustment knob, set the offset to the desired value. OVATION 214 rev.00...
  • Page 41 Set the function to MIST RH COMPENSATION. The humid- ity level above which mist units turn off is displayed, alter- nating with the letters "rH OFF". • Use the adjustment knob to set the humidity level over which the mist stage stops operating. OVATION 214 rev.00...

  • Page 42: Natural Ventilation

    OVATION 214 NATURAL VENTILATION Principle of Operation The OVATION 214 controls one curtain output. The following graphic shows how this output operates: The curtain opens The curtain closes in timer mode in timer mode Dead Band Offset Temperature Set Point = 75...
  • Page 43 If the temperature rises to 79.3 F, the curtain stops closing. The curtain closes intermittently according to the time on and time off settings: TIME ON CLOSE STOP CLOSING TIME OFF OVATION 214 rev.00...
  • Page 44 The lower the outside temperature, time on increases, causing the curtain to close faster. NOTE: If, after compensation, the time off value is less than or equal to ten seconds, it is set to zero. OVATION 214 rev.00...

  • Page 45: Settings

    1. • Set the selection knob to CURTAIN — OFFSET/DEAD BAND. The curtain offset flashes on the display, alternating with the letters "OFSEt". • Use the adjustment knob to set the offset to the desired value. OVATION 214 rev.00...
  • Page 46 Use the adjustment knob to set the ON time to the desired value. • Press the push-button. The OFF time is displayed, alternat- ing with the letters "t OFF". • Use the adjustment knob to set the OFF time to the desired value. OVATION 214 rev.00...
  • Page 47 Set the selection knob to OUTSIDE TEMP / SET POINT. The current outside temperature is displayed. • Press the push-button twice. The current on/off status of the outside compensation feature is displayed. • Use the adjustment knob to enable or disable the compensa- tion function. OVATION 214 rev.00...

  • Page 48: Heater Settings

    If the room temperature falls: - at Set Point - Heater 1 Offset - Heater 1 Differential: Heater 1 turns on. - at Set Point - Heater 1 Offset - Heater 1 Differential - Heater 2 Differential: Heater 2 turns on. OVATION 214 rev.00...
  • Page 49 1 may be insufficient. A built-in protection will operate the fans ac- cording to the probes of the zone with the highest temperature when- ever the temperature difference between zones is greater than a user-defined value. OVATION 214 rev.00...
  • Page 50 If the room temperature falls: at Set Point - Heater Offset 1 - Differential 1 (Probes 1-2): Heater 1 turns on. at Set Point - Heater Offset 2 - Differential 2 (Probe 3-4): Heater 2 turns on. OVATION 214 rev.00...
  • Page 51 HEATER 2 OFFSET/DIFFERENTIAL The current heating off- set is displayed, alternating with the letters "OFSEt". • Press the push-button. The differential is displayed, alternat- ing with the letters "diF". • Use the adjustment knob to adjust the differential to the de- sired value. OVATION 214 rev.00...

  • Page 52: Alarm Settings

    The temperature alarm can either be set off if the average tem- perature exceeds the limits or if the reading of a single probe ex- ceeds the limit. Room High Temperature Alarm Temperature High Alarm Offset Set Point Low Alarm Offset Time OVATION 214 rev.00...
  • Page 53 Use the adjustment knob to select "ALL" for an alarm to sound when the average temperature exceeds the defined high or low limits; select "Ind" for alarm to sound when the reading of an individual probe exceeds the high or low temperature limits. OVATION 214 rev.00...

  • Page 54: Test Mode

    Once the test mode is enabled, press the push button. The test mode temperature is displayed, alternating with the let- ters "tSt". NOTE: If no user activity is recorded after 4 minutes in test mode, the controller automatically exits from the test mode. OVATION 214 rev.00...

  • Page 55: Troubleshooting Guide

    There is electrical Do not run probe cables next to perature. noise near an ex- other power cables. When tended probe cable. crossing other power cables, cross at 90 OVATION 214 rev.00...
  • Page 56 Replace the motor if it still doesn't operate. The On time of stage 1 Set the On Time to a fans in minimum value other than zero. ventilation is set to zero. OVATION 214 rev.00...
  • Page 57 230V) to activate the motor. Also, be sure the stage 1 COM- MON is supplied by line L1. Humidity compensation Adjust set point or deactivate is activated and relative compensation as required. humidity exceeds set point. OVATION 214 rev.00...
  • Page 58 If it still is not operating. Listen to see if there is a clicking The controller is sound when the Stage's pilot defective. light turns on. If there is no clicking sound, contact your distributor to repair the control- ler. OVATION 214 rev.00...

  • Page 59: Technical Specifications

    OVATION 214 TECHNICAL SPECIFICATIONS OVATION 214 Supply: 115/230 VAC (-18%, +8%), 50/60Hz, L1 same phases as Stage 1 overload overvoltage protection fuse F12-1A fast blow. Stage 1: Variable output, 115 VAC (3/4 HP) / 230 VAC (1.5 HP), Mot.10A, 50/60 Hz, fuse F1-15A slow blow.

  • Page 60: Factory Settings

    These initial parameter settings will not be retained in the controller's memory. Each new setting will replace the preceding one. ii) If the power supply is cut off, the last parameter settings will be retained in memory until the power is restored. OVATION 214 rev.00...

  • Page 61: Memory Card

    TO TRANSFER A CONFIGURATION: 1. Open the latch and lift the controller's cover. 2. If you are about to copy the controller's configuration on the memory card, make sure the card's switch is at the unlocked position. OVATION 214 rev.00...
  • Page 62 8. Once the transfer is over, open the controller's cover, and re- move the memory card from the connector. Close the controller's enclosure afterwards. 9. Lock the card switch ( ) if required. OVATION 214 rev.00...
  • Page 63 Do not move is incomplete or hold the card while the transfer is ongoing. The memory card is defective, try with another card (contact your dealer). The connector is defective (contact you dealer). OVATION 214 rev.00...

  • Page 64: Glossary

    Likewise, when the temperature falls be- low the set point, the running time is decreased gradually until the minimum ventilation settings are reached. OVATION 214 rev.00...
  • Page 65 ZONED HEATERS: When zoned heaters are used, heaters in each zone operate according to their own probes rather than the average temperature for the entire room. In this way, heaters across zones are independent of one another. OVATION 214 rev.00...
