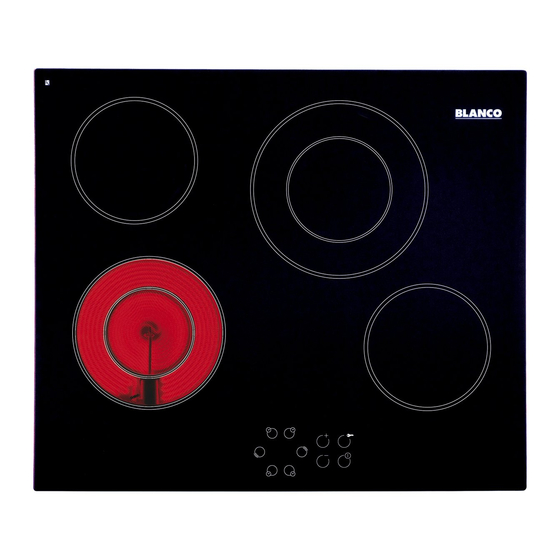

- Page 1 Instructions for the Use and Care and Installation of BCCT64X Touch Control Cooktop...
- Page 3 Dear Customer You will fi nd that the modern look of your Blanco rangehood blends in perfectly with your kitchen décor. It is easy to use and performs to a high standard. Blanco also makes a range of products that will enhance your kitchen – such as cooktops, ovens, dishwashers, microwaves, sinks and taps.
-
Page 4: Safety Warnings
SAFETY WARNINGS · Read the following carefully to avoid an electric shock or fi re. · It is most important that this instruction book should be retained with the appliance for future reference. · Should the appliance be sold or transferred, always ensure that the book is left with the appli- ance in order that the new owner can get to know the functions of the appliance and the relevant warnings. -
Page 5: Installation Instructions
When you have fi nished cooking, switch off the relevant heating element. INSTALLATION INSTRUCTIONS These instructions address specialised installers and serve as a guide for installation, adjustment and maintenance in conformity with the laws and regulations in force. If a built-in oven or any other appliance that generates heat must be fi tted directly under the glass-ceramic cooktop, The COOKTOP MUST BE SUITABLY INSULATED in such a way that the heat generated by the oven, measured on the bottom right of the cooktop, does not exceed 60°C. -
Page 6: Use And Maintenance
Electrical connectionS (Fig.2) 220-240V 1N ~ H05V2V2-F 3G 2.5mm 380-415V 2N~ H05V2V2-F 4G 2.5mm 220-240V 2~ H05V2V2-F 3G 2.5mm 220-240V 3~ H05V2V2-F 4G 2.5mm 380-415V 3N~ H05V2V2-F 5G 2.5mm 220-240 V~ H05V2V2-F 3G 220-240 V2~ H05V2V2-F 3G 380-415 V2N~ H05V2V2-F 4G 220-240 V3~ H05V2V2-F 4G 380-415 V3N~ H05V2V2-F 5G 220-240 V2N2~ H05V2V2-F 5G... - Page 7 Fig. 3 Clean the heated area as thoroughly as possible using SIDOL, STAHLFIX or similar products and a cloth/paper, then rinse with water and dry with a clean cloth. Using the special scraper (optional) immediately remove any fragments of aluminium and plastic material that have unintentionally melted on the heated cooking area or residues of sugar or food with a high sugar content (Fig.3).
- Page 8 Fig. 5 - Heating zone indicator - Key cooking area selection - Cooking area display - Key (+) - Key (-) - Key-lock on/off pilot light - Lock-key - Key On/Off Fig. 6 - Key for double zone selection - Key cooking area selection - Cooking area display - Key (+) - Key (-)
- Page 9 Fig. 7 - Heating zone indicator - Key cooking area selection - Cooking area display - Key for double zone selection - Key (+) - Key (-) - Lock-key - Key On/Off - Key-lock on/off pilot light - Touch selection pad F for the desired cooking zone, a fl ashing “0” will appear on the respective display.
- Page 10 - When a plate is in the OFF position and the temperature is higher than 50° there will be a luminous signal “H” near to the respective selection key (Fig.4- 5- 6-7-8 H). Timer (Fig.8). Fig. 8 - Key cooking area selection - Key-lock on/off pilot light - Lock-key - Key for double zone selection...
- Page 11 The use of cast iron, copper based and aluminium saucepans and pots is not recommended as these can cause damage to the cooktop surface. The base of all cookware should be dry prior to placing on the cooktop. Fig. 9 THE MANUFACTURER DECLINES ALL RESPONSIBILITY FOR EVENTUAL DAMAGES CAUSED BY BREACHING THE ABOVE WARNINGS.
- Page 12 Blanco Contact Information. Platinum Appliance Service Telephone: 07 3862 1154 Facsimile: 07 3862 1114 NEW SOUTH WALES Head Offi ce, Sales & Marketing Offi ce Roshad (Gold Coast) 104 Vanessa Street Telephone 07 5535 7044 Kingsgrove NSW 2208 Facsimile 07 5535 7407...
- Page 13 Service Provider during their normal business hours. BLANCO/MEA or one of its’ Service Providers. 4. At no time does BLANCO/MEA have liability for 3. If the appliance is used in Commercial Applications any freight or transportation costs or for any damage...
- Page 16 Printed on recycled paper 3LIP0181...
