- Page 1 Instructions for the Use and Care and Installation of BCC905T Touch Control Cooktop...
-
Page 2: Table Of Contents
Dear Customer You will find that the clean lines and modern look of your Blanco cooktop blends in perfectly with your kitchen décor. It is easy to use and performs to a high standard. Blanco also makes a range of products that will enhance your kitchen – such as ovens, rangehoods, dishwashers, microwaves, sinks and taps. -
Page 3: Safety Warnings
SAFETY WARNINGS The appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervised or instruction concerning use the appliance by a responsible person for their safety. - Page 4 SAFETY WARNINGS WARNING FOR USE: ► The appliance is built to perform the following function, cooking and heating food. Every other use is considered improper. ► ► Never use this appliance as a room heater. ► Do not attempt to change the technical characteristics of the product as it can be dangerous and can affect your product.
-
Page 5: Description

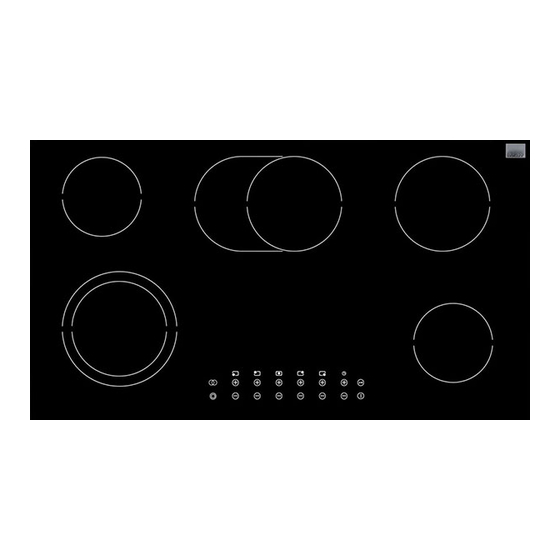

DESCRIPTION The appliance has 5 cooking zones of different sizes and power levels. The heating elements are of the Hi-light type, which come on after a few seconds, and the heat is adjusted using the buttons on the touch control panel, from a minimum of 1 to a maximum of 9. The cooking zones with concentric or oval disks have a double heating system: in the area inside the small diameter or over both diameters. -
Page 6: Description
DESCRIPTION BCC905T 1 - heating element 1 – button 11 - Timer symbol 12 - Clock programming – button 2 - heating element 1 + button 13 - Clock programming + button 3 - heating element 2 – button 4 - heating element 2 + button 14 - Safety lock button 5 - heating element 3 –... -
Page 7: Use
Model BCC905T Every time that a button is pressed, it is confirmed by a check beep. The functions of hobs that use this type of technology are activated by gently pressing the serigraph buttons on the surface of the hob. The first time the hob is connected to the electricity supply, an operating check will be run automatically and all the warning lights will come on for several seconds. - Page 8 HEAT-UP FUNCTIONS This function takes the cooking level to maximum power for a defined time. Activate the heat-up function After removing the control panel lock (pressing the symbol for 2 seconds), switch on the hob by pressing the button for a 2 seconds. Select the desired cooking zone, then use the button to increase the cooking level to 9 (Maximum and press the...
- Page 9 LOCK FUNCTION Lock function ( ): this function prevents the hob from being switched on accidentally (childproof safety device). To activate it, the button must be pressed for three seconds (the warning light comes on). It is not possible to adjust the heated areas when is active.
- Page 10 WARNINGS: Make sure that the handles of the pots are for a correct use, please look at fig. 1 and placed in the right way towards the interior. remind: Be aware that overheated fats and oils may - switch on the electricity only after having become inflamed.
-
Page 11: Cooking Guide
COOKING GUIDE The table below indicates the power values that can be set and the type of food to prepare is shown next to each one. The values can change according to the amount of food and consumer preference. TABLE Touch control Cooking positions... -
Page 12: Cleaning
CLEANING - Marks of liquid, overflowed from the pot, can be Before any cleaning operation, disconnect the removed using vinegar or lemon. appliance from the electric circuit. - Pay attention to not let fall sugar or element with sugar. In this case turn the switch off and clean If you want to preserve the surface clean and the surface with hot water and the razor blade bright, we recommend you to use a silicone... -
Page 13: Installation
INSTALLATION TECHNICAL INSTRUCTIONS FOR THE INSTALLER After having cleared out all the packing components, make sure of the integrity of the appliance. IMPORTANT: a perfect installation, adjust- ment or transformation of the cook top to If you are in any doubt, do not use the appliance use other gases requires a QUALIFIED and contact qualified personnel. - Page 14 “G” (see fig. 7 for model 30 temperature of 90 °C. cm., 77 cm. and 90 cm.; fig. 7/A - 7/B for model 60 cm.). MAINTENANCE SCHEDULE Clean the cooktop surface after every use as specified within this manual. Model BCC905T FIG. 6 FIG. 7...
- Page 15 INSTALLATION BCC774T POSITION HOOKS ON THE BOTTOM Warning: fix the five hooks in the front and back! FIG. 7/B FIG. 7/A POSITION HOOKS ON THE BOTTOM Model BCC905T...
- Page 16 INSTALLATION - interpose between the appliance and the system an onnipolar switch, in compliance with current installation regulations, with a minimum aperture IMPORTANT: the appliance must be installed between contacts of 3 mm. following the manufacturer's instructions. - Keep in mind that the "earth" cable does not The manufacturer will not be liable for injury have to be interrupted by the switch.
- Page 17 INSTALLATION BCC905T FIG. 9 FIG. 10 FIG. 11...
-
Page 18: Servicing
SERVICING Always disconnect the appliance from the N.B. In case of substitution of the input cable, electricity main before proceeding with any the installer must keep the “earth” conductor servicing operation. longer than “live” ones, and must respect the cautions in paragraph “Electrical connection”. 7) REPLACING THE ELECTRICAL To reassemble the appliance repeat the inverse COMPONENTS... -
Page 19: Troubleshooting
TROUBLESHOOTING If you encounter a problem, it frecuently will merilly be something minor. So, before you call customer service, consider the following suggestions and instructions: Check the condition of the fuses/circuit → The cooktop is not working breakers at your location. Check to see if you are experiencing a power failure. -
Page 20: Trouble Shooting
TROUBLESHOOTING Heater Fault Action display Wait until temperature goes down. If messa- Touch control temperature ge persist when temperature reaches an envi- sensor can be damaged. ronment value, call after-sales service. Excessive sensitivity See if cook-top is mounted correctly. Be sure on any key. -
Page 21: Technical Data
H07 RN - F 3 x 2.5 mm 5 x 1 mm 4 x 1.5 mm BCC905T MODEL 5 HEATING ELEMENTS (90 cm.) (3 HI-LIGHT + 1 HI-LIGHT with conc. double zone + 1 HI-LIGHT with oval double zone) Voltage... - Page 22 WHAT IS COVERED: By Our Warranty During the warranty period, Blanco or its authorised Service Centre will at no extra charge, if your appliance is readily accessible without the need of special equipment and subject to the terms and conditions of this warranty, repair or replace any parts which it considers defective.
