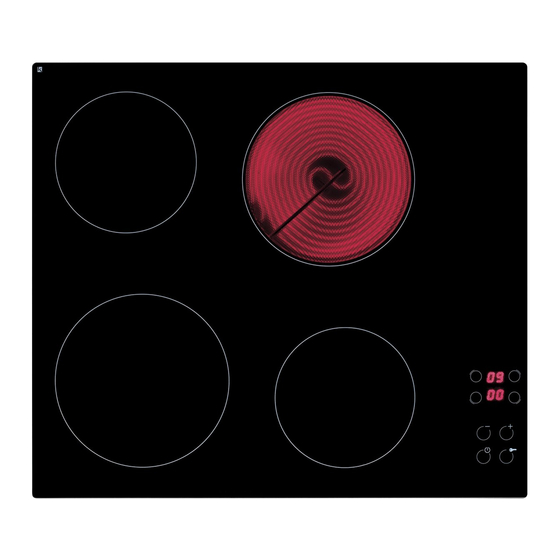

- Page 1 Instructions for the Use and Care and Installation of BCCT60N BCCT60X BCCT75N BCCT75X Electrical Touch Control Ceran Cooktop.
- Page 2 Dear Customer You will find that the clean lines and modern look of your Blanco cooktop blends in perfectly with your kitchen décor. It is easy to use and performs to a high standard. Blanco also makes a range of products that will enhance your kitchen – such as ovens, rangehoods, dishwashers, microwaves, sinks and taps.
-
Page 3: Safety Warnings
GENERAL Carefully read the contents of this leaflet since it provides important instructions regarding safety of installation, use and maintenance. Keep the leaflet for possible future consultation. All the operations relating to installation (electrical connections) must be carried out by specialised personnel in conformity with the regulations in force. SAFETY WARNINGS If the surface is cracked, switch off the appliance to avoid the possibility of an electric shock. - Page 4 Under no circumstances use abrasive sponges or irritating chemical detergents such as oven sprays or stain remov- ers. Use the touch control system in the corresponding position relative to the individual cooking needs. Keep in mind that the higher the number, the more heat that it is produced. FUNCTIONING NOTE: THE COOKTOP HAS A LOCK FUNCTION.
- Page 5 When installing the cooktop above a cupboard, a dividing shelf as pictured at C must be installed. If installing above an underbench oven this is not required. - 6 -...
- Page 6 - Heating zone indicator - Key cooking area selection - Cooking area display - Key (+) - Key (-) - Key-lock on/off pilot light - Lock-key - Key On/Off 220-240 V~ H05RR-F 2.5mm 220-240 V2~ H05RR-F 2.5mm 380-415 V2N~ H05RR-F 2.5mm 220-240 V3~ H05RR-F 2.5mm 380-415 V3N~ H05RR-F 2.5mm - 7 -...
- Page 7 5. INSTRUCTIONS FOR FLUSH-MOUNTING NON FRAMED COOKTOPS Note Attention when using plastic worktops Some producers of plastic worktops refuse to install semi-integrated hobs into their plastic worktops. Please make enquiries at the producer of your worktop concerning usability in the case of semi-integrated cooking zones. Should a producer not expressly agree to installation, we must point out that we will not be held liable for any conse- quential damage to the worktop (which may possibly tear due to thermal expansion).
- Page 8 5.3 Making the worktop recess The cut-out is produced in two work steps. 1. Make the opening for the base trough. 2. Making the recess for the support of the glass ceramic hob. (For this recess at least one recessing machine with guide strip is required.) The outside dimension of the recess should always be min.
- Page 9 5.4 Gluing in the hob Notes In order to avoid damage to the worktop and the hob, it is necessary to glue the worktop/hob system with a per- manent seal so that it is water-proof. The parts to be glued together must be dry and free from grease. To glue the hob, you require water-proof wash primer and heat and moisture-resistant silicone adhesive (150°C).
