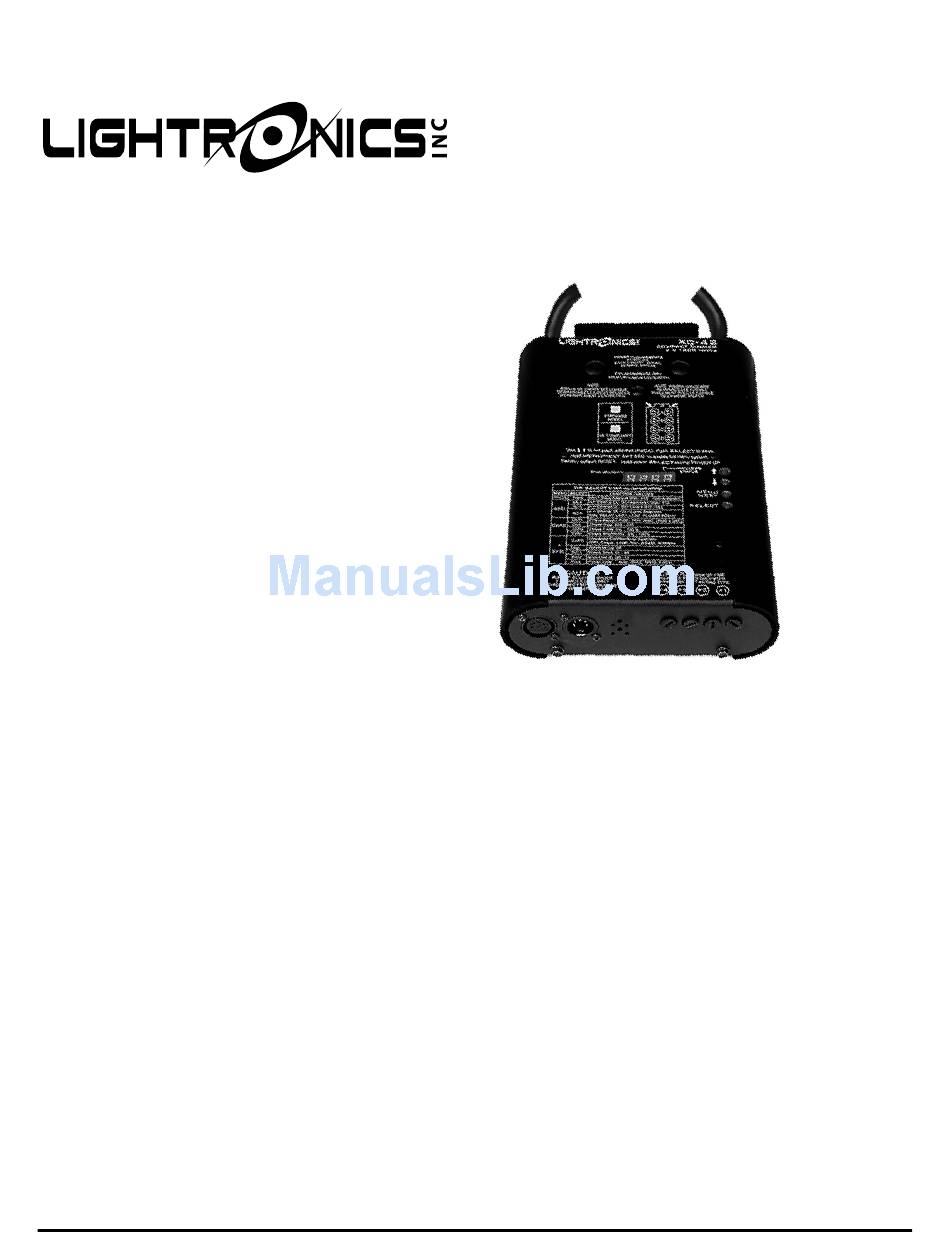

- Page 1 XC-42 COMPACT PORTABLE DIMMER OWNERS MANUAL Revision 0.2 06/12/2007 www.lightronics.com 20070612 drp Lightronics Inc. 509 Central Drive Virginia Beach, VA 234354 757 486 3588...
-
Page 2: Table Of Contents
XC-42 WIRELESS OPTION DESCRIPTION INSTALLATION AND SETUP LINKING TO A WIRELESS EQUIPPED CONSOLE TO LINK AN XC-42 TO A CONSOLE UNLINKING AN XC-42 FROM A CONSOLE TO RELEASE THE LINK AT THE XC-42 TO RELEASE ALL LINKS AT THE CONSOLE... -
Page 3: Xc-42 Unit Description
06/12/2007 XC-42 UNIT DESCRIPTION LOAD CONNECTIONS The XC-42 is a four circuit compact dimmer with a load capacity of 1200 Watts per circuit. Each circuit is protected by a 10 Amp fuse. It can be controlled in several ways - the most common being DMX-512. -
Page 4: Operation
SELECT button held down while consecutive addresses. FACt power is applied. The display briefly shows while the reset is being performed. The XC-42 is set During normal operation the LED display toggles as follows when a reset is performed: PACA... -
Page 5: Dimmer Setup
CHANNEL LIMITING MENU/NEXT until the display toggles between dC-A and the current curve setting. Each channel in the XC-42 can be set to limit the maximum power applied to a channel. This feature d C - A D i m can lengthen the life of lamps and prevent premature failures from power surges and high line voltage. -
Page 6: Chase Operation
( Push MENU/NEXT to advance to the next chase parameter (Chase Fade). CHASE OPERATION The XC-42 can run one of 16 chase patterns which CHASE FADE CHAS can be selected from the menus. The rate,... -
Page 7: Selecting A Control Source
LOCAL: Local control enables you to operate the XC-42 channels manually without an external controller. You can set a static scene and leave the unit as is. This may be useful for a store display or other situation where a continuous lighting scene is needed. -
Page 8: Xc-42 Wireless Option
XC-42 or at the transmitting console. The XC-42 can link can even if is not in the wireless INSTALLATION AND SETUP mode but since the unit can operate in several other... -
Page 9: To Release The Link At The
XC-42 COMPACT DMX DIMMER Version 0.2 OWNERS MANUAL 06/12/2007 TO RELEASE THE LINK AT THE XC-42 The XC-42 link can be released regardless of whether or not it is in the wireless operation mode (Antd). MENU/NEXT 1. Hold down for about 5 seconds to dSEt. -
Page 10: Menu And Display Operation Diagram
Page 10 of 12 XC-42 COMPACT DMX DIMMER Version 0.2 OWNERS MANUAL 06/12/2007 MENU AND DISPLAY OPERATION Pack Address P000 - P512 MENU MENU MENU MENU MENU NEXT NEXT NEXT NEXT NEXT PACA A-00 B-00 C-00 D-00 Exit PACA MENU NEXT 5 SEC. -
Page 11: Maintenance And Repair
Size 9.5"L X 8.0"W X 3.375"D Weight 6.7 Pounds Internal service on the unit by other than Lightronics authorized agents will void the warranty. If service is required, contact the dealer from whom you purchased the dimmer, or Lightronics Service Department, 509 Central Drive, Virginia Beach, VA 23454. -
Page 12: Warranty
A) If service is required, you may be asked to provide proof of purchase from an authorized Lightronics dealer. B) The FIVE YEAR WARRANTY is only valid if the warranty card is returned to Lightronics accompanied with a copy of the original receipt of purchase within 30 DAYS of the purchase date, if not then the TWO YEAR WARRANTY applies.
