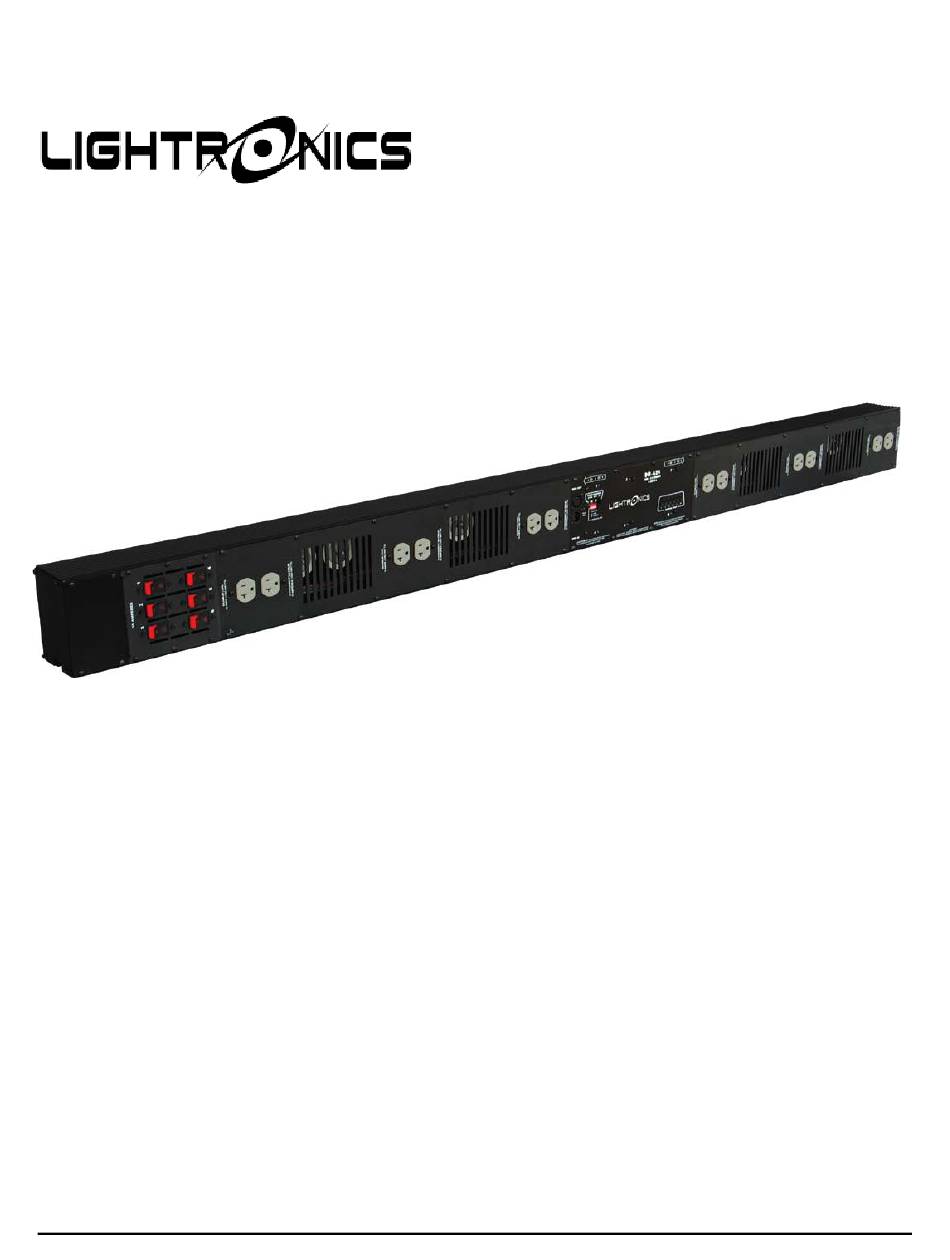

- Page 1 DB624 6 x 2400W DISTRIBUTED DIMMING BAR OWNERS MANUAL Version 1.1 1/06/2022 www.lightronics.com Lightronics Inc 509 Central Drive, Virginia Beach, VA 23454 Tel 757 486 3588...
- Page 2 DB624 so the bolt head slides into the DB624 "T" The DB624 is a 6 channel dimmer with a capacity of slot. The flat washer must be between the 2,400 watts per channel giving a total of 14,400 DB624 and the adapter.
- Page 3 40 Amps per line (3 pole 40 Amp circuit breaker). The Power access to the DB624 is through the left end minimum wire size is AWG#8. Wire may be either cover plate which has dual knockouts. The right end stranded or solid.
- Page 4 BEFORE MAKING CONNECTIONS. setting. 1. Remove the access cover at the end of the unit. The DB624 is usually shipped from the factory set 2. Connect the two "HOT" power input wires to the for 3 Phase Normal operation. L1 and L3 terminals.
- Page 5 DMX address which marked DMX OUT and will pass the DMX signal will be used for the first channel of the DB624. The through to additional dimmers on a DMX chain. remaining five channels will be assigned to Connector wiring information is given below.
- Page 6 2. Check that the DMX controller is powered and Lightronics recommends that you record the serial that DMX channels are correctly patched or number of your DB624 for future reference set. 3. Check the control cable between the dimmer and its DMX controller.
