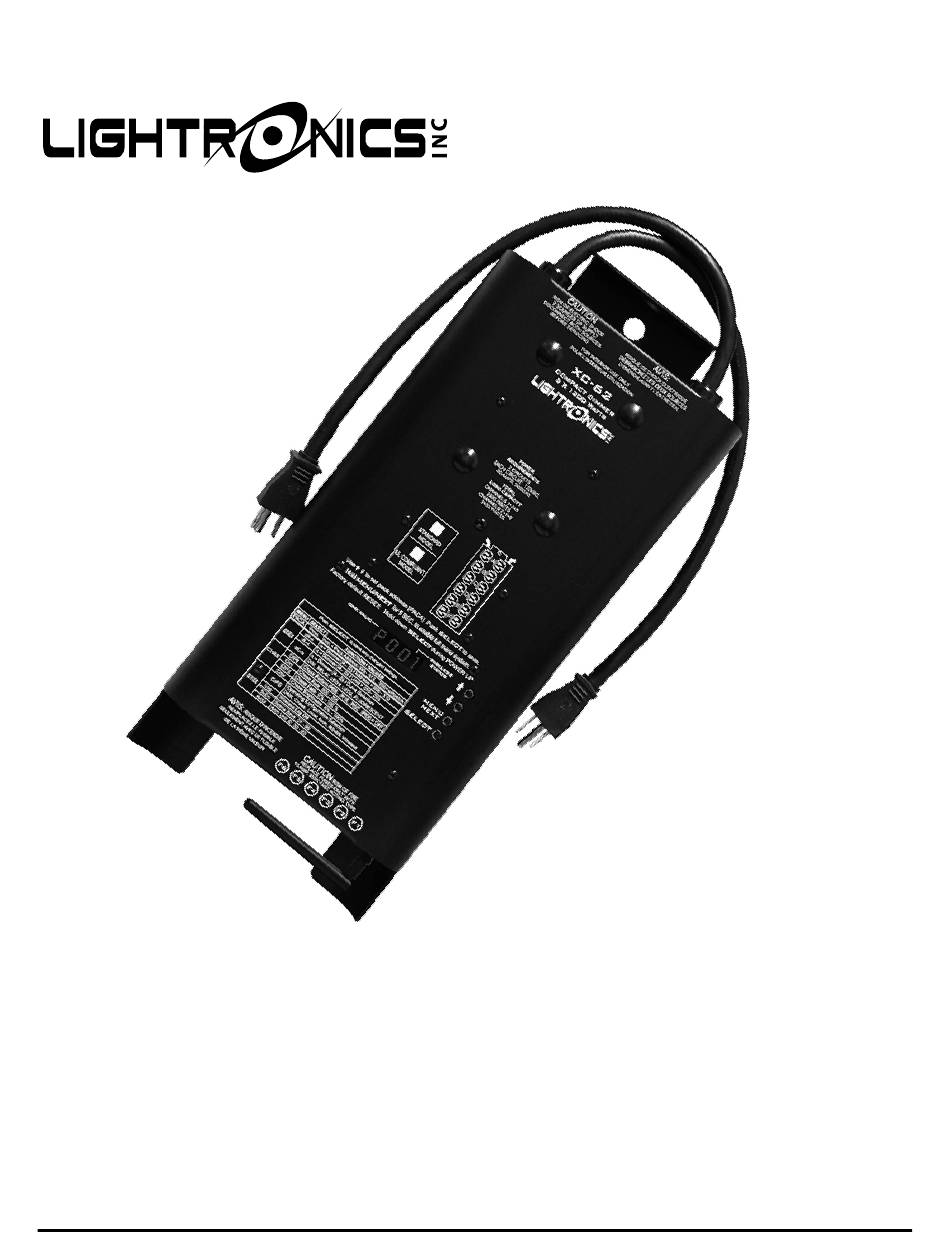

- Page 1 XC-62 COMPACT PORTABLE DIMMER OWNERS MANUAL Revision 0.2 03/08/2011 www.lightronics.com 20070913 drp Lightronics Inc. 509 Central Drive Virginia Beach, VA 234354 757 486 3588...
-
Page 2: Table Of Contents
XC-62 WIRELESS OPTION DESCRIPTION INSTALLATION AND SETUP LINKING TO A WIRELESS EQUIPPED CONSOLE TO LINK AN XC-62 TO A CONSOLE UNLINKING AN XC-62 FROM A CONSOLE TO RELEASE THE LINK AT THE XC-62 TO RELEASE ALL LINKS AT THE CONSOLE... -
Page 3: Xc-62 Unit Description
LOADS AND LOAD CONNECTIONS Lighting fixtures connect to the 6 duplex outlets on The XC-62 is a six circuit compact dimmer with a one side of the unit. They are designated as "A" load capacity of 1200 Watts per circuit. Each circuit through "F". -
Page 4: Operation
("B", "C", "D","E", "F") are set to the next power is applied. The display briefly shows FACt consecutive addresses. while the reset is being performed. The XC-62 is set as follows when a reset is performed: During normal operation the LED display toggles back and forth between... -
Page 5: Channel Test
03/08/2011 CHANNEL LIMITING CHANNEL TEST Each channel in the XC-62 can be set to limit the You can test the operation of each dimmer channel by maximum power applied to a channel. This feature pushing MENU/NEXT. The display will show the can lengthen the life of lamps and prevent premature intensity of channel A (00 - 99%) as shown below. -
Page 6: Chase Operation
Push SELECT to save the change. CHASE OPERATION Push MENU/NEXT to advance to the next chase The XC-62 can run one of 16 chase patterns which parameter (Chase Fade). can be selected from the menus. The rate,... -
Page 7: Selecting A Control Source
Local control enables you to operate the LOCAL: XC-62 channels manually without an external controller. You can set a static scene and leave the unit as is. This may be useful for a store display or other situation where a continuous lighting scene is needed. -
Page 8: Xc-62 Wireless Option
XC-62 or at the transmitting console. The XC-62 can link can even if is not in the wireless INSTALLATION AND SETUP mode but since the unit can operate in several other... -
Page 9: To Release The Link At The
XC-62 COMPACT DMX DIMMER Version 0.2 OWNERS MANUAL 03/08/2011 TO RELEASE THE LINK AT THE XC-62 The XC-62 link can be released regardless of whether or not it is in the wireless operation mode (Antd). 1. Hold down for about 5 seconds to MENU/NEXT access the menus. -
Page 10: Menu And Display Operation Diagram
Page 10 of 12 XC-62 COMPACT DMX DIMMER Version 0.2 OWNERS MANUAL 03/08/2011 MENU AND DISPLAY OPERATION Pack Address P000 - P512 MENU MENU MENU MENU MENU MENU MENU Exit NEXT NEXT NEXT NEXT NEXT NEXT NEXT A-00 B-00 C-00... -
Page 11: Maintenance And Repair
F5 - Channel E F6 - Channel F Weight 8.7 Pounds Internal service on the unit by other than Lightronics authorized agents will void the warranty. If service is required, contact the dealer from whom you purchased the dimmer, or Lightronics Service Department, 509 Central Drive, Virginia Beach, VA 23454. -
Page 12: Warranty
A) If service is required, you may be asked to provide proof of purchase from an authorized Lightronics dealer. B) The FIVE YEAR WARRANTY is only valid if the warranty card is returned to Lightronics accompanied with a copy of the original receipt of purchase within 30 DAYS of the purchase date, if not then the TWO YEAR WARRANTY applies.
