Summary of Contents for Lightronics DB612

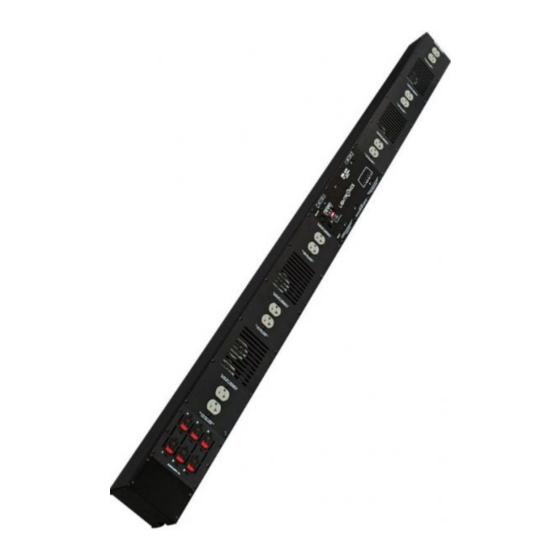

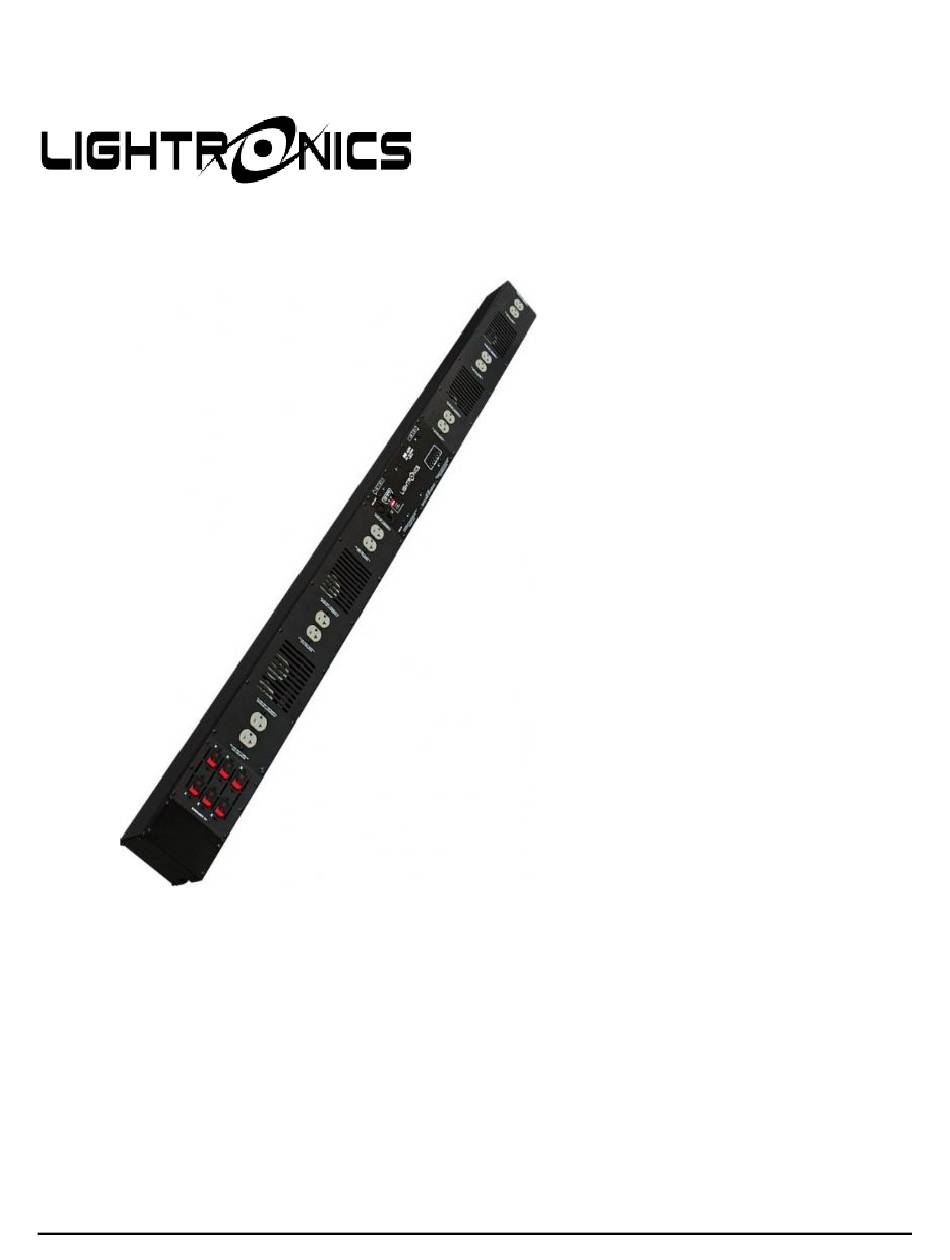

- Page 1 DB612 6 x 1200W DISTRIBUTED DIMMING BAR OWNERS MANUAL Version 1.1 01/06/2022 www.lightronics.com Lightronics Inc 509 Central Drive, Virginia Beach, VA 23454 Tel 757 486 3588...
-
Page 2: Description Of Unit
DB612 so the bolt head slides into the DB612 "T" The DB612 is a 6 channel dimmer with a capacity of slot. The flat washer must be between the 1,200 watts per channel giving a total of 7,200 watts. - Page 3 The unit must be powered from a circuit providing a minimum of 20 Power access to the DB612 is through the left end Amps per line (3 pole 20 Amp circuit breaker). The cover plate which has dual knockouts. The right end minimum wire size is AWG#12.
- Page 4 2 Connect the two "HOT" power input wires to the L1 and L3 terminals. The DB612 is usually shipped from the factory set for Three Phase Normal operation. Note the terminal marked L2 is not used for Disconnect or turn off power to the unit single phase operation.
-
Page 5: Operation
DMX address which connector is marked DMX OUT and will pass the will be used for the first channel of the DB612. The DMX signal through to additional devices on a DMX remaining five channels will be assigned to chain. -
Page 6: Maintenance And Repair
1. Verify the unit channel addresses are Lightronics recommends you record the serial correctly set. number of your DB612 for future reference. 2. Check that the DMX controller is powered and that DMX channels are correctly patched or set.
