AS-40M
COMPACT DMX/MANUAL
DIMMER
Version 2.0 02/14/2005
IMPORTANT
Please take a moment to read this manual
before you operate the AS - 40M dimmer.
DESCRIPTION

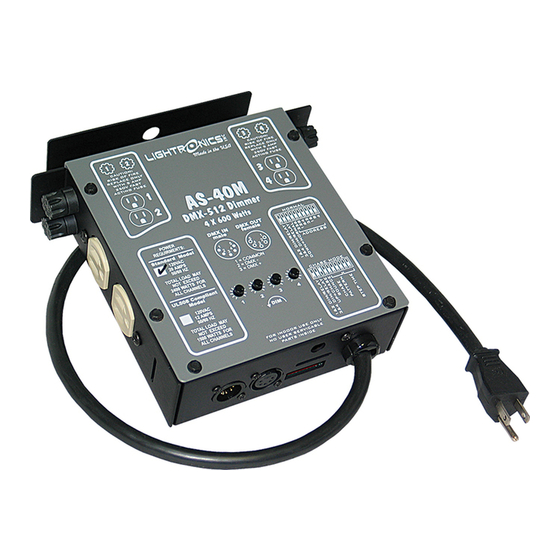

The AS-40M is a compact 4 channel light dimmer. It has a maximum capacity of 600 Watts per channel and a
maximum TOTAL load capacity of 2400 Watts. It is supplied with an input power cord which may be connected to
a 120 VAC, 20 Amp power circuit. The AS-40M is intended for INDOOR USE ONLY. The unit operates using the
USITT DMX-512 protocol. The AS-40M may be operated in a relay (non-dim) mode. The unit will also function as
a stand alone chaser and has eight primary preset chase patterns which may be used. An additional manual
operating mode is available which enables the unit to function as a stand alone dimmer with manual control of
each channel.
INSTALLATION
LOCATION: Locate the unit in a well ventilated area away from moisture and heat. Two ½" holes are provided
on one end of the dimmer to install a lighting bar pipe clamp and suitable safety cables.
POWER CONNECTIONS: Extending from the chassis is a 20 amp line cord for connection to a 120 VAC, 20
Amp, grounded service. Total capacity of the AS-40M is 2400 watts.
LOAD CONNECTIONS: There is one Edison Plug connector provided for each AS-40M output channel. They
are located along the left and right edges of the unit. The markings on the cover indicate the channel numbers for
each connection. The maximum capacity of each channel is 600 watts.
CONTROL SIGNAL CONNECTIONS:
The male five pin XLR connector on the unit end panel connects to the control console. The female connector is
for connection to additional dimmers. The AS-40M dimmer is compatible with the USITT DMX-512 protocol.
Note that the DMX standard does not provide for console power via the dimmer chain. Therefore the DMX
console used with AS-40M dimmers must be powered by other means.
Wiring information for the DMX control signal connectors is shown on the unit top cover.
www.lightronics.com
Lightronics Inc.
www.BulbAmerica.com
OWNERS MANUAL
Page 1 of 5
509 Central Drive, Virginia Beach, VA 23454
or CALL TOLL FREE 888-505-2111
Tel: 757 486 3588
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Lightronics AS-40M
Summary of Contents for Lightronics AS-40M
- Page 1 DESCRIPTION The AS-40M is a compact 4 channel light dimmer. It has a maximum capacity of 600 Watts per channel and a maximum TOTAL load capacity of 2400 Watts. It is supplied with an input power cord which may be connected to a 120 VAC, 20 Amp power circuit.
- Page 2 CHASER MODE When operating in the chaser mode the AS-40M becomes independent of the control console and other dimmers. The green LED indicator is OUT when in the chaser mode. Chaser mode is turned on and off by one of the DIP switches on the end of the unit.
-
Page 3: Manual Operation
MANUAL OPERATION The AS-40M can be operated by itself as a manually controlled dimmer. If there is no DMX signal present and the unit is not in the chaser mode then each channel can be controlled by one of the four rotary faders on the unit top cover. - Page 4 All Lightronics products using DIP switches for address assignments conform to this table. Some dimmers cannot be set to all 512 channels and will have fewer switches than are shown in the table. If this is the case then match the right end switches in the table to your dimmer switches.
-
Page 5: Warranty
A) If service is required, you may be asked to provide proof of purchase from an authorized Lightronics dealer. B) The FIVE YEAR WARRANTY is only valid if the warranty card is returned to Lightronics accompanied with a copy of the original receipt of purchase within 30 DAYS of the purchase date, if not then the TWO YEAR WARRANTY applies. - Page 6 ORDER DIRECTLY TODAY AT: www.BulbAmerica.com or CALL TOLL FREE 888-505-2111 Lightronics Inc. 509 Central Drive Virginia Beach, VA 23454 20050125...
