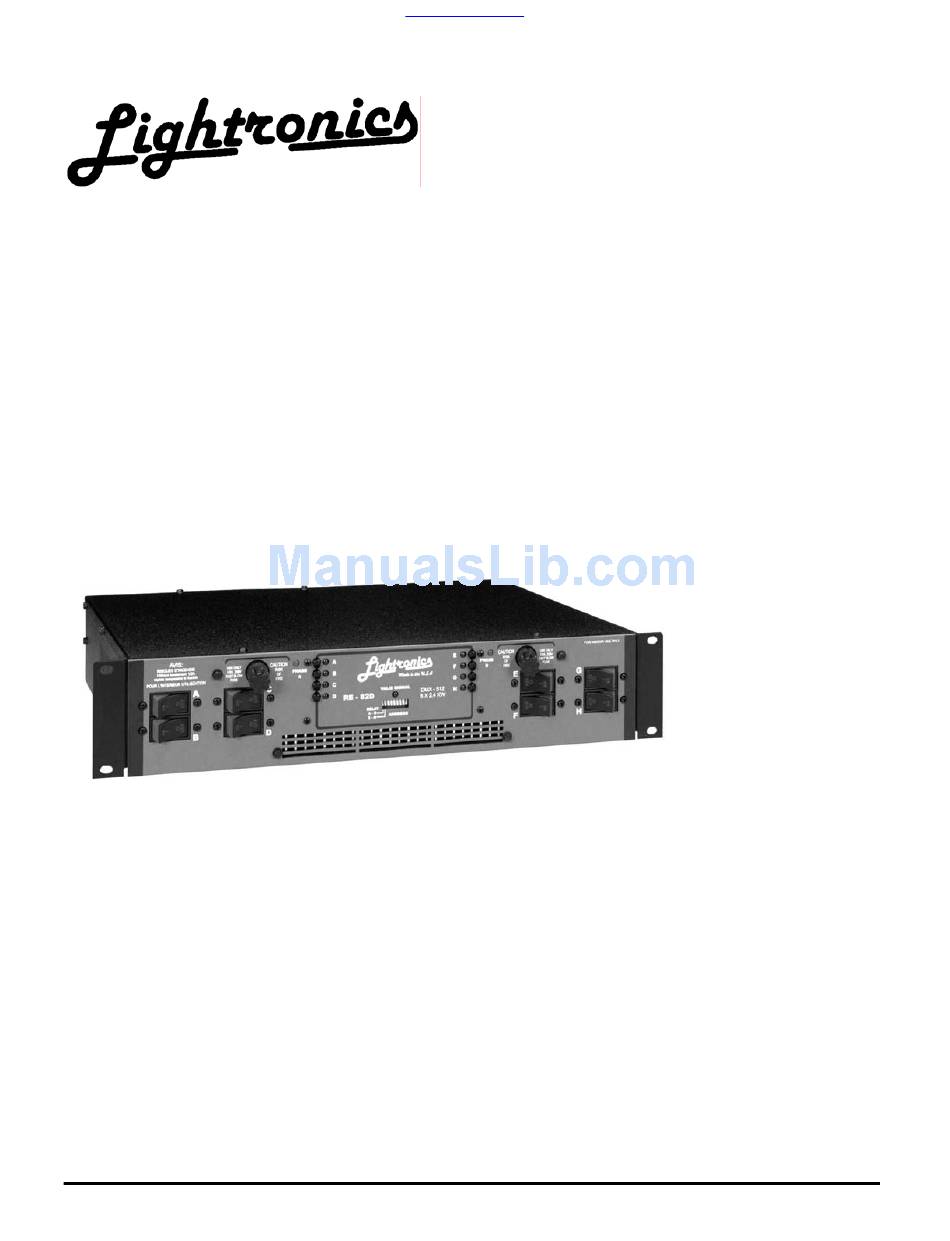

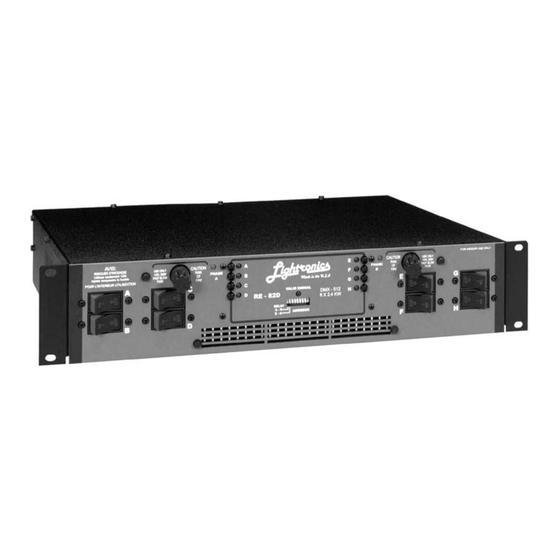

- Page 1 ORDER DIRECTLY TODAY AT: www.BulbAmerica.com or CALL TOLL FREE 888-505-2111 RE-82D RACK MOUNTED DIMMER OWNERS MANUAL Revision 2.0 02/28/2005 www.lightronics.com Lightronics Inc 509 Central Drive, Virginia Beach, VA 23454 TEL 757 486 3588...
- Page 2 BEFORE YOU BEGIN INSTALLATION. Power enters the RE-82D through the rear of the unit via a hole sized for 1" conduit. Inside the RE-82D is a terminal block with three lugs. The "H1" and "H2" are the line connections or "hots". The center connection labeled "N"...
- Page 3 CONTROL SIGNAL The DMX-512 control signal enters the RE-82D through a 5 pin "XLR" connector on the rear of the unit. A second connector is used to continue this control signal out to other dimmers in the system. Normally the male connector is used for the incoming control signal and the female connector is used to loop out to other dimmers.
- Page 4 CIRCUIT BREAKERS AND FUSES Each channel of the RE-82D is protected by a 20 Amp, fast acting, magnetic circuit breaker located on the front panel of the unit. If the total load for a channel is greater than 2400 Watts the channel circuit breaker will trip.
- Page 5 The DIP Switch Setting column shows the positions of the DIP switches on the dimmer. The Start Channel column shows the resulting channel assignment for the first channel of the dimmer All Lightronics products using DIP switches for address assignments conform to this table. Some dimmers cannot be set to all 512 channels and will have fewer switches than are shown in the table.
- Page 6 A) If service is required, you may be asked to provide proof of purchase from an authorized Lightronics dealer. B) The FIVE YEAR WARRANTY is only valid if the warranty card is returned to Lightronics accompanied with a copy of the original receipt of purchase within 30 DAYS of the purchase date, if not then the TWO YEAR WARRANTY applies.
