Carrier 38CKS Product Data

(60 hz) 10 seer air conditioner export models sizes 018 thru 060
Hide thumbs Also See for 38CKS:

Advertisement

Table of Contents

See also: Owner's Manual , Product Data
Copyright 2005 Carrier Corporation
Product
Data
38CKS (60 Hz)
10 SEER Air Conditioner
EXPORT MODELS
Sizes 018 thru 060

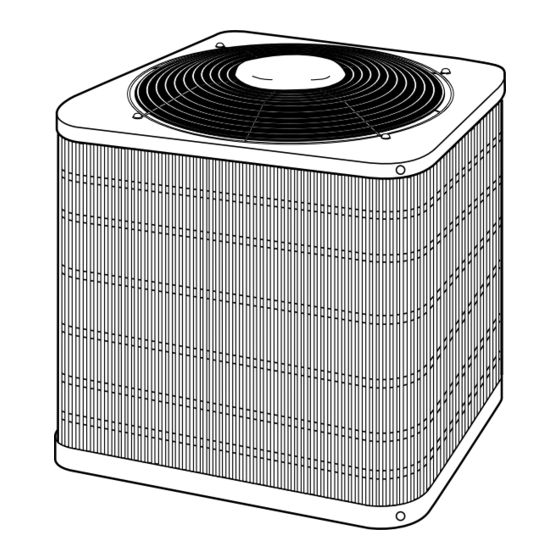

The 38CKS Air Conditioner is
designed for superior performance
durability in harsh environments. The
product achieves up to 9.8 EER ratings
when used with manufacturer specified
components. The product is available in
seven standard nominal sizes ranging
from 018 to 060 for residential and light
commercial applications. All models
are listed with UL (U.S. and Canada).

AVAILABLE OPTIONS

ArmorPlate Condenser Coil —The
outdoor coil lasts three times longer
than other standard condenser coils
by utilizing a special ArmorPlate
protective coating on the coil.
Heavy Duty Inlet Grille —The
WeatherArmor™ coil protector, made
of a coated steel wire grid with
vertical 3/8 in. (9.5 mm) spacing, is
designed to help protect the coil from
inclement weather, vandalism, and
incidental damage. It provides
protection while not restricting
airflow and maintaining ease of coil
inspection and cleaning.
Cabinet Protection —Provides
superior durability through added
paint coverage on all sheet metal
components. The cabinet is
constructed with galvanized,
prepainted steel, providing each unit
with a finish that will last for many
years. Additional attention to detail,
such as the motor cap, protects the fan
motor from exposure to the elements.
Coil isolators protect the unit from
internal scratches during installation
and shipping. All screws on cabinet
exterior are coated for a long-lasting
rust-resistance.
Form 38CKS-5PD

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 38CKS and is the answer not in the manual?

Questions and answers

Related Manuals for Carrier 38CKS

Summary of Contents for Carrier 38CKS

  • Page 1: Available Options

    Product 10 SEER Air Conditioner Data EXPORT MODELS Sizes 018 thru 060 The 38CKS Air Conditioner is designed for superior performance durability in harsh environments. The product achieves up to 9.8 EER ratings when used with manufacturer specified components. The product is available in...

  • Page 2: Model Number Nomenclature

    Each valve provides service ports for removal of water, dirt, and debris. ease in checking operating refrigerant pressures. ISO 9001:2000 REGISTERED Model number nomenclature 38CKS 10 SEER Coastal Air Conditioner Packaging Series Nominal Capacity 018 — 18,000 Btuh 042 — 42,000 Btuh 024 —...

  • Page 3: Physical Data

    Physical data UNIT SIZE 018-3A 024-3A 030-3A 036-3A 042-3A 048-3A 060-3A OPERATING WT (Lb/Kg) 115/52.3 117/53.2 133/60.5 138/62.7 142/64.5 198/90.0 218/99.1 COMPRESSOR—Type Reciprocating Scroll REFRIGERANT Control ® AccuRater (Bypass Type) Charge (Lb/Kg) @ 15 Ft (4.6 m) 3.30/1.5 3.65/1.66 4.25/1.93 4.60/2.09 5.13/2.33 6.38/2.90...
  • Page 4 Accessories PART NO. DESCRIPTION KAATD0101TDR Time-Delay Relay — All Sizes KSALA0201R22 Low Ambient Pressure Switch Kit — All Sizes KSALA0401AAA* MotorMaster®—Low-Ambient Controller — Sizes 024–060 MotorMaster®—Low-Ambient Controller — Size 018 Ball Bearing Fan Motor — Size 018 HC34GE232(RCD) Ball Bearing Fan Motor — Sizes 024, 030 HC40GE232(RCD) Ball Bearing Fan Motor —...

  • Page 5: Accessory Usage Guideline

    THERMOSTAT PKG. DESCRIPTION TSTATCCPRH01-B Thermidistat Control, Programmable/Non-Programmable Thermostat with Humidity Control TSTATCCPAC01-B Thermostat, Auto Changeover, 7-Day Programmable, °F/°C, 1-Stage Heat, 1-Stage Cool TSTATCCNAC01-C Thermostat, Auto Changeover, Non-Programmable, °F/°C, 1-Stage Heat, 1-Stage Cool TSTATCCBAC01-B Builder’s Thermostat, Manual Changeover, Non-Programmable, °F/°C, 1-Stage Heat, 1-Stage Cool TSTATXXSEN01-B Outdoor Air Temperature Sensor TSTATXXNBP01...
  • Page 6 12. Outdoor Air Temperature Sensor Designed for use with Carrier Thermostats listed in this publication. The device enables the thermostat to display the outdoor temperature. This device also is required to enable special thermostat features such as auxiliary heat lock out.

  • Page 7: Electrical Data

    Electrical data 60°C 75°C 60°C 75°C OPER VOLTS* COMPRESSOR UNIT WIRE WIRE LENGTH LENGTH MAX FUSE** OR SIZE-SERIES V/PH SIZE† SIZE† (Ft)‡ (Ft)‡ CKT BKR AMPS 018-3A 48.0 12.1 024-3A 61.0 12.2 15.8 030-3A 73.0 14.0 18.4 208-230-1 036-3A 86.0 17.7 23.5 042-3A...
  • Page 8 Dimensions—38CKS...

  • Page 9: Combination Ratings

    Combination ratings* COOLING CAPACITY @ 95°F (35°C) COOLING CAPACITY @ 115°F (46°C) NOMINAL AIRFLOW RATED CAPACITY POWER RATED RATED CAPACITY POWER UNIT INDOOR SIZE-SERIES UNIT BTUH BTUH FB4BNF018 17,000 4.98 1.81 9.40 14,000 4.10 2.06 FB4BNF024 17,600 5.16 1.83 9.60 15,000 4.39 2.14...
  • Page 10 Detailed cooling capacities* (S.I.) CONDENSER ENTERING AIR TEMPERATURES °C EVAPORATOR Capacity Capacity Capacity Capacity Capacity Capacity Total Sens‡ kW** Total Sens‡ kW** Total Sens‡ kW** Total Sens‡ kW** Total Sens‡ kW** Total Sens‡ kW** 38CKS018-3A Outdoor Section With FA4CN(F,C)018 Indoor Section 4.53 4.53 1.37...
  • Page 11 Detailed cooling capacities* (S.I.) continued CONDENSER ENTERING AIR TEMPERATURES °C EVAPORATOR Capacity Capacity Capacity Capacity Capacity Capacity Total Sens‡ kW** Total Sens‡ kW** Total Sens‡ kW** Total Sens‡ kW** Total Sens‡ kW** Total Sens‡ kW** 38CKS036-3A Outdoor Section With FA4CN(F,C)036 Indoor Section 9.33 9.33 2.96...
  • Page 12 Detailed cooling capacities* (S.I.) continued CONDENSER ENTERING AIR TEMPERATURES °C EVAPORATOR Capacity Capacity Capacity Capacity Capacity Capacity Total Sens‡ kW** Total Sens‡ kW** Total Sens‡ kW** Total Sens‡ kW** Total Sens‡ kW** Total Sens‡ kW** 38CKS060-3A Outdoor Section With FA4CN(F,C)060 Indoor Section 15.37 15.37 5.05 14.73 14.73...
  • Page 13 Detailed cooling capacities* (English) CONDENSER ENTERING AIR TEMPERATURES °F EVAPORATOR Capacity Capacity Capacity Capacity Capacity Capacity MBtuh† MBtuh† MBtuh† MBtuh† MBtuh† MBtuh† Total Sens‡ kW** Total Sens‡ kW** Total Sens‡ kW** Total Sens‡ kW** Total Sens‡ kW** Total Sens‡ kW** 38CKS018-3A Outdoor Section With FA4CN(F,C)018 Indoor Section 15.47 15.47 1.37...
  • Page 14 Detailed cooling capacities* (English) continued CONDENSER ENTERING AIR TEMPERATURES °F EVAPORATOR Capacity Capacity Capacity Capacity Capacity Capacity MBtuh† MBtuh† MBtuh† MBtuh† MBtuh† MBtuh† Total Sens‡ kW** Total Sens‡ kW** Total Sens‡ kW** Total Sens‡ kW** Total Sens‡ kW** Total Sens‡ kW** 38CKS036-3A Outdoor Section With FA4CN(F,C)036 Indoor Section 31.84 31.84...
  • Page 15 Detailed cooling capacities* (English) continued CONDENSER ENTERING AIR TEMPERATURES °F EVAPORATOR Capacity Capacity Capacity Capacity Capacity Capacity MBtuh† MBtuh† MBtuh† MBtuh† MBtuh† MBtuh† Total Sens‡ kW** Total Sens‡ kW** Total Sens‡ kW** Total Sens‡ kW** Total Sens‡ kW** Total Sens‡ kW** 38CKS060-3A Outdoor Section With FA4CN(F,C)060 Indoor Section 52.46 52.46...
  • Page 16 Condenser only ratings (S.I.) CONDENSER ENTERING AIR TEMPERATURES °C °C 38CKS018-3A 4.80 4.30 3.90 3.40 3.00 2.50 2.10 1.60 28.00 33.00 37.00 41.00 45.00 50.00 54.00 58.00 1.22 1.25 1.29 1.31 1.33 1.34 1.35 1.34 5.50 5.00 4.50 4.00 3.50 3.10 2.60 2.10...
  • Page 17 Condenser only ratings (S.I.) continued CONDENSER ENTERING AIR TEMPERATURES °C °C 38CKS036-3A 9.50 8.80 8.00 7.20 6.30 5.50 4.60 3.60 28.00 33.00 37.00 42.00 46.00 50.00 55.00 59.00 2.21 2.34 2.44 2.55 2.65 2.73 2.79 2.82 10.70 9.90 9.10 8.20 7.40 6.50 5.60...
  • Page 18 Condenser only ratings (S.I.) continued CONDENSER ENTERING AIR TEMPERATURES °C °C 38CKS060-3A 16.20 15.50 14.70 13.70 12.60 11.60 10.40 9.20 28.00 34.00 38.00 43.00 48.00 53.00 58.00 63.00 3.66 3.98 4.29 4.65 5.03 5.44 5.86 6.28 17.60 17.10 16.30 15.30 14.20 13.10 12.00...
  • Page 19 Condenser only ratings (English) CONDENSER ENTERING AIR TEMPERATURES °F °F 38CKS018-3A 16.50 14.80 13.30 11.70 10.10 8.60 7.00 5.40 82.10 90.70 98.60 106.20 113.80 121.40 129.10 136.70 1.22 1.25 1.29 1.31 1.33 1.34 1.35 1.34 18.90 17.10 15.40 13.70 12.10 10.40 8.80 7.20...
  • Page 20 Condenser only ratings (English) continued CONDENSER ENTERING AIR TEMPERATURES °F °F 38CKS036-3A 32.50 30.20 27.30 24.50 21.70 18.80 15.70 12.40 82.50 90.70 99.10 107.00 114.90 122.90 130.70 138.40 2.21 2.34 2.44 2.55 2.65 2.73 2.79 2.82 36.60 33.80 31.00 28.10 25.20 22.20 19.10...
  • Page 21 Condenser only ratings (English) continued CONDENSER ENTERING AIR TEMPERATURES °F °F 38CKS060-3A 55.30 53.10 50.00 46.70 43.10 39.50 35.70 31.50 83.10 92.40 101.20 110.00 118.70 127.50 136.30 145.00 3.66 3.98 4.29 4.65 5.03 5.44 5.86 6.28 60.10 58.30 55.60 52.30 48.50 44.70 40.90...
  • Page 22 System Design Summary 1. Intended for outdoor installation with free air inlet and outlet. Outdoor fan external static pressure available is less than 0.01-in. wc. 2. Minimum outdoor operating air temperature without low-ambient operation accessory is 55°F (12.8°C). 3. Maximum outdoor operating air temperature is 125°F (51.7°C). 4.

  • Page 24: Guide Specifications

    Indianapolis, IN 46231 9-05 Manufacturer reserves the right to discontinue, or change at any time, specifications or designs without notice and without incurring obligations. Book Page 24 Catalog No. 38CKS-5PD Printed in U.S.A. PC 101 Replaces: 38CKS-4PD 3a 1a 2a...
