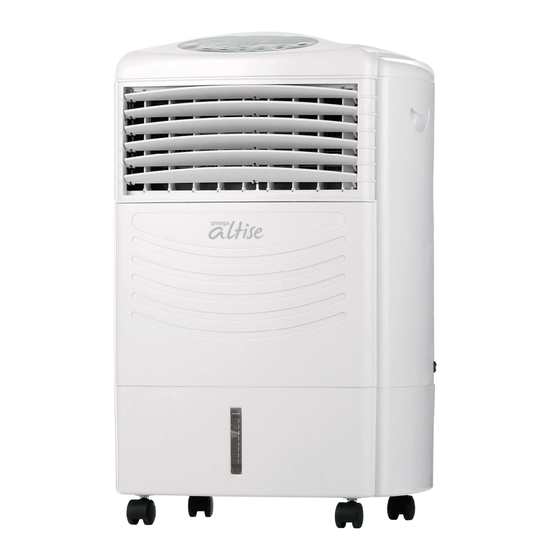

Omega Altise AVAP10A Instruction Manual

10 litre evaporative cooler
Hide thumbs
Table of Contents

Advertisement

Quick Links

AVAP10A
10 Litre
Evaporative Cooler
Instruction
Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AVAP10A and is the answer not in the manual?

Questions and answers

Related Manuals for Omega Altise AVAP10A

Summary of Contents for Omega Altise AVAP10A

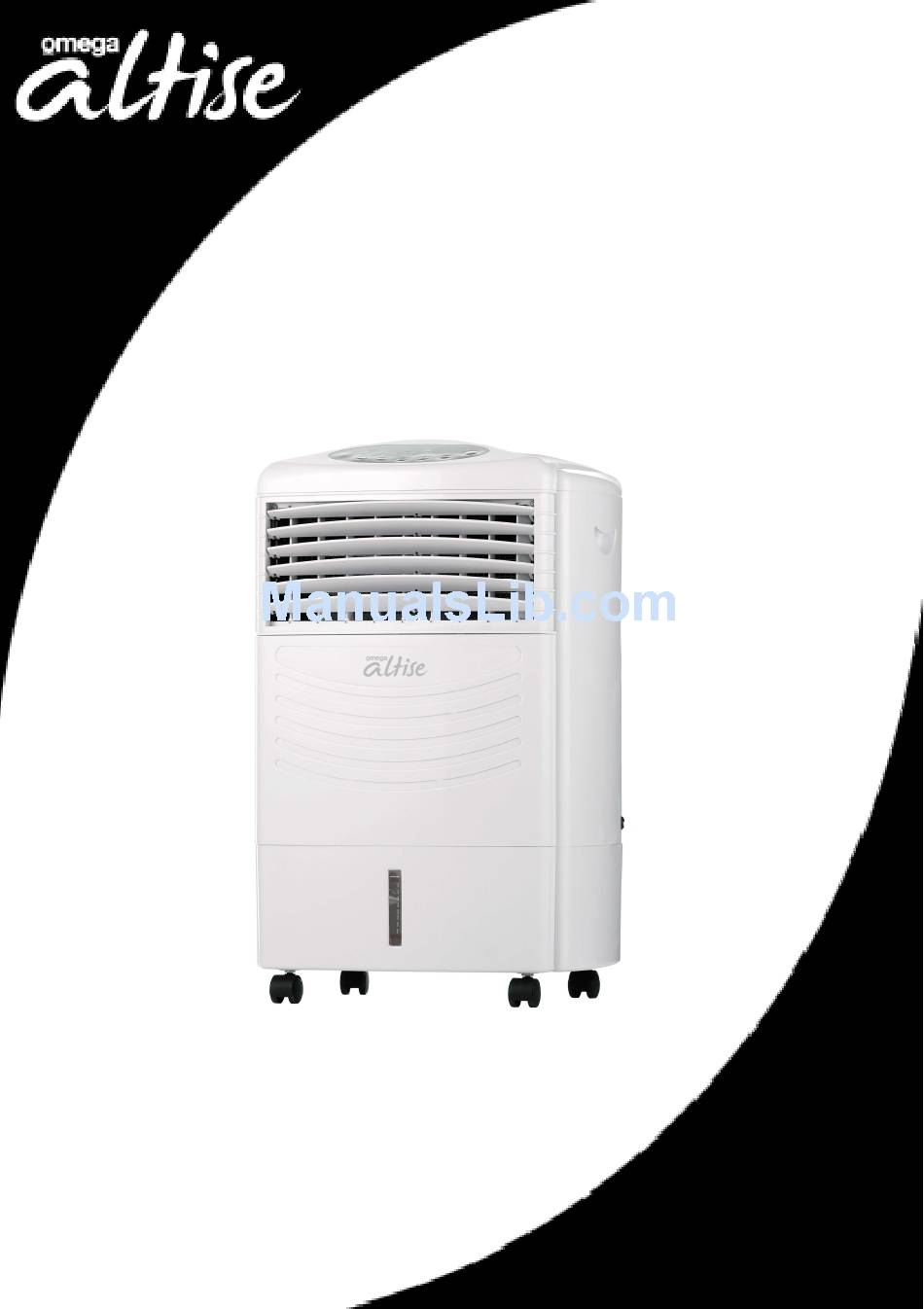

  • Page 1 AVAP10A 10 Litre Evaporative Cooler Instruction Manual...

  • Page 2: Important Safety Instructions

    Important Safety Instructions Read all instructions. WARNING - to reduce the risk of fire, electrical shock or injury to persons or property: • Always operate the product from a power source of the same voltage, frequency and rating as indicated on the product identification plate.

  • Page 3: Specifications

    Specifications Model Modes AVAP10A 3 modes Rated Voltage Water tank capacity 230-240V / 50Hz 11 litres Watts Max air volume >6m /min Dimensions (cm) 30 x 39.7 x 65 Warranty 2 year replacement Net Weight Product Introduction and Features Evaporative air cooling is the natural way of cooling, similar to a breeze flowing across the water which drops the temperature at the beach.

  • Page 4: Parts List

    Parts List Identification of Parts Fig1(Construction diagram) 1. Control panel 7. Water filling box (for add water and ice) 2. Louver 8. Back cover 3. Water level indicator 9. Air filter 4. Wheel (4pcs) 10. Filter cover 5. Water tank 11.

  • Page 5: Operating Instructions

    Operating Instructions Control Panel Layout A. ON/OFF: Press the button once to start air cooler. Press again to Power OFF the air cooler. When cooler is plugged into the main socket, The LED will light up indicating the air cooler now has power and is ready to be switched ON or OFF.

  • Page 6: Operation

    F. MODE: There are 3 mode functions, Normal, Natural or Sleep. Normal mode: Constant air flow and can be adjusted via pressing the SPEED function button. Example: Normal LOW or Normal High or Normal Medium. Natural mode: Programmed to simulate natural air flow (wind) as it would be if it was entering via the window.
  • Page 7 3. Turn the unit ON by depressing the ON/OFF button. The unit will start and then revert to the initial Normal / LOW speed setting. Further operation can be performed via pressing the SPEED, MODE, TIMER, COOL and SWING buttons.

  • Page 8: Care And Maintenance

    Please refer to “installation and use” to learn the operations of the MODE function (NORMAL, NATURAL, and SLEEP) Care and Maintenance To ensure effective humidifying and filtering, it is recommended that the filtering system be cleaned once every 1-2 months.

  • Page 9: For Your Safety

    4. Unscrew rear fixing back cover screws and release the back cover. 5. Disconnect the electric motor connection and remove the complete filter assembly by pulling out from the top and then lifting the filter assembly - up and out.
  • Page 10 WARNING! Do not attempt to open or repair the cooler yourself. Doing so could void the warranty and cause damage or personal injury. Omega Altise products are distributed in Australia by Hagemeyer Appliances, (A Division of Hagemeyer Brands Australia Pty Ltd)
