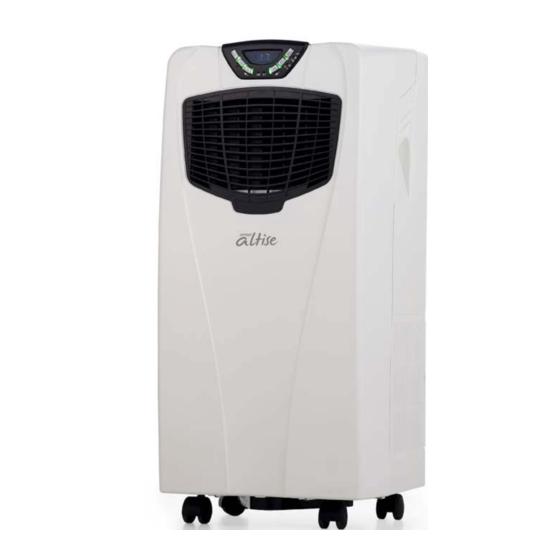

PORTABLE AIR-CONDITIONER
APC09 & APC10

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the APC09 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Omega Altise APC09

Summary of Contents for Omega Altise APC09

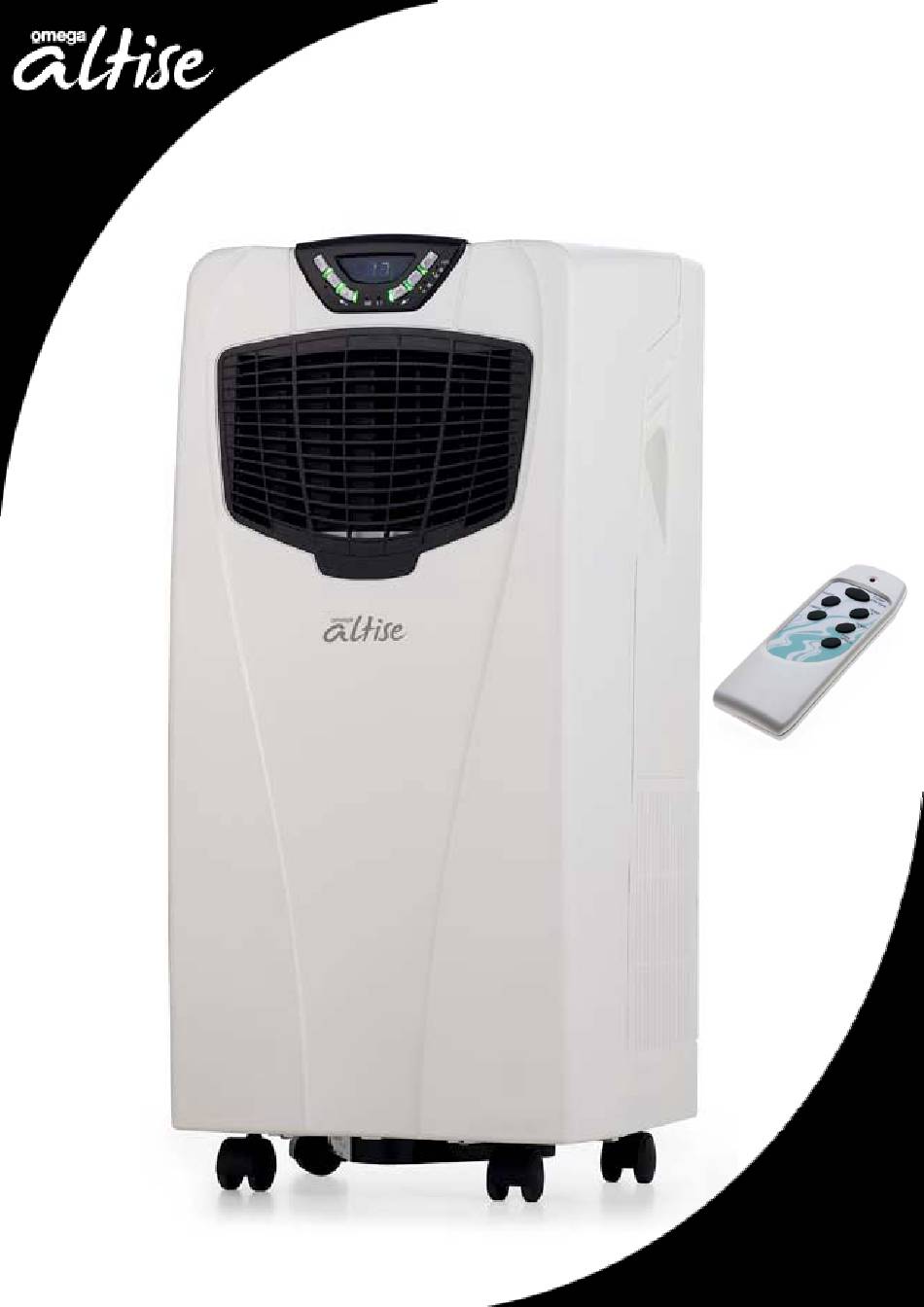

  • Page 1 PORTABLE AIR-CONDITIONER APC09 & APC10...

  • Page 2: Table Of Contents

    Contents Important Safeguards............................2 Introduction..............................3 Features Of Your New Portable Air-Conditioner ..................3 Energy Saving Tips ............................3 Specifications ..............................4 Parts List ................................5 Accessories..............................5 Installation................................ 6 Control Panel ..............................8 Operating Instructions ............................ 8 Aqua Chill Technology..........................

  • Page 3: Introduction

    Introduction Thank you for choosing an omega altise portable air conditioner. This manual contains information, regulations and warnings which are of fundamental importance if the appliance is to be installed correctly and the highest performance, in the safest possible conditions, is to be obtained. We suggest that you read the manual carefully before installing or starting up the unit.

  • Page 4: Specifications

    Specifications Model APC09 APC10 Capacity Cooling (BTU / kW) 9000 / 2.6 10000 / 2.9 Power consumption Cooling (W) 1050 Air volume (max setting) (m Humidity removal capacity (L/day) 28.8 Power supply (V/Hz) 220-240 / 50 220-240 / 50...

  • Page 5: Parts List

    Parts List Front 1. Display window 2. Control panel 3. Electronic control buttons 4. Air outlet grille 5. Carrying handle 6. Castors (4) Back 7. Power cord storage 8. Removable air filter 9. Air inlet grille 10. Exhaust outlet / adapter 11.

  • Page 6: Installation

    Installation • Before you use this unit please ensure it has been kept upright for at least 24 hours. • The unit should be installed in a flat dry place. • Leave at least 50cm space around the unit (Fig. 1).
  • Page 7 Mounting of the flexible exhaust hose • The bend of the exhaust pipe is very important. • Take care to prevent any sharp bow or bend in the exhaust. • The exhaust air must flow freely otherwise the performance of the portable air conditioner may be adversely affected or the unit may malfunction.

  • Page 8: Control Panel

    Control Panel 1. ON/OFF (power) button 9. Fan mode indicator 2. Timer 10. Cooling mode indicator 3. ‘Up’ button 11. Automatic mode indicator 4. Indicator for compressor 12. High ventilation indicator 5. ‘Water Full’ indicator 13. Low ventilation indicator 6.
  • Page 9 Cool Mode The cooling mode uses a refrigerated circuit (compressor) to cool the room by transferring the heat from the inside to the outside through the air exhaust hose and cooling the air that it returns to the room.

  • Page 10: Aqua Chill Technology

    Aqua Chill Technology When operating in Cool Mode this unit uses a self-evaporative system that extracts water from humid environments and collects it in an internal water tank. Once sufficient water is collected it is recycled over the condenser, assisting to cool the condenser and internal refrigerant gas faster than only air.

  • Page 11: Water Drainage

    Water Drainage When the water tank is full, the WATER FULL indicator will illuminate and the compressor will stop working. A buzzer will sound Pressing any button will stop the buzzer. You will need to empty the water tank before the unit will work again.

  • Page 12: Maintenance

    Maintenance Cleaning Turn off the unit and pull the plug out of the socket before cleaning. 1. Clean the surface • Clean the surface of the unit with a duster or a damp soft cloth. • Do not use chemical solvent like benzene, alcohol, gasoline and etc, or the surface may be damaged.

  • Page 13: Trouble Shooting

    CAUTION: Switch off the unit and unplug it immediately if anything abnormal occurs. Then contact the omega altise Customer Care Line on 1300 739 033. WARNING! Do not attempt to repair the unit yourself. Doing so could void the warranty and...
