Summary of Contents for Bosch EX80

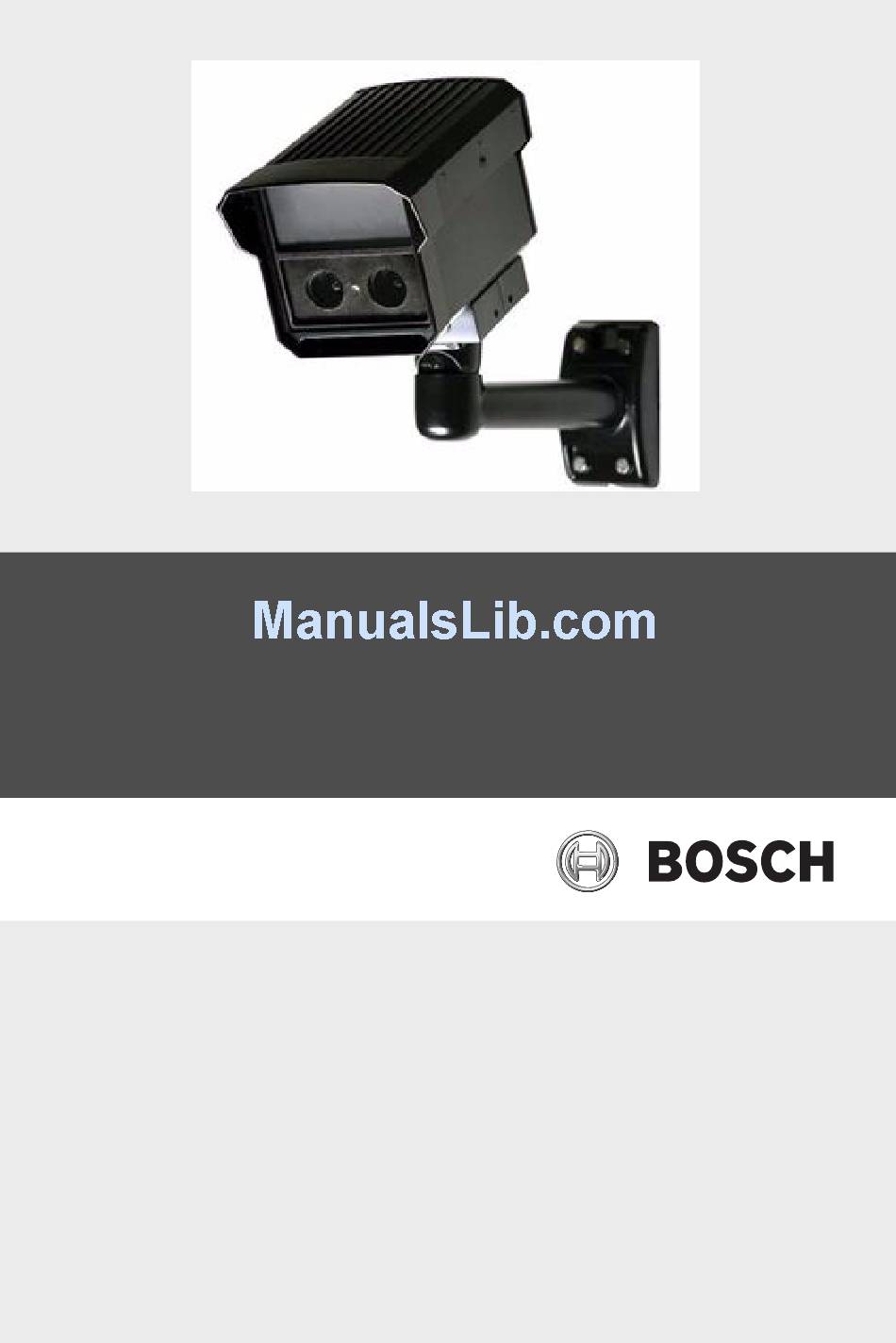

- Page 1 EX80/EX82-IP Infrared Imager EX80/EX82-IP Installation Manual...
-
Page 3: Important Safety Instructions
- the power supply cord or plug is damaged; - liquid has been spilled in or on the equipment; Bosch Security Systems Quick Install MAN80/82IPB Rev.0 | 2008.10... - Page 4 Attachments, changes, or modifications - Only use attachments/accessories specified by the manufacturer. Any change or modification of the equipment, not expressly approved by Bosch, could void the warranty or, in the case of an authorization agreement, authority to operate the equipment.
- Page 5 The full version Installation Manual is available on the enclosed CD-ROM and can be viewed and printed out with Acrobat Reader, which is also on the enclosed CD-ROM. This user guide is the intellectual property of BOSCH Security Systems and is protected by copyright CAUTION! –...
-
Page 6: Initial Preparations
4 en | EX80/82-IP Unpacking Parts list (items supplied with unit) - EX80/82IP Infrared Imager™ Assembly - Installation Instructions booklet - Allen Key - EXMB028B or EXMB028W cable management mounting bracket - Extra window (wide illumination beam) for 4-9mm version only... -
Page 7: Mounting The Unit
Cable / Bracket insertion 1.) Carefully feed the Power and Ethernet cables through both sections of the mounting bracket. 2.) Make sure the cables are not kinked, chafed, or split during this procedure Bosch Security Systems Quick Install MAN80/82IPB Rev.0 | 2008.10... -
Page 8: Mounting Bracket Attachment
The surface must also be capable of supporting the combined weight of the camera and mounting hardware under all expected conditions of vibration and temperature. Camera performs best mounted 3-6m off the ground. 3.) Secure all cabling. MAN80/82IPB Rev.0 | 2008.10 Quick Install Bosch Security Systems... - Page 9 2.) Remove the faceplate, window and the lens foam, set aside. Make sure the photocell is not dislodged. 3.) Perform the proper lens adjustments as per section 2.6 Loosen four bolts Bosch Security Systems Quick Install MAN80/82IPB Rev.0 | 2008.10...
- Page 10 2.) The setscrew marked N ←→ ∞ is used for image focus 3.) The setscrew marked T←→ W is used for telephoto or wide-angle settings. 4.) Re-tighten the setscrews after focus adjustments have been completed. MAN80/82IPB Rev.0 | 2008.10 Quick Install Bosch Security Systems...
-
Page 11: Window Selection
Wider than 18ft / 8m LED array- power adjustments If adjustment is needed, the following procedure must be followed: 1) Remove the rear cover of the camera. Set cover aside. Photocell IR Adjustment Adjustment Pot Bosch Security Systems Quick Install MAN80/82IPB Rev.0 | 2008.10... -
Page 12: Camera Re-Assembly
10 en | EX80/82-IP The EX80/82IP needs to be powered-up while making the LED power adjustments. Cover the photocell to turn the LEDs “ON” (850nm LEDs will have a slight red glow). Adjust the LED power if they are too bright or too dim. For IR power adjustment, rotate VR1. Clockwise... - Page 14 Phone: +65 6319 3450 Telephone +1 888-289-0096 Phone: + 31 40 2577 284 Fax: +65 6319 3499 +1 585-223-9180 Fax: +31 40 2577 330 apr.securitysystems@bosch.com Email: security.sales@us.bosch.com emea.securitysystems@bosch.com www.boschsecurity.com www.boschsecurity.us www.boschsecurity.com © Bosch Security Systems, Inc. 2009; Data subject to change without notice.
