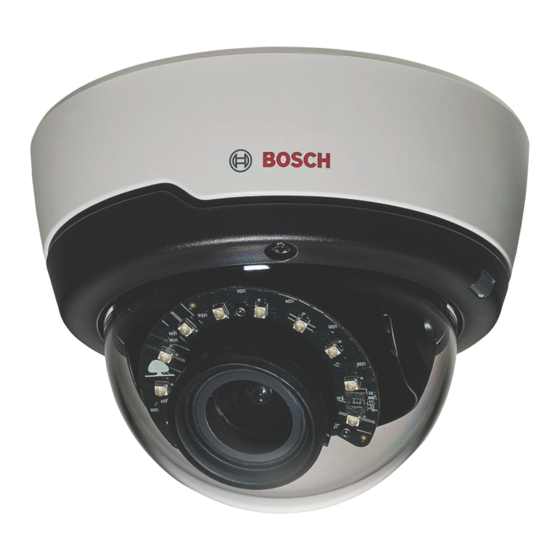

Bosch FLEXIDOME IP indoor 5000 Quick Installation Manual

1
T10
x4
6 x 30
x4
M4
6
12VDC
Ethernet Line-in Line-out
+ - Video 4 3 2 1
SMB
CVBS
connector
NBN-MCSMB
(optional)
8 mm
(0.3 in)
BNC
24-28 AWG
not included
ALARM
4 3 2 1
GND IN OUT OUT
2
x2
IR version
Reset
Menu
microSD card
7
Twist
350°
Pan
2x
Tilt 350°
130°
Do not position light
sensor below edge of
cover (IR only).
3
x4
Ø6 mm
45°
Ø 116 mm
(4.6 in)
180°
x4
8
CVBS
<2s
On
>2s
180°
Menu
<2s
Default
<2s
Focus
- autofocus
<2s
<2s
Zoom (0-6)
>2s
Zoom OK
- autofocus
<2s
Focus & Zoom OK
<2s
<2s
Analog format
>2s
Output OK
4
x4 M4
9
x2
5
12VDC Ethernet Line-in Line-out
+ - Video 4 3 2 1
Line out:
16 Ohm typ.
0.707 Vrms
12 VDC Line in:
10 kOhm typ.
SELV
Class 2 0.707 Vrms
GND
Line
RJ45
Ethernet (PoE)
24-28 AWG
Default: DHCP on
(no DHCP: 192.168.0.1)
7 mm
(0.3 in)
This equipment is only to be connected to PoE networks
without routing to outside plant
