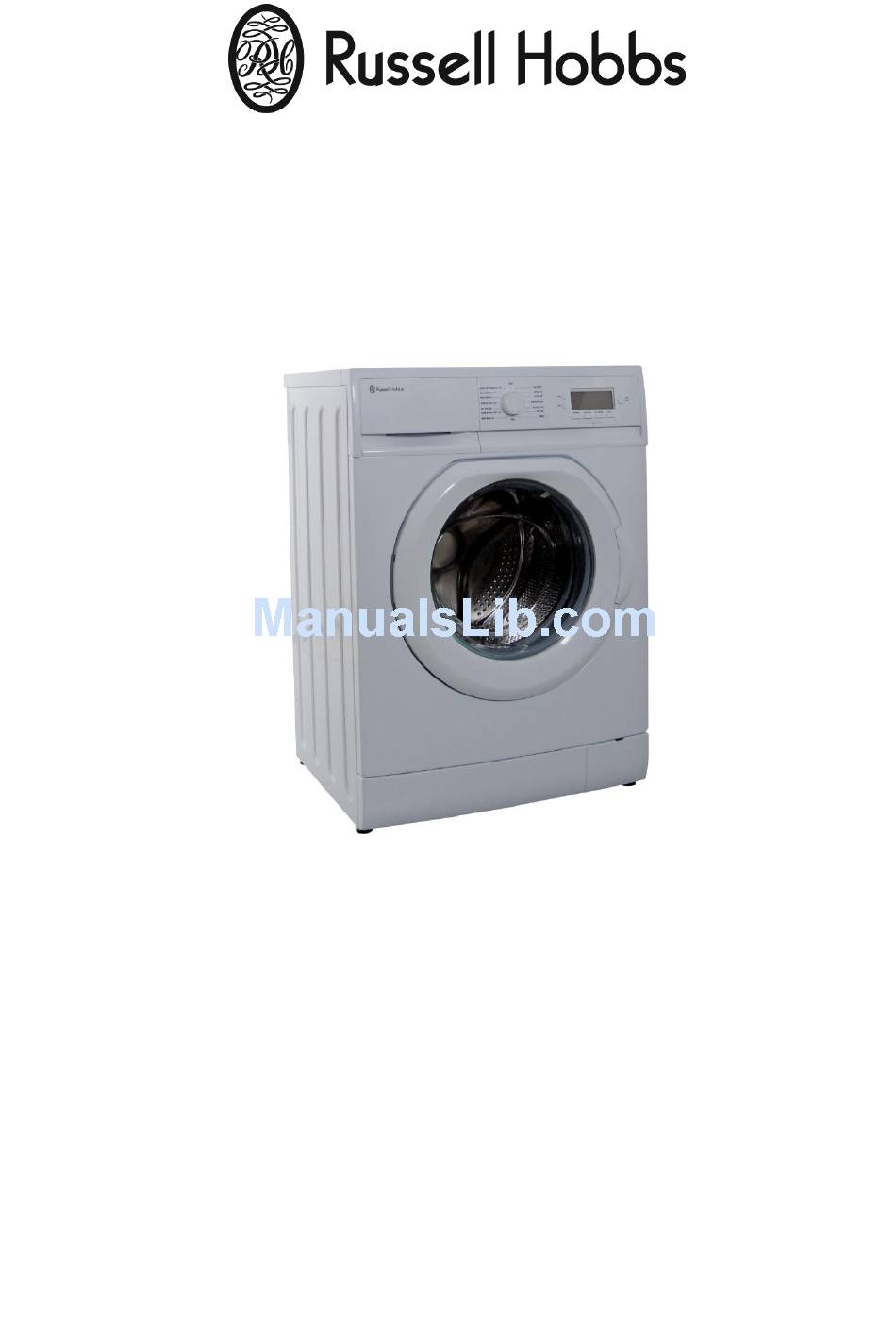

Instruction Manual

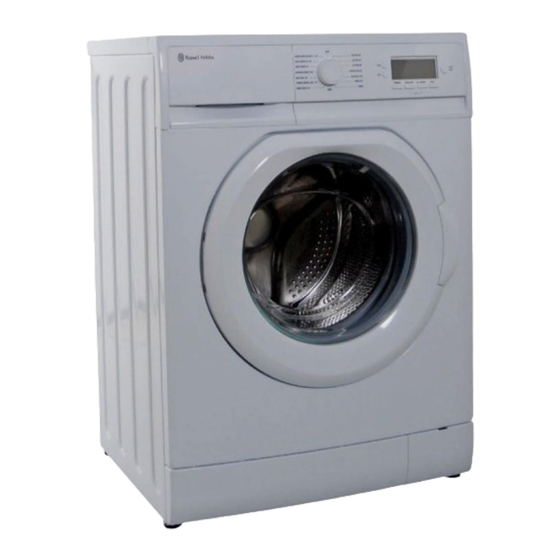

Washing Machine
Model num bers: RH1250TW, RH1250RTG
Please read these instructions carefully and keep them for
future reference.
For Customer Services, Spare Parts &
Manufacturer's Warranty Information, please call
01204 664 084
Opening times: Monday – Friday 9am – 5pm
Saturday: 9am – 1pm
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Russell Hobbs RH1250TW
Summary of Contents for Russell Hobbs RH1250TW
- Page 1 Instruction Manual Washing Machine Model num bers: RH1250TW, RH1250RTG Please read these instructions carefully and keep them for future reference. For Customer Services, Spare Parts & Manufacturer’s Warranty Information, please call 01204 664 084 Opening times: Monday – Friday 9am – 5pm...
-
Page 2: Table Of Contents
Contents Before Use ........................4 Safety Warnings ...................... 4 Recommendations ....................5 Components ....................... 5 Front ........................6 Back ........................6 Installation ........................6 Removing transportation bolts ................7 Levelling the machine ..................... 8 Electrical connection ....................8 Water inlet connection ..................... 8 Technical specifications .................... - Page 3 Error Messages ......................30 Warning symbols ...................... 31 Energy Efficiency ...................... 32...
-
Page 4: Before Use
Before Use Safety Warnings Do not use an extension lead for this appliance. Only plug directly into a wall socket. Do not plug in damaged plug sockets In case the power cable becomes damaged, contact 01204 664 084 for advice. ... -
Page 5: Recommendations
Recommendations Ensure you run the machine empty on a full cycle at 95°C with detergent before using the machine properly for the first time. Put detergent into the drawer at the beginning of each wash. It is recommended that you wash only extremely dirty laundry in prewashing programme. -
Page 6: Components
Components Front 1.Detergent drawer 2.Programme knob 3.Electronic display 4.Door 5.Cover of pump filter Back 6. Transport bolt 7.Power cable 8. Discharging hose 9. Water inlet valve For Customer Services, Spare Parts & Manufacturer's Warranty Information please call 01204 664 084... -
Page 7: Installation
Installation Removing transportation bolts Transportation bolts,which are located at the back of the machine, must be removed before using or running the machine. Loosen the bolts by rotating counterclockwise with a suitable spanner. Pull out the bolts together with the coloured plastic spacer, (the screws that have been removed from the machine should be kept in case the machine needs to be used in future). -
Page 8: Levelling The Machine
Levelling the machine Your machine should be installed on a hard surface – do not install onto a carpet. For your machine to work quietly and without any vibration, it should it be settled on a flat, non-slippery and tough ground. ... -
Page 9: Water Inlet Connection
Water inlet connection Only a qualified engineer should install this machine Your machine has a single water (cold) inlet. To prevent leakages on the connection joints, 1 seal is included in the hose packing, (Fit this seal on the end of the water inlet hose at the tap side.) ... -
Page 10: Technical Specifications
Technical specifications Operating voltage / (220-240) V ~/50Hz frequency (V/Hz) Total current (A) Maximum: 1 Mpa Water pressure (Mpa) Minimum: 0.1 MPa Total power (W) 2200 Maximum dry laundry capacity (kg) Wringing revolution (rev / 1200 min) Programme number Dimensions (Height x Width x Depth) 845 x 597 x 527 (mm) -
Page 11: Preparing Your Laundry
Preparing your laundry Separate your clothes according to their types (cotton, synthetic, sensitive, woolen, etc), washing temperatures, dirtiness and colour. Never wash your white and coloured clothes together. Since your new coloured clothes may shed dye on the first wash, wash them separately. -
Page 12: Using Your Machine
Using your machine Open the door of your machine. Place your laundry in your machine. Note: Maximum loading capacity may vary based on the laundry type you wash, degree of contamination and the programme you have chosen. Do not exceed maximum dry loading capacity indicated in the programme table for washing programmes. -
Page 13: Control Panel
Softeners with a high density should be thinned to a degree before being put in the drawer. This is because high-density softener will clog the flush and avoid the flow of the softener. Control Panel Detergent Drawer For Customer Services, Spare Parts & Manufacturer's Warranty Information please call 01204 664 084 -13-... -
Page 14: Selecting A Programme
Selecting a Programme Select the required washing programme by rotating the programme knob in either direction (clockwise or anti-clockwise). Ensure that the programme knob is aligned with the required programme. Electronic Display 1. Spin speed select 2. Temperature select 3. Prewash function 4. -
Page 15: Using Your Machine
Using your machine Before Use Plug your machine in. Turn on the tap connected to yoour machine. Open the machine door. Place your laundry in your machine. Push the door of your machine until hearing the locking sound to close it. -
Page 16: Twinjet System
Twinjet system Water and detergent from your machine will be circulated with 2 water jnjection mechanisms and a mixing system via a twin jet system. Circulated water will be injected over your washing which allows a better washing performance. The twin jet system will allow you to wash a higher amount of laundery in a shorter time which will guarentee less water and electricity consumption. -
Page 17: Programme Selection
Programme selection MAXIMUM PROGRAMME & PROGRAMME DETERGENT AMOUNT OF PROGRAMME DURATION LAUNDRY TYPE COMPARTMENT TEMPERATURE (°C) (MIN.) LAUNDRY (kg) Very dirty cotton and flax textiles. (Underwear, linen, tablecloth(s), towel(s) COTTON 95° 3:12 (maximum 4 kg), bedclothes, etc. Normal dirty cotton and flax textiles. (Underwear, linen, tablecloth(s), towel(s) COTTON 60°... -
Page 18: Additional Functions
Additional Functions 1. Spin Speed 1. Spin speed selection and additional functions You can set the spin speed for your laundry via the spin speed setting button. When you select a new programme, the maximum spin speed of the programme you have selected will be shown on the electronic display. -
Page 19: Temperature Selection
empty the remaining water and finish the programme once the spin function is complete. b) Switch the programme knob to ‘Stop’, select the spin programme on the programme knob. You can choose to reduce the spin speed by pressing the spin speed setting button. -
Page 20: Rapid Wash
4. Rapid Wash This additional function will enable the washing duration of your less dirty laundry to be shortened. If you put laundry in that only makes up half or less than half of the laundry capacity of the washing programme you have selected in your machine, your machine will automatically detect this due to the ‘Half-load’... -
Page 21: Anti-Allergy Function
- To activate the time delay of the programme you have selected, you should press the “Start/Pause” button and the time delay will start to count down. The time Intervals of the delay timer is 30 minutes for the first 2 hours, thereafter it is 1 hour up to 23 hours. -
Page 22: Adding/Removing Laundry
Adding/Removing Laundry If you want to add or remove laundry when your machine is running: - Switch your machine to the pause mode by pressing on Start/Pause button. - After a while, the symbol will be shown on the electronic diplay and this means that the door of your machine can now be opened. -
Page 23: Cancelling A Programme
The symbol will flash on the electronic display when the child lock is activated. If any button is pressed while the child lock is active, the symbol will blink on the electronic display. When any of the programmes are running and the child lock is active, if another programme is selected after programme knob is switched to the Stop position, the programme already running will continue. -
Page 24: Warning Symbols
- Leave the door of your machine open to allow the inner part of your machine to dry after removing your laundry. - Switch the programme knob to Stop. - Unplug your machine. - Turn the water faucet off. Warning Symbols Water cut off / Low Mains Pressure If the symbol flashes on the electronic display:... -
Page 25: Water Inlet Filters
Maintenance and Cleaning When cleaning your machine, ensure that the machine is unplugged and the water supply is closed off. Water Inlet Filters Filters are used to avoid dirt and foreign substances in the water from entering the machine. These are on the tap and on the ends of water valves along the water inlet hose of your machine. -
Page 26: Cleaning The Pump
Cleaning the pump A filter system is available which avoids threads from your laundry and tiny materials from entering into the pump during the water discharging operation carried out by your machine after completing washing. This prolongs the lifecycle of your pump. It is recommended that you clean your pump filter once in 2 months. -
Page 27: Cleaning The Detergent Drawer
Cleaning the detergent drawer Your detergent may deposit residue in the detergent drawer over time. To clean the residue formed, disassemble the detergent drawer regurlarly. To eject the detergent drawer: Pull the detergent drawer out fully. Continue to pull gently while pressing the detergent cover to allow the drawer to slide out ... -
Page 28: Trouble Shooting
Body Clean the outer body of your machine with warm water and a non-inflammable cleaning agent that will not abrade the body of your machine. After rinsing with some water, dry using a soft and dry cloth. Drum Do not leave metallic objects such as needles, paper clips, coins, etc. in your machine. - Page 29 settled unevenly. recommended and settle the laundry in the machine evenly. Your machine rests on a Prevent your machine from hard surface. resting on hard surfaces. FAULT POSSIBLE CAUSE REMOVING METHODS It is not plugged in. Plug machine in. Fuse blown. Replace the fuse.
-
Page 30: Error Messages
Select the programme The dirtiness of your laundry appropriate for correct dirtiness does not match the programme of your laundry. (see you have chosen. programme table) Adjust the amount of detergent Amount of detergent used based on the dirt level of your insufficient. - Page 31 Warning symbols TROUBLE CODE POSSIBLE WHAT TO DO FAULT - Tap may be off. - Mains water may be cut-off. - If so, switch the programme knob to position 0. You can select a programme and run your machine after the mains water is supplied. - Mains water pressure may be low.
-
Page 32: Energy Efficiency
Energy Efficiency Energy and water consumption may vary based on water pressure, water hardness, water temperature, ambient temperature, laundry amount, additional function selection, and voltage fluctuations. It will reduce energy and water consumption to use your machine with the laundry capacity proposed for the selected programme, wash your less dirty or daily laundry in short programmes, carry out cleaning and maintenance periodically, use your machine at the convenient time intervals specified by electricity vendor. - Page 33 For manufacturer’s warranty information please call 01204 664 084 Opening times: Monday - Friday 9am until 5pm Saturday: 9am – 1pm Alternatively, write to: PO Box 2235, Bolton, BL6 9AJ Revision 1 This symbol is known as the 'Crossed-out wheelie bin Symbol'. W hen this symbol is marked on a product/batteries, it means that the product/batteries should not be disposed of with your general household waste.
