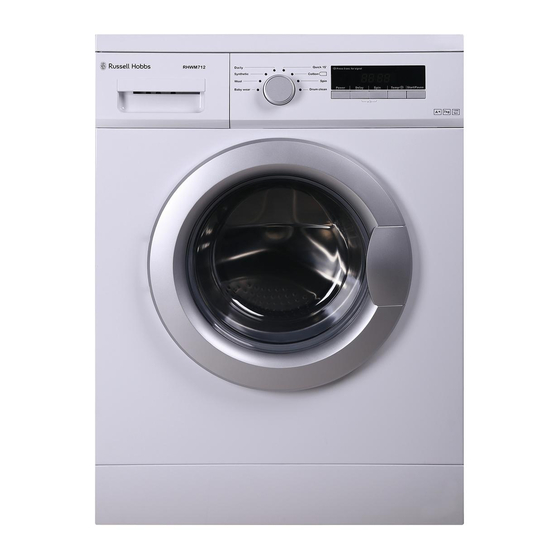

7kg 1200 spin speed washing machine

Advertisement

7KG 1200 Spin Speed Washing Machine

Instruction Manual

Model number:

RHWM712
For Customer Services & Spare Parts please call 0845 208 8750
Opening times: Monday - Friday 8am – 6pm & Saturday 9am – 1pm
www.productcareuk.com
or visit us at
Before using your appliance, please read
this manual carefully and keep it for future
reference.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the RHWM712 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Russell Hobbs RHWM712

  • Page 1: Instruction Manual

    7KG 1200 Spin Speed Washing Machine Instruction Manual Model number: RHWM712 For Customer Services & Spare Parts please call 0845 208 8750 Opening times: Monday - Friday 8am – 6pm & Saturday 9am – 1pm www.productcareuk.com or visit us at...
  • Page 2: Table Of Contents

    Contents Safety Instructions 3 - 4 …………………………………………………… Before using the appliance …………………………………………………… 5 - 6 Installation …………………………………………………… 7 - 11 How to use 12 - 16 …………………………………………………… Control panel …………………………………………………… Care label …………………………………………………… First wash …………………………………………………… Program table …………………………………………………… Program selection ……………………………………………………...
  • Page 3: Safety Instructions

    Safety instructions Important note: Please read this booklet before installing and switching on this appliance. The manufacturer assumes no responsibility for incorrect installation and usage as described in this booklet. • This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and...
  • Page 4 Safety instructions • Your machine is designed to be used domestically. Commercial use will cause your warranty to be cancelled. • Any interference with the appliance, except when carried out by a qualified engineer, will render your warranty invalid. • Ideal operating temperature of your machine is 15-25˚C. •...
  • Page 5: Before Using The Appliance

    Before using your appliance • Transportation screws which are located at the back of the machine, must be removed before using or running the machine. You will void the manufacturer’s guarantee if these are not removed before using or running the machine •...
  • Page 6 Before using your appliance The Back of the machine Water inlet valve Transport bolts Outlet hose Power cable For Customer Services & Spare Parts please call 0845 208 8750 Opening times: Monday - Friday 8am – 6pm & Saturday 9am – 1pm www.productcareuk.com or visit us at...
  • Page 7: Installation

    Installation 1. Before operating the washing machine, remove the 4 transportation screws and rubber spacers from the back of the machine. If the screws are not removed, it may cause heavy vibration, noise and product malfunction (voiding the guarantee). 2. Unscrew the 4 screws with a wrench, spanner or cross-tip screwdriver. Keep the 4 screws as they will need to be re-used if the machine has to be transported.
  • Page 8 Installation 4. Adjust the level of washing machine by the adjustable feet. Please check if there is a gap between the four adjustable feet and the floor. If there is then adjust the level of the washing machine by turning the adjustable feet. Make sure that the machine does not sway and that it is completely level.
  • Page 9 Installation Electrical connection • Your washing machine is set to 220-240V and 50Hz. • The mains cord of your washing machine is equipped with a specific earthed plug. This plug should always be inserted to a earthed socket of 13 amps.
  • Page 10 Installation Ordinary tap (not included) Screw-shaped tap (not included) For Customer Services & Spare Parts please call 0845 208 8750 Opening times: Monday - Friday 8am – 6pm & Saturday 9am – 1pm www.productcareuk.com or visit us at...
  • Page 11 Installation Water drainage • The water outlet hose should be mounted at a height of minimum 60 cm, maximum 100 cm from the ground. • The end of the water outlet hose can be fitted directly to the drainage hole on the back side of the washer. •...
  • Page 12: How To Use

    How to use To obtain the best washing results, you must operate your washer properly. This section gives you this important information. Preparing clothes for washing • Close zippers, snaps, and hooks to avoid snagging on other items. • Remove pin, buckles, and other hard objects to avoid scratching the washer interior.
  • Page 13 How to use Loading clothes for washing • Drop items into the washer loosely. Items should move easily through wash water for the best cleaning and wrinkle-free results. • Load washer properly. • Overloading and selecting a setting too small for the wash load can : •...
  • Page 14 How to use Adding detergent • Please use only the powder detergent for the front loader washing machine. • Please use the correct amount of detergent in conformity with the instruction of the detergent manufacturer. • Using a large amount of detergent, more than the recommended amount, can cause lots of soapsuds and will overload to the motor.
  • Page 15 How to use • Delay ‘Delay’ function can be set with this button, delaying the time by 0 -24 hours. Set the delay function: 1.Select a programme, 2.Press the ‘Delay’ button and select the desired time, 3.Press ‘Start/Pause’ to commence the delay operation. Cancel the ‘Delay’...
  • Page 16 How to use Note: Default washing times can vary due to water pressure and water temperature. The energy class is A+ Energy test program: Cotton 60℃ /40℃ ; Half load for 7.0Kg machine: 3.5Kg. “Cotton” are the standard washing programmes to which the information in the label and the fiche relates, these programmes are suitable to clean normally soiled cotton laundry and that they are the most efficient programmes in terms of combined energy and water consumptions for washing that type of cotton...
  • Page 17: Control Panel

    Control Panel There are 8 types of washing selection functions. Quick 15: 20, 30, 40, 60, 90, Cold Cotton 20, 30, 40, 60, 90, Cold Synthetic: 20, 30, 40, 60, Cold Daily: 20, 30, 40, 60, 90, Cold Wool: 20, 30, 40, Cold, Baby wear: 20, 30, 40, 60, 90, Cold Cold Drum Clean: 90 Spin:...
  • Page 18: First Wash

    First wash Before using the machine for laundry, ensure you run the machine on a cycle of 60/90°C, with detergent and without laundry. Before Use • Ensure the inlet hose is connected correctly and turn the inlet valve from its closed position to the open position. •...
  • Page 19: Program Table

    Note: Default washing times can vary due Program table to water pressure and water temperature. Maximum Default temperature Default time Default spin speed Program Load (kg) (°C) (min) (rpm) Quick 15 Cold Cotton 1200 Spin 1000 Drum Clean Daily 1000 Synthetic Wool Baby wear...
  • Page 20: Program Selection

    Program selection PLEASE NOTE: The main washing procedures depend on the types of the clothes to be washed. Default settings are selected automatically, to select different settings for example Temperature and Spin speed options follow the below, Note: Certain selected programmes will not allow higher temperature and spin options. First , turn the rotary switch to select the desired programme.
  • Page 21: Error Codes

    Error codes Display Description Reason Solution Water injection level Tap is not opened or Open the tap or wait till the • • when washing (water water pressure to the water pressure to the inlet time exceeds 7 property is low. property is back to normal.
  • Page 22: Trouble Shooting

    Trouble shooting All repairs to your machine should be carried out by a qualified engineer or contact Product • Care on 0845 208 8750. Before contacting a qualified engineer or Product Care, please see if the problem your machine • has developed can be solved with the help of the below: Fault Possible cause...
  • Page 23 Trouble shooting Fault Possible cause Removing methods Your appliance does Water tap has been turned off. Turn the faucet on. • • not fill with water. Water inlet hose may be twisted. Check water inlet hose and • • untwist. Water inlet hose clogged.
  • Page 24: Maintenance

    Maintenance The correct care of your washer can extend its life. This section explains how to care for your washer properly and safely. •When cleaning your machine, ensure that the machine is unplugged and the water supply is closed off. Cleaning your Machine Exterior •Wipe up detergent, bleach, and other spills with a soft, damp cloth or...
  • Page 25 Maintenance Non-use or vacation care Operate your washer only when you are at home. If you are on vacation or don’t use your washer for an extended period of time, you should: • Unplug the power supply cord or turn off electrical power to the washer. •...
  • Page 26 Maintenance Cleaning the drain filter •This drain filter is used to screen foreign objects such as threads, coins, pins, buttons etc. •If the drain filter is not cleaned regularly (after every 10 times of use), a drain problem could be caused. CAUTION Be careful when draining, the water could be hot.
  • Page 27 Maintenance Cleaning the detergent case • After a while detergent and fabric softeners leave a deposit in the case; • It should be cleaned from time to time with a jet of running water. If necessary it can be removed completely from the machine by pressing the catch downwards and by pulling it out.
  • Page 28: Removing Stains

    Removing stains Stained, heavily-soiled, or greasy items may need to be prewashed or soaked for best results. Soaking helps remove protein-type stains like blood, milk or grass. Prewashing helps loosen soil before washing. Stain removal rules •Use warm water for soaking or prewashing stained laundry. Hot water can set stains. •...
  • Page 29: Specification

    Specification Model RHWM712 Dimension (mm) (H) 850 X (W) 595 X (D) 495 Maximum mass of dry clothes (kg) Unit Weight (kg) Water pressure (Mpa) Maximum: 1Mpa Minimum: 0.5Mpa Spin Speed (RPM) 1200 Max. Current Rated Power 2050w Operating voltage / frequency...
  • Page 30: Connection To The Mains Supply

    Connection to the mains supply For UK use only – Plug fitting details (where applicable): As the colours of the wires in the mains lead of this appliance may not correspond with the coloured markings identifying the terminals in your plug, proceed as follows: The GREEN/YELLOW wire is the EARTH and must be connected to the terminal which is marked with the letter E or by the earth symbol or coloured...
  • Page 31: Warranty

    Warranty This product is guaranteed for 12 months from the date of the original purchase. If any defect arises due to faulty materials or workmanship the faulty product must be returned to the place of purchase. Refund or replacement is at the discretion of the retailer. The following conditions apply: The product must be returned to the retailer with the original proof of •...
  • Page 32: Product Fiche

    Product Fiche: Brand: Russell Hobbs Model: RHWM712 Rated capacity:7kg Energy efficiency class: A+ EU Eco label: N/A Energy consumption 224kwh per year, based on 220 standard washing cycles for cotton programmes at 60°C and 40°C at full and partial load, and the consumption of the low-power modes.
  • Page 33: Product Fiche

    Product Fiche Notes: 1. Programme setting for testing in accordance with applicable standard EN60456- 2011. 2. When using the test programmes, wash the specified load using the maximum spin speed. 3.The actual parameters will depend on how the appliance is used, and maybe different with the parameters in above mentioned table.
  • Page 34: Notes

    Notes: For Customer Services & Spare Parts please call 0845 208 8750 Opening times: Monday - Friday 8am – 6pm & Saturday 9am – 1pm www.productcareuk.com or visit us at...
  • Page 35 Notes: For Customer Services & Spare Parts please call 0845 208 8750 Opening times: Monday - Friday 8am – 6pm & Saturday 9am – 1pm www.productcareuk.com or visit us at...
  • Page 36 For Customer Services & Spare Parts please call 0845 208 8750 Opening times: Monday – Friday 8am – 6pm & Saturday 9am – 1pm or visit us at www.productcareuk.com Revision 4 This symbol is known as the 'Crossed-out wheelie bin Symbol'. When this symbol is marked on a product/batteries, it means that the product/batteries should not be disposed of with your general household waste.
