Operating Manual
WASHING MACHINE
CLEAN DRAWER
Remove & wash the drawer with
Hot water at least once a month.
CLEAN DRUM
Wipe the drum and seals
with white vinegar.
1
REGISTER YOUR
APPLIANCE FOR
FREE TODAY
MONTH
11 SERIES
RH814WM111W
RH814WM111B

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 11 Series and is the answer not in the manual?

Questions and answers

Theresa Cryans
February 4, 2025

Is the left larger section , section 1as per manual 11series?

User image 67a1e7e190c2e
1 comments:
Mr. Anderson
February 10, 2025

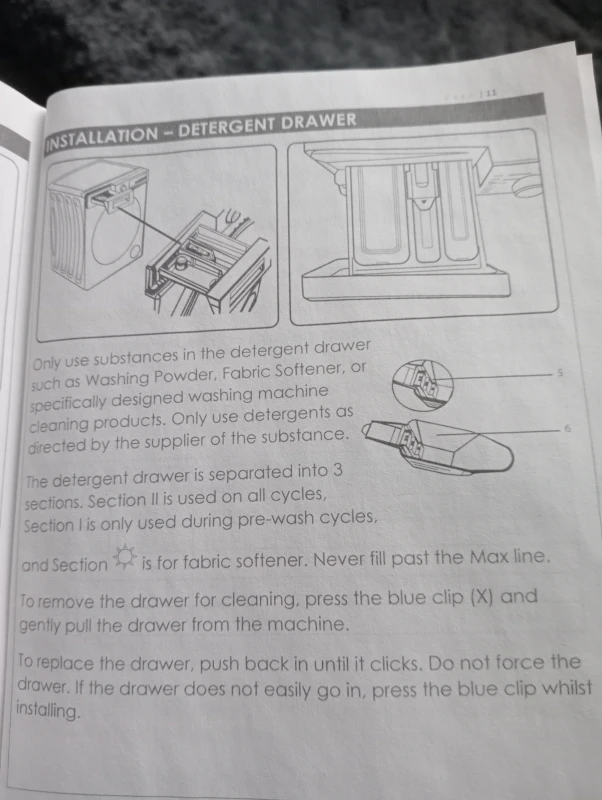

The manual states that the detergent drawer is separated into three sections: Section II is used on all cycles, Section I is only used during pre-wash cycles, and another section is for fabric softener. However, it does not specify the physical placement of these sections within the drawer. Therefore, it cannot be determined if the left larger section is Section I.

This answer is automatically generated

Subscribe to Our Youtube Channel

Summary of Contents for Russell Hobbs 11 Series

  • Page 1 11 SERIES RH814WM111W Operating Manual RH814WM111B WASHING MACHINE REGISTER YOUR CLEAN DRAWER Remove & wash the drawer with APPLIANCE FOR Hot water at least once a month. FREE TODAY CLEAN DRUM Wipe the drum and seals MONTH with white vinegar.
  • Page 2: Guarantee

    P a g e GUARANTEE At Russell Hobbs, we take all our customer feedback seriously. 0345 208 8750 Feel free to contact our Product Care Team, on who will be more than happy to assist you. This product is guaranteed for 12 months from the date of the original purchase.
  • Page 3: Table Of Contents

    Installation - Water Inlet Installation – Water Discharge Installation - Detergent Drawer Installation - Stacking Drain Pump Filter Functions & Buttons First Time Use Operation Cleaning & Care Washing Symbols Programs & Times Problem Solving Technical Specification 11 Series Washing Machines Revision 1.6...
  • Page 4: Safety Instructions

    • Do not open the detergent drawer during operation. • Do not open the door with water still in the appliance. • Keep the appliance and plug away from water; do not allow it to get wet. 11 Series Washing Machines Revision 1.6...
  • Page 5 ALWAYS ventilate and hand wash at least 24 hours prior. ALWAYS remove transport bolts prior to first use; any • damaged caused by failure to remove bolts will void your guarantee. 11 Series Washing Machines Revision 1.6...
  • Page 6: Installation - Transportation

    Using a 10mm spanner, turn the bolts counter clockwise until they come loose from the white plug stoppers. Once removed, either by hand or using plyers, remove the white plugs also. Add the 4 blanking caps supplied into the holes left by the bolts. 11 Series Washing Machines Revision 1.6...
  • Page 7: Installation - Levelling

    Once you know the level of the appliance, slightly tilt the appliance at the required corner and using a 30mm spanner, rotate the desired foot in an anti-clockwise motion. Ensure levels are checked regularly during this stage. 11 Series Washing Machines Revision 1.6...
  • Page 8: Installation - Location

    DO NOT install on carpet, or any other surface which would reduce ventilation around the appliance. ALWAYS leave adequate space around the appliance for ventilation (5cm on the sides, 10cm on the rear). 11 Series Washing Machines Revision 1.6...
  • Page 9: Installation - Water Inlet

    ONLY use the included water inlet hose (Fig.1), or one sourced directly from the manufacturer. Your appliance is supplied with a water seal. Ensure this is installed at the tap end (Fig.4) Ensure the hose is free from kinks, folds and twists after installation. 11 Series Washing Machines Revision 1.6...
  • Page 10: Installation - Water Discharge

    The discharge pipe MUST be mounted a minimum of 60cm from the ground, and a maximum of 100cm. Ensure the discharge pipe is free from kinks, folds and twists. 11 Series Washing Machines Revision 1.6...
  • Page 11: Installation - Detergent Drawer

    To replace the drawer, push back in until it clicks. Do not force the drawer. If the drawer does not easily go in, press the blue clip whilst installing. 11 Series Washing Machines Revision 1.6...
  • Page 12: Installation - Stacking

    ALWAYS use a stacking kit/fixing kit when stacking appliances ENSURE the floor underneath the stack can bear a weight of at least 150kg ALWAYS review the below table to ensure sizes of the appliance are appropriate 11 Series Washing Machines Revision 1.6...
  • Page 13: Drain Pump Filter

    Turn the filter anti-clockwise and remove the filter, water will drain out. Remove any foreign materials and/or lint with a soft brush, then replace the filter by inserting and rotating clockwise. Replace the filter cover by gently pushing into position. 11 Series Washing Machines Revision 1.6...
  • Page 14: Functions & Buttons

    MUST turn the programme dial to the ‘SPIN/DRAIN’ programme, which will begin the drainage cycle and cancel the previous programme. In the event of a power cut, we recommend selecting ‘SPIN/DRAIN’ before running any other programme or opening the door. 11 Series Washing Machines Revision 1.6...
  • Page 15: First Time Use

    Once complete, your appliance is ready to use. We recommend you always leave the door open after any kind of cycle to allow the appliance to fully dry and prevent build-up of mould. 11 Series Washing Machines Revision 1.6...
  • Page 16: Operation

    - If you have NOT pressed the Start/Pause button, continue to press the Delay button until the clock symbol clears from the display. Once you have selected the desired programme, temperature, spin speed, press the Start/Pause button to begin the cycle. 11 Series Washing Machines Revision 1.6...
  • Page 17 | 17 CLEAN THE MACHINE CLEAN DRAWER ALWAYS LEAVE Wash the drawer with hot water at least once a month. DOOR ADJAR CLEAN DRUM AFTER CYCLE Wipe the drum and seals MONTH with white vinegar. 11 Series Washing Machines Revision 1.6...
  • Page 18 | 18 CLEAN THE MACHINE CLEAN DRAWER ALWAYS LEAVE Wash the drawer with hot water at least once a month. DOOR ADJAR CLEAN DRUM AFTER CYCLE Wipe the drum and seals MONTH with white vinegar. 11 Series Washing Machines Revision 1.6...
  • Page 19: Washing Symbols

    • Always check the maximum load weight for specific programs listed in the program guide. Below are some typical item weights (for guidance only): Towel 200g Bed Linen 500g Pillow Case 200g Underwear 100g T-Shirt 150g Jeans 650g 11 Series Washing Machines Revision 1.6...
  • Page 20 A normal wash at 60°C but in a Fast 60' 60°C shorter time Dark items. Wash inside out. Jeans Caution: Dyes may run *Programme duration may adjust based on weight of laundry, water temperature, ambient temperature, and selected function 11 Series Washing Machines Revision 1.6...
  • Page 21 **If washing towels, ensure only 50% Dry Load Capacity is used to prevent damage to the drum. ***Due to short cycle, use less detergent to prevent excess residue Times and energy consumption will vary by load 11 Series Washing Machines Revision 1.6...
  • Page 22: Problem Solving

    Door does not • Allow 2-5 minutes after the end of a cycle open • Run a Spin/Drain cycle • Never force the door – contact customer services 11 Series Washing Machines Revision 1.6...
  • Page 23 Pump fault/pump Clean the pump filter. If the problem filter clogged persists, contact customer services. Machine will automatically drain the Excess water water. Once drained, turn off the tap detected and contact customer services. 11 Series Washing Machines Revision 1.6...
  • Page 24: Technical Specification

    8kg - 84.5 x 59.7 x 52.7cm Inlet Hose Length 200cm Drain Hose Length 160cm Power Cord Length 150cm Drum Volume 6kg – 44.0L 8kg - 51.6L Optimal Ambient Temperature 15-25°C Range Water Pressure (Min.) 0.1Mpa Water Pressure (Max.) 1Mpa 11 Series Washing Machines Revision 1.6...
  • Page 25 P a g e | 25 Notes 11 Series Washing Machines Revision 1.6...
  • Page 26 P a g e | 26 Notes 11 Series Washing Machines Revision 1.6...
  • Page 27 REGISTER REGISTER ONLINE BY PHONE Visit our website to Call our friendly Product Care team. register your full parts and labour guarantee online. mda.russellhobbs.com 0345 209 7461 11 Series Washing Machines Revision 1.6...
  • Page 28 Made by Product Care Trading Limited under license from Spectrum Brands (UK) Limited. Product Care Trading Limited, Wigan, WN2 4AY/ PCT (NI) Ltd, Belfast, BT5 5AD. Russell Hobbs is the registered trademark of Spectrum Brands (UK) Ltd. Russell Hobbs Support: call 0345 209 7461 or visit mda.russellhobbs.com...
