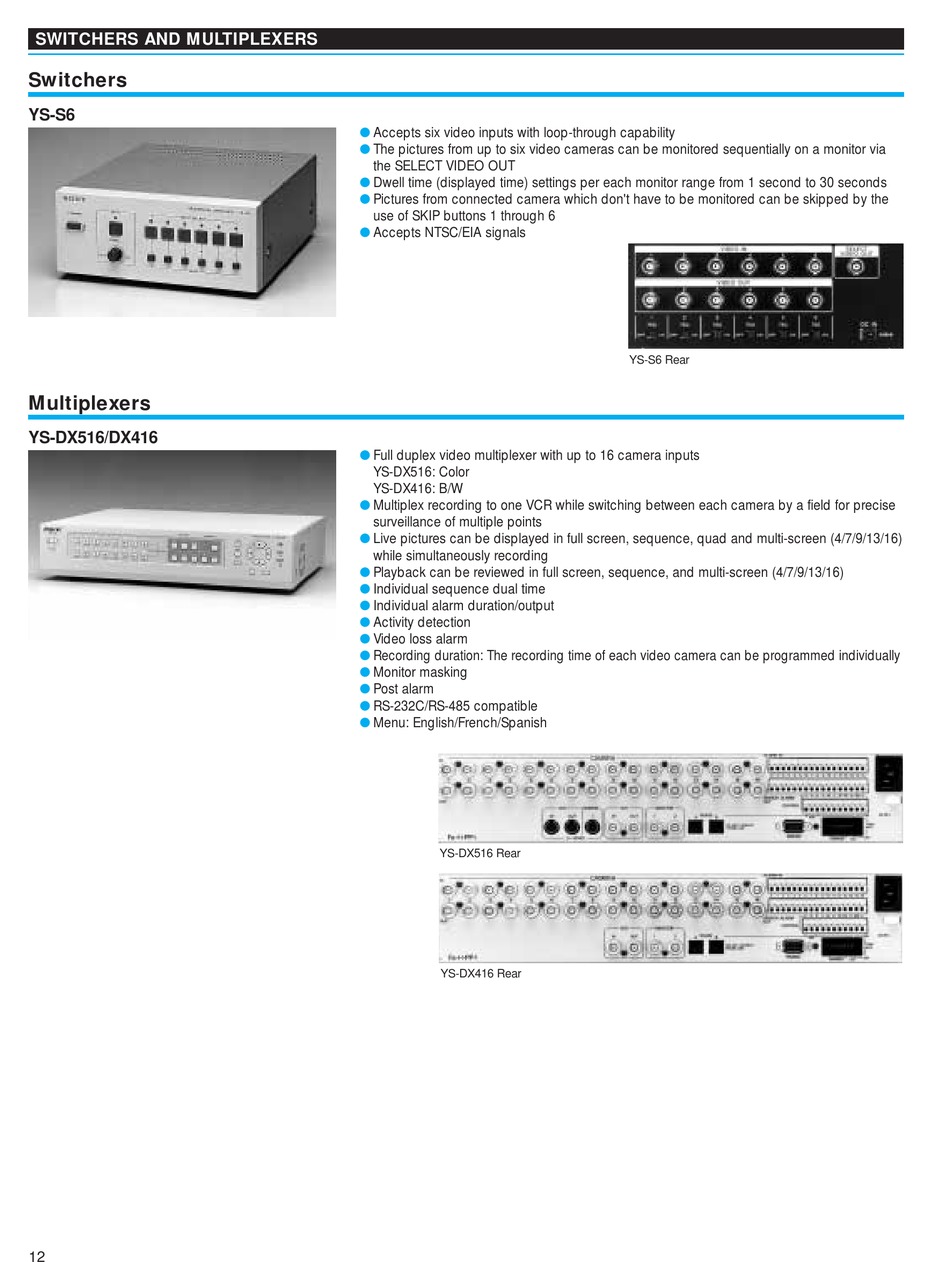

SWITCHERS AND MULTIPLEXERS

Switchers

YS-S6

Multiplexers

YS-Q440
YS-DX516/DX416
†Not available in USA
12
Accepts six video inputs with loop-through capability
The pictures from up to six video cameras can be monitored sequentially on a monitor via
the SELECT VIDEO OUT
Dwell time (displayed time) settings per each monitor range from 1 second to 30 seconds
Pictures from connected camera which don't have to be monitored can be skipped by the
use of SKIP buttons 1 through 6
Accepts NTSC/EIA signals
High performance Quad Image Splitter with an auto sequential switcher
Full duplex video multiplexer with up to 16 camera inputs
Automatic switching between up to four cameras can also be performed on a monitor and
YS-DX516: Color
the Switching interval can be selected in one-second increments from 1 to 30 seconds
YS-DX416: B/W
8-bit signal processing and four field memories provide high picture quality compressed
Multiplex recording to one VCR while switching between each camera by a field for precise
images
surveillance of multiple points
Freeze picture function (Quad mode only)
Live pictures can be displayed in full screen, sequence, quad and multi-screen (4/7/9/13/16)
Alarm function
while simultaneously recording
Video loss detection
Playback can be reviewed in full screen, sequence, and multi-screen (4/7/9/13/16)
RS-232 remote control port
Individual sequence dual time
Individual alarm duration/output
Activity detection
Video loss alarm
Recording duration: The recording time of each video camera can be programmed individually
YS-Q440 Rear
Monitor masking
Post alarm
RS-232C/RS-485 compatible
Menu: English/French/Spanish
YS-DX516 Rear
YS-DX416 Rear
YS-S6 Rear
