Enviro DV36 Owner's Manual

Enviro DV36 Owner's Manual

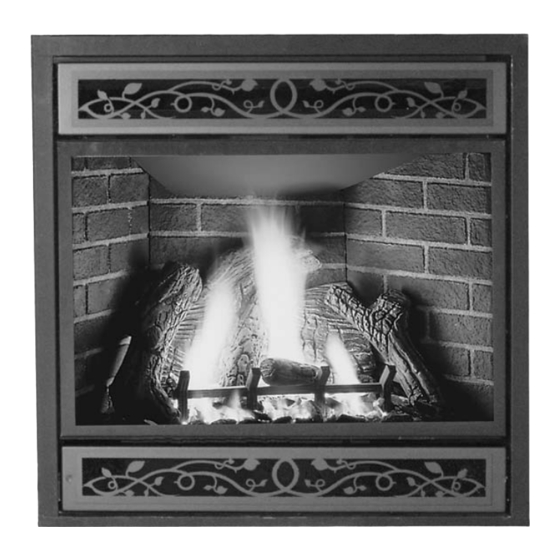

Direct vent fireplace
Hide thumbs Also See for DV36:

Advertisement

SHERWOOD INDUSTRIES IS AN ENVIRONMENTALLY RESPONSIBLE COMPANY. THIS MANUAL IS PRINTED ON RECYCLED PAPER.
PLEASE KEEP THESE INSTRUCTIONS FOR FUTURE REFERENCE
OWNER'S MANUAL
INSTALLER:
Leave this manual with the appliance.
CONSUMER:
Retain this manual for future reference.
WHAT TO DO IF YOU SMELL GAS
• Open windows/extinguish any open
flame.
• Do not try to light any appliance.
• Do not touch any electrical switch
or use any phone in your building.
• Immediately call your gas supplier
from a neighbour's phone. Follow
the gas supplier's instructions.
• If you cannot reach your gas
supplier, call the fire department.
FOR YOUR SAFETY: Do not store or use gasoline or
other flammable vapours and liquids in the vicinity of
this or any other appliance.
WARNING:
If the information in this manual is
not followed exactly, a fire or explosion may result
causing property damage, personal injury or loss of
life. Installation and service must be performed by a
qualified installer, service agency or the gas supplier.
Massachusetts installations (Warning): This product must be installed by a licensed plumber or
gas fitter when installed within the Commonwealth of Massachusetts. Other Massachusetts code
requirements: Flexible connector must not be longer than 36in., a shut off valve must be installed;
only direct vent sealed combustion products are approved for bedrooms/bathrooms. A carbon
monoxide detector is required in all rooms containing gas fired direct vent appliances. The fireplace
damper must be removed or welded in the open position prior to installation of a fireplace insert.
DV36
D I R E C T V E N T F I R E P L A C E
B Y : S H E R W O O D I N D U S T R I E S L T D
This appliance may be installed in an
after-market permanently located,
manufactured (mobile) home,
where not prohibited by local codes.
This appliance is only for use with
the type of gas indicated on the
rating plate. This appliance is not
convertible for use with other gases,
unless a certified kit is used.
50-927

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DV36 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Enviro DV36

  • Page 1 SHERWOOD INDUSTRIES IS AN ENVIRONMENTALLY RESPONSIBLE COMPANY. THIS MANUAL IS PRINTED ON RECYCLED PAPER. DV36 PLEASE KEEP THESE INSTRUCTIONS FOR FUTURE REFERENCE D I R E C T V E N T F I R E P L A C E B Y : S H E R W O O D I N D U S T R I E S L T D OWNER’S MANUAL...
  • Page 2: Safety Precautions

    Safety Precautions FOR SAFE INSTALLATION AND OPERATION OF YOUR “ENVIRO” HEATER, PLEASE CAREFULLY READ THE FOLLOWING INFORMATION: • All ENVIRO gas-fired appliances must be installed • To prevent injury, do not allow anyone who is in accordance with their instructions. Carefully read all unfamiliar with the stove to operate it.
  • Page 3: Table Of Contents

    Table of Contents Safety Precautions......................2 Table of Contents......................3 Codes And Approvals....................4 Specifications......................5 Dimensions.....................5 Rating Label Location..................5 Operating Instructions....................6 Pilot Lighting Instructions...................6 Pilot Light......................7 Air Shutter......................7 Remote Controls....................7 Burner Lighting....................8 Blower Speed (Optional)..................8 Normal Sounds During Operation................8 Maintenance And Service....................9 Routine Maintenance..................9 Cleaning The Glass....................9 Cleaning The Firebox..................9 Replacing the Glass...................9...
  • Page 4: Codes And Approvals

    After the unit has gone through the first burn, turn the unit off including the pilot, let the unit get cold then remove the glass door and clean it with a good gas fireplace glass cleaner, available at your local ENVIRO dealer.
  • Page 5: Specifications

    Specifications INSTALLATION OPTIONS: • Parallel to a wall or placed in a corner • With a floor hearth or raised up the wall • Vertical or horizontal venting WARNING: Operation of this heater when not connected to a properly installed and maintained venting system can result in carbon monoxide (CO) poisoning and possible death.
  • Page 6: Operating Instructions

    Operating Instructions For Your Safety, Read Safety Precautions And Lighting Instructions Before Operating WARNING: IF YOU DO NOT FOLLOW THESE INSTRUCTIONS EXACTLY A FIRE OR EXPLOSION MAY RESULT, CAUSING PROPERTY DAMAGE, PERSONAL INJURY OF LOSS OF LIFE. iLot ighting nstRuctions CAUTION: Hot while operating.
  • Page 7: Pilot Light

    Operating Instructions iLot ight 1. Turn off the gas to the fireplace. If not recently done, remove the glass and let the unit air out for at least five (5) minutes to clear out any gas. Turn on gas to the heater. Leak test all joints with soapy water.
  • Page 8: Burner Lighting

    After the unit has gone through the first burn, turn the unit OFF, including the pilot, and let the unit get completely cold. Then remove the glass and clean it with a good gas fireplace glass cleaner, available at your local Enviro dealer. See “M aintenance...
  • Page 9: Maintenance And Service

    Do not operate with the glass front removed, cracked or broken. Removal and replacement of the glass from the door must be done by a licensed or qualified service person. The glass must be purchased from an ENVIRO dealer. No substitute materials are allowed.
  • Page 10: Glass Door Removal

    Maintenance And Service Leaning ecoRative uRFaces Painted and porcelain faces should be wiped with a damp cloth periodically. If a plated face has been purchased, it should be unpacked/unwrapped carefully to avoid getting anything on the surface of the finish, including cleaners, polish and finger prints. It is important to note that fingerprints and other marks can leave a permanent stain on plated finishes.
  • Page 11: Burner Removal

    Maintenance And Service uRneR emovaL The burner may need to be removed for a few reasons, including cleaning under the burner, converting the unit to a different gas type, or to replace the burner altogether. Proceed only when the unit has completely cooled down.
  • Page 12 Maintenance And Service Conversion Kit Installation: Turn control knob on the gas valve to the “OFF” position and shut the gas supply off at the shut-off valve upstream of the unit. CAUTION: The gas supply must be shut off prior to disconnecting the electrical power and before proceeding with the conversion.
  • Page 13 Maintenance And Service Red o-ring Red o-ring is visible is not visible g) Re-attach the black protection cap that was removed in step a (Figure 10). LPG Configuration Figure 13: O-ring on valve screw. Reinstall the burner, brick panels, log set, embers, and glass door. Also refer to S econdary nStallation...
  • Page 14: Initial Installation

    There are several installation safety guidelines that must be adhered to. Please carefully read the safety precautions at the front of this manual. NOTE: The DV36 comes as a rear vent unit but can be converted to top vent. Warning: Clearances must be sufficient to allow access for maintenance and service.
  • Page 15: Framing Mount Brackets

    Initial Installation QUALIFIED INSTALLERS ONLY Raming ount Rackets Mount the two framing mount brackets on each side and secure the fireplace to framing with screws or nails (refer to Figure 16). The brackets will allow for a ½” (13 mm), ⅝” (16 mm), ¾” (19 mm) thick finishing wall.
  • Page 16: Mantel Clearances

    Initial Installation QUALIFIED INSTALLERS ONLY To Ceiling Even though the DV36 can be installed at floor 37” level without a hearth, there are a few options with raised fireplaces: raised with a floor level hearth (Figures 19), raised with a raised hearth (Figures 20), or raised with no hearth (Figures 21).
  • Page 17: Vent Termination Restrictions

    Initial Installation QUALIFIED INSTALLERS ONLY eRmination estRictions Fixed Closed Fixed Openable Closed Openable Termination Cap Air Supply Inlet Gas Meter Restriction Zone (Termination not allowed) Figure 24. Vent Termination Restrictions, refer to Table 4. Table 4: Vent termination clearances, refer to Figure 24. Letter Canadian Installation US Installation...
  • Page 19 Initial Installation QUALIFIED INSTALLERS ONLY 50-1235: iRePLace oRizontaL Please read and understand these instructions before installing. Failure to follow these instructions carefully could cause property damage or personal injury. The Fireplace Horizontal Vent Kit can be installed on the unit as rear vent or top vent. KIT COMPONENTS: Qnty Description...
  • Page 20: Other Approved Vent Parts

    Direct Vent GS 4” - 6 5/8” The DV36 fireplace has been tested and certified for use with AMERICAN METAL PRODUCTS “AMERIVENT DIRECT”, SIMPSON DURAVENT TYPE GS PIPE FOR GAS STOVES. SECURITY CHIMNEY’S “SECURE VENT DIRECT VENT SYSTEM” and SELKIRK “DIRECT-TEMP VENT SYSTEM” kits are available for horizontal and vertical venting.
  • Page 21: Vertical Termination

    Initial Installation QUALIFIED INSTALLERS ONLY EXCEPTION TO WARNING: This product has been evaluated by Intertek for using a Direct Vent GS starting collar in conjunction with Secure Vent, Direct-Temp, and Ameri Vent Direct venting systems. Use of these systems with the Direct Vent GS starting collar is deemed acceptable and does not affect the Intertek WH listing of the appliance.
  • Page 22 Initial Installation QUALIFIED INSTALLERS ONLY enting This fireplace has been tested and certified for use with SIMPSON DURAVENT DIRECT VENT TYPE “GS” PIPE FOR GAS STOVES, SECURITY CHIMNEY’S SECURE VENT DIRECT VENT SYSTEM kits, AMERICAN METAL PRODUCTS AMERIVENT DIRECT and DIRECT-TEMP SELKIRK METALBESTOS. A 1”...
  • Page 23 Initial Installation QUALIFIED INSTALLERS ONLY onFiguRations anD estRictoR ettings Figures 31 shows the range of venting options, it shows possible vent configurations if the unit is top vented, for vertical and horizontal terminations, any layout that remains within the shaded area is acceptable.
  • Page 24 Initial Installation QUALIFIED INSTALLERS ONLY oRizontaL eRmination NOTES: 1. Horizontal pipes must not be level. For every 12 inches (305 mm) of horizontal travel (away from the stove), there should be at least ¼ inch (6.4 mm) of vertical travel. Never allow the vent to run downward, as this could cause high temperatures or even present the possibility of a fire.
  • Page 25 Initial Installation QUALIFIED INSTALLERS ONLY NOTE: For Simpson Duravent only, place a bead of Mil-Pac or Rutland No 78 Stove and Gasket Cement on the outer edge of the inner exhaust pipe (non-flared end). Push the pipe sections together, then twist about ¼...
  • Page 26 Initial Installation QUALIFIED INSTALLERS ONLY STEP 5. Cut hole in the roof centered on the small hole placed in the roof from Step 2. The hole should be of sufficient size to meet minimum requirements for Clearance to Combustibles, as specified. Continue to assemble lengths of pipe and elbows necessary to reach from the ceiling support box up through the roof line.
  • Page 27 Initial Installation QUALIFIED INSTALLERS ONLY NOTES: (1) If an offset is necessary in the attic to avoid obstructions, it is important to support the vent pipe every 3 feet (914 mm), to avoid excessive stress on the elbows, and possible separation. Wall straps are available for this purpose (see Figure plumber’s tape 36).
  • Page 28: Installation Of Electrical Wiring For The Optional Fan Kit

    CSA C22.1 Canadian Electrical Code Part 1, Safety Standards For Electrical Installations, or The Current National Electrical Code ANSI / NFPA 70 in the US. Figure 38. Install Electrical Outlet Into DV36. LectRicaL ystem heRmostat CAUTION: Label all wires prior to disconnection when servicing controls. Wiring errors can cause improper and dangerous operation.
  • Page 29: Gas Line Connection And Testing

    Initial Installation onnection anD esting WARNING: Only persons licensed to work with gas piping may make the necessary gas connections to this appliance. GAS LINE CONNECTION • This stove is equipped with a certified flexible pipe located on the right side of the unit terminating in a ⅜”...
  • Page 30: Secondary Installation

    Secondary Installation et anD mbeR nstaLLation The placement of the logs is not arbitrary. If they are positioned incorrectly, the flames can be “pinched” and will not burn correctly. The burner (shown in Figure 41), and a few of the logs come with locator pins, notches and ledges, which make alignment easier.
  • Page 31 Secondary Installation Figure 44: The right log has two (2) holes in it that will rest over the two (2) locator pins pointed out in Figure 43. Figure 44. Third Stage Log Set Installation. Figure 45: The front end of the right/center log has a notch in it that is to rest around the right/center post of the grate.
  • Page 32 A small amount on the bottom side of the logs is normal. Remove and replace the logs in the same manner described above. If new/more embers and rock wool are required, contact your nearest ENVIRO dealer. Never operate the fireplace with the glass door removed.
  • Page 33 Secondary Installation PtionaL eRamic Rick aneL nstaLLation Turn off the gas control knob and allow the unit to cool. Baffle Please ensure that your ceramic panels have not been damaged. To Install Panels: 1. Remove the glass door by following the instruction in the “S econdary nStallation...
  • Page 34: Optional Fan Kit Installation

    (2) T-20 torx screws. Please ensure that your fan kit has not been damaged. If so, contact your dealer, distributor, or courier company before starting this installation. Figure 54. Placing Fan Kit Into DV36...
  • Page 35 Secondary Installation Slots to go over grommets Grommets Figure 55. Hook Fan Tabs Over Grommets at Unit Back. Installation of Kit: 1. Ensure the appliance is turned off and cool. 2. Remove the bottom louvers. 3. Place fan in lower area of unit behind the controls (see Figure 54). 4.
  • Page 36: Trouble Shooting

    Trouble Shooting Problem Possible Cause Solution The main burner does not The gas valve may not be on. • Check that the gas control knob is in the “ON” position. ignite when called for. Thermostat is not calling for • Adjust the thermostat several degrees above ambient heat.
  • Page 37: Parts List

    S.I.T. Piezo Ignitor EC-023 Fan Controller - 115V EC-039 Convection Blower - 115V EC-069 SIT Pilot ⅛” Tube with End Furrels (1 piece) 30-043 Enviro Logo Gel Decal 50-322 Blank Orifice #73 50-343 Embers 50-491 On/Off Remote Control Kit 50-559...
  • Page 38: Parts List - Options

    Parts List - Options Reference Part Description Part Number Number Brick Panels (set of 3) 50-926 Louvre Set - Brushed Antique Copper (set of 2) 50-951 Louvre Set - Brushed Nickel (set of 2) 50-952 Louvre Set - Gold (set of 2) 50-953 Fan Kit 50-954...
  • Page 39: Parts Diagram

    Parts Diagram...
  • Page 40: Warranty

    Industries, our commitment to the highest level of quality and customer service is the most important thing we do. Each Enviro stove is built on a tradition of using only the finest materials and is backed by our Exclusive Lifetime Limited Warranty to the original purchaser. With Enviro, you’re not just buying a fireplace or stove, you’re buying a company with years of unequalled performance and quality.
  • Page 41 The use of such products may nullify the Limited Warranty on this stove. If unsure as to the extent of this Limited Warranty, contact your authorized Enviro dealer before installation. 10. Sherwood Industries Ltd. will not be responsible for inadequate performance caused by environmental conditions.
  • Page 42 If the stove is used for commercial purposes, it is excluded from the Limited Warranty. 24. No dealer, distributor, or similar person has the authority to represent or warrant Enviro products beyond the terms contained within the Limited Warranty. Sherwood Industries Ltd. assumes no liability for such warranties or representations.
  • Page 43: Installation Data Sheet

    Installation Data Sheet The following information must be recorded by the installer for warranty purposes and future reference. NAME OF OWNER: NAME OF DEALER: _________________________________________ _________________________________________ ADDRESS: ADDRESS: _________________________________________ _________________________________________ _________________________________________ _________________________________________ _________________________________________ _________________________________________ PHONE:___________________________________ PHONE:___________________________________ MODEL:___________________________________ NAME OF INSTALLER: SERIAL NUMBER:___________________________ _________________________________________ DATE OF PURCHASE: _____________...
